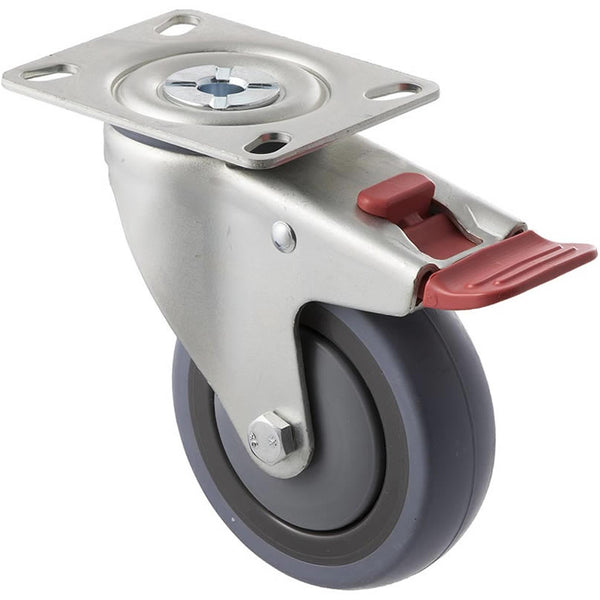

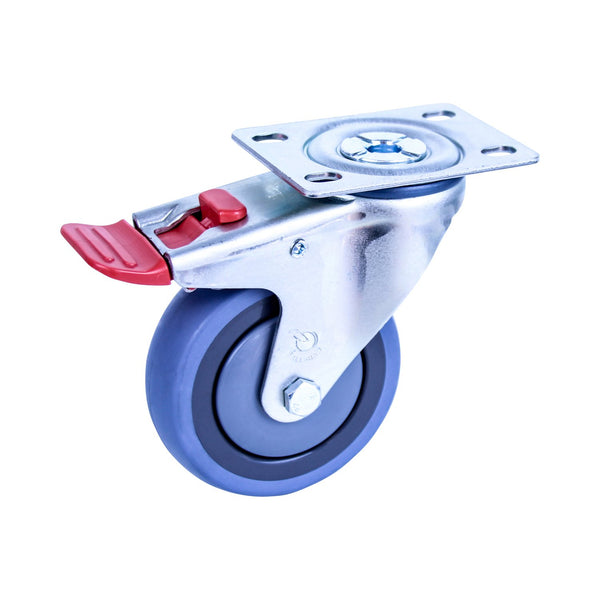

STQ100G/MZPTB 100 Kg Swivel Plate Total Brake 100mm Grey Rubber

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- Grey Rubber
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- Yes
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 30mm
  • -Overall Height- 135mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 128mm

Light industrial grey rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options..

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

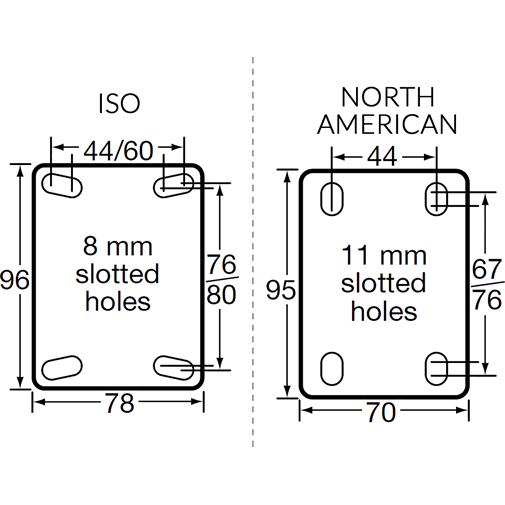

Top Plate Option
$37.35 (Incl. GST)
