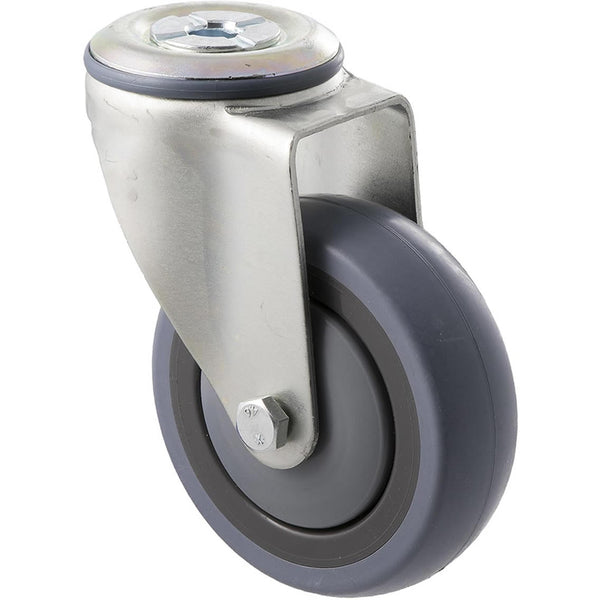

STQ100G/MZH 100 Kg Bolt-Hole 100mm Grey Rubber

Technical Specifications

• -Castor Type- Bolt-Hole
• -Load Capacity- 100 Kg
• -Brake Type- N/A

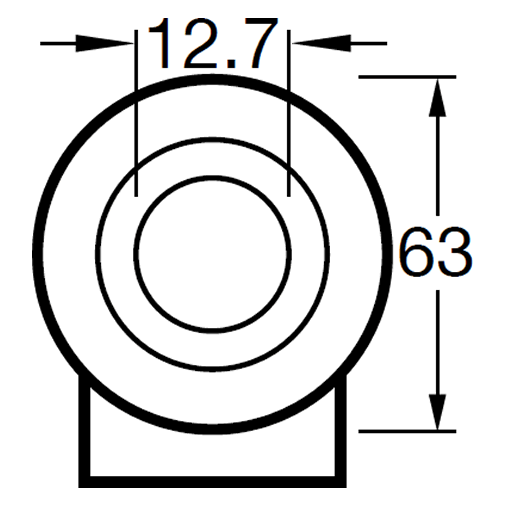

• -Mounting Type- 12.7mm Bolt-Hole
• -Wheel Material- Grey Rubber
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 135mm
• -Axle Type- Bolted
• -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial grey rubber castor. General use including warehouse trolleys, engineering and furniture.
