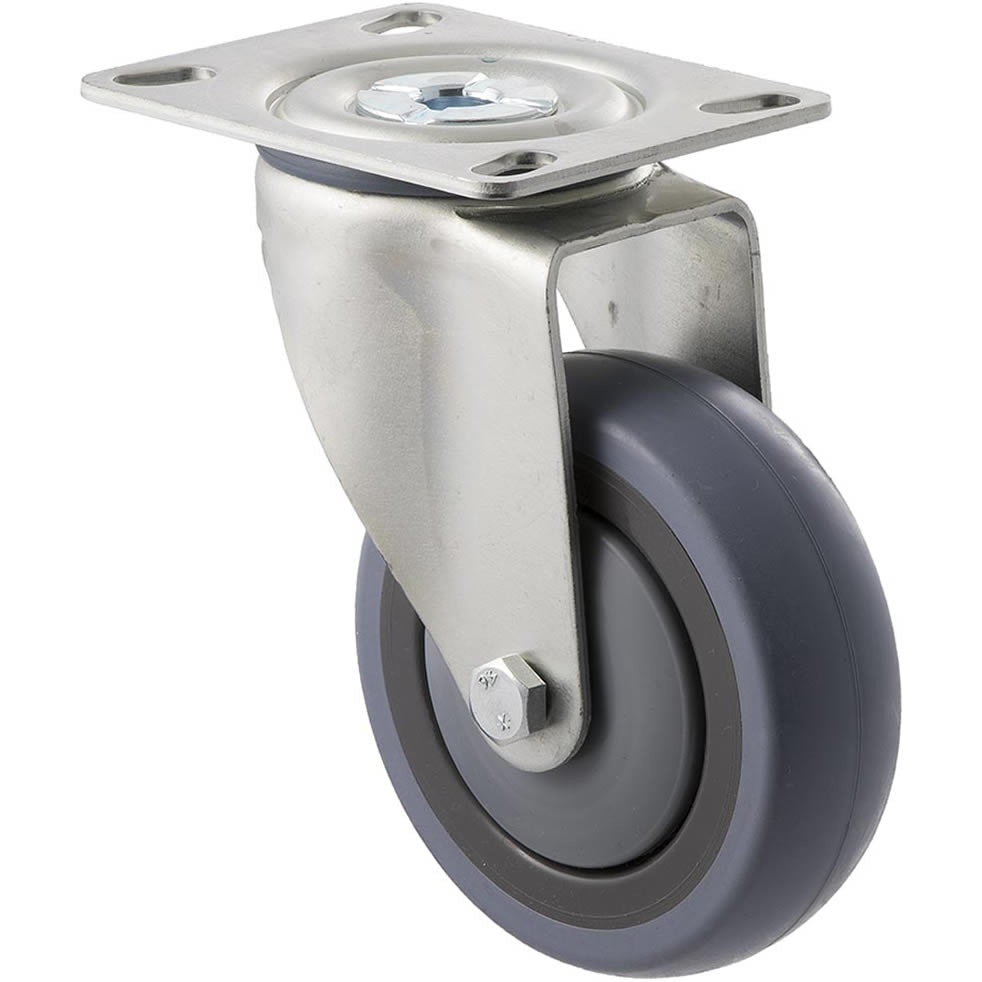

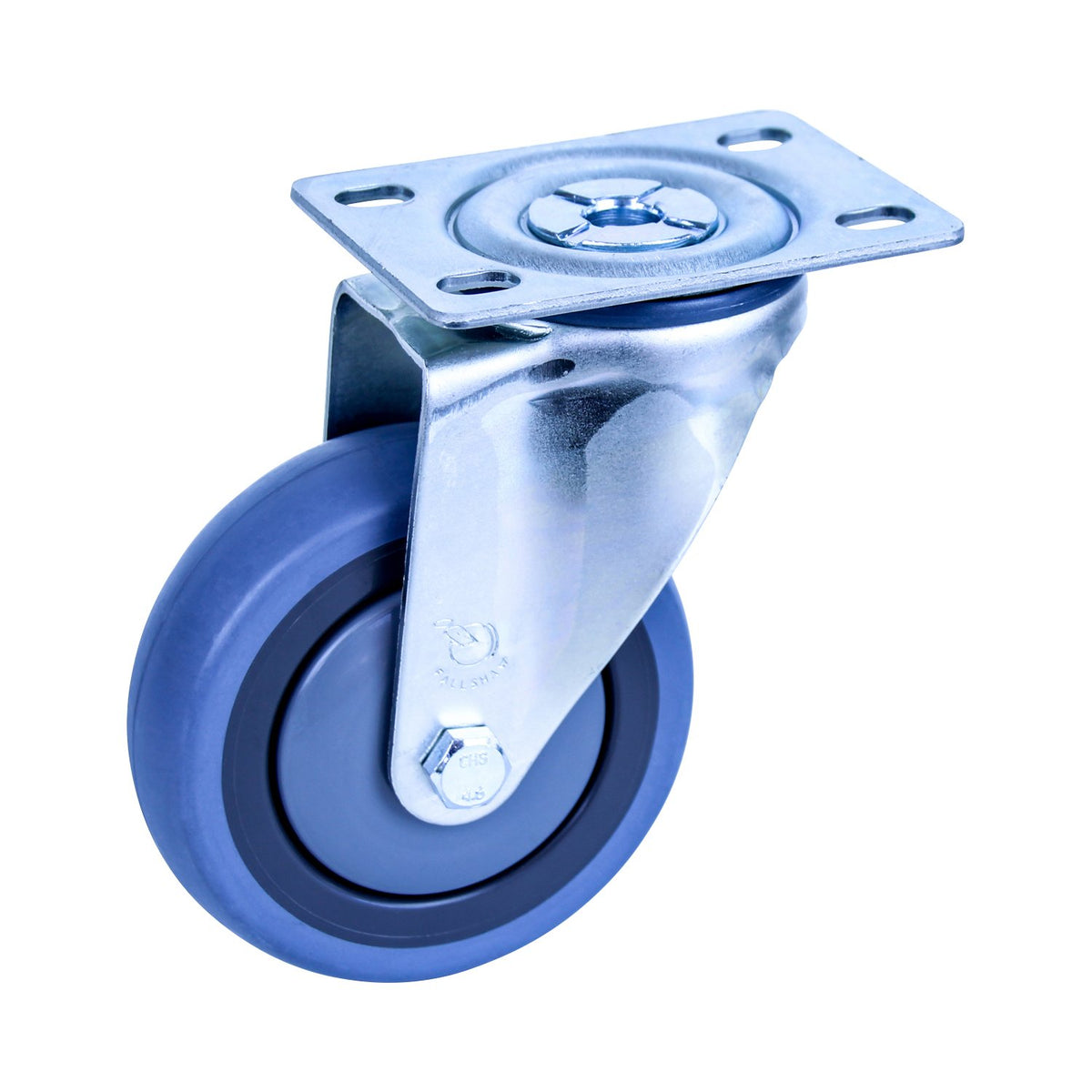

STQ100G/MZP - 100 kg Swivel Plate 100mm Grey Rubber
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
STQ100G/MZP is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
STQ100G/MZP is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
STQ100G/MZP - 100 kg Swivel Plate 100mm Grey Rubber
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU STQ100G/MZP
-
Castor TypeSwivel
-
Capacity100 kg
-
Overall HeightKey specification differs from other available variants 135 mm
- Wheel
-
Wheel DiameterØ100 mm
-
Tread Width30 mm
-
Tread MaterialGrey Rubber
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 100 kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Grey Rubber
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: Yes
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 30mm
- Overall Height: 135mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 91mm
Light industrial grey rubber castor. General use including warehouse trolleys, engineering and furniture.

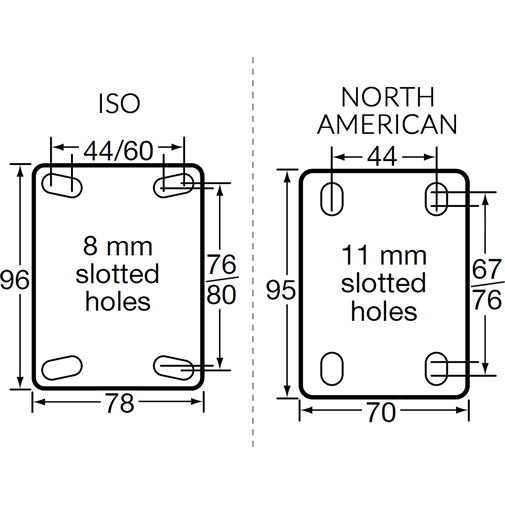

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
