827O 140 Kg 20mm Round Groove Wheel

$39.35 (Incl. GST)

Technical Specifications

• -Groove Type- 20mm Round Groove
• -Load Capacity- 140 Kg
• -Wheel Diameter- 80mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 26mm
• -Groove Width- 21mm
• -Groove Depth- 9mm
• -Hub Length (unsleeved)- 12mm
• -Hub Length (sleeved)- 34mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 14mm
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? M14 x 60mm & Nut

Machined steel "O" round groove wheels, for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.

BH-G150K 900 Kg Zinc Castor Fixed Cast Iron 150mm x 50mm

$84.85 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 900 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 197mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 140mm x 110mm
• -Mounting Plate Hole Centres- 105mm x 75mm-80mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (Inc. brake if fitted)- N/A

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

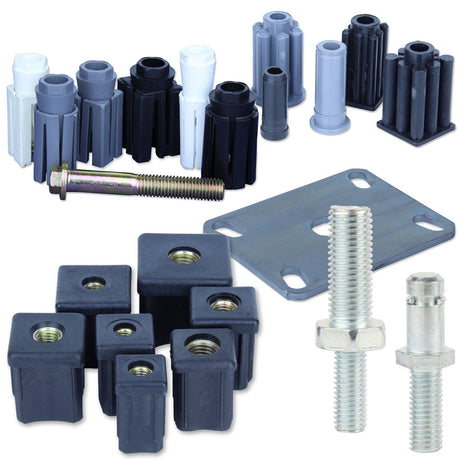

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BH-GTH150K 750 Kg Zinc Castor Fixed P/U on Cast Iron 150mm x 50mm

$105.40 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 750 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 197mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 140mm x 110mm
• -Mounting Plate Hole Centres- 105mm x 75mm-80mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- N/A

Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BP10050B 150 Kg Blue Rubber Wheel

$23.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Polypropylene
• -Tyre Material- Blue Rubber
• -Tread Width- 35mm
• -Hub Length (unsleeved)- 56mm
• -Hub Length (sleeved)- 62mm
• -Bore Diameter (Unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Spacer Tube
• -Bearing Type- Ball Bearings

Heavy Industrial blue rubber wheel only (fitted with ball bearings - and supplied with 2 top hat spacers)

Delivery or in-store pickup available.

BPUQ100BHTB 130 Kg Black Series Castor Swivel Bolt Hole Total Brake P/U on Nylon 100mm x 30mm

$24.00 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- Total Brake
• -Mounting Type- 13mm Bolt Hole
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- 13mm
• -Swivel Radius (inc. brake if fitted)- 111mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100F 130 Kg Black Series Castor Fixed Plate P/U on Nylon 100mm x 30mm

$17.05 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100S 130 Kg Black Series Castor Swivel Plate P/U on Nylon 100mm x 30mm

$21.25 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100STB 130 Kg Black Series Castor Swivel Plate Total Brake P/U on Nylon 100mm x 30mm

$24.00 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 111mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ50BH 52 Kg Black Series Castor Swivel Bolt Hole P/U on Nylon 50mm x 26mm

$10.10 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 52 Kg
• -Brake Type- N/A
• -Mounting Type- M10 Pintle
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 50mm x 26mm
• -Overall Height- 75mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- M10 Pintle
• -Swivel Radius (inc. brake if fitted)- 50mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

Delivery or in-store pickup available.

BPUQ50BHTB 52 Kg Black Series Castor Swivel Bolt Hole Total Brake P/U on Nylon 50mm x 26mm

$12.20 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 52 Kg
• -Brake Type-  Total Brake
• -Mounting Type- M10 Pintle
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 50mm x 26mm
• -Overall Height- 75mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- M10 Pintle
• -Swivel Radius (inc. brake if fitted)- 76mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

Delivery or in-store pickup available.

BPUQ50F 52 Kg Black Series Castor Fixed Plate P/U on Nylon 50mm x 26mm

$7.05 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 52 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 50mm x 26mm
• -Overall Height- 75mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 71mm x 52mm
• -Mounting Plate Hole Centres- 35mm x 52/55mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ50S 52 Kg Black Series Castor Swivel Plate P/U on Nylon 50mm x 26mm

$10.10 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 52 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 50mm x 26mm
• -Overall Height- 75mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 71mm x 52mm
• -Mounting Plate Hole Centres- 35mm x 52/55mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 52mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.
