Castor Packs

Sort by:
Heavy Industrial 100mm 280 Kg Zinc Castor Pack <span>2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 100mm x 50mm</span>

Heavy Industrial 100mm 280 Kg Zinc Castor Pack 2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 100mm x 50mm

$195.00 (Incl. GST)

Technical Specifications

Swivel

  • -Castor Type- Swivel
  • -Load Capacity- 280 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 50mm
  • -Overall Height- 144mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 81mm

Swivel Total Brake

  • -Castor Type- Swivel
  • -Load Capacity- 280 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 50mm
  • -Overall Height- 144mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 129mm

***LIMIT OF 4X PACKS PER ORDER***

Pack contains 2x swivel & 2x swivel total brake castors, 4x mounting plates & 4x bolt packs to suit.

Mounting plates are the best option for welding onto workbench legs so the castor isn't affected by the heat.

Economy heavy industrial castor, polyurethane on cast iron wheel fitted with precision ball bearings.

Suitable for work benches, heavy trolleys, workshop equipment such as car rotisseries.

Delivery or in-store pickup available.


More Info
Heavy Industrial 125mm 350 Kg Zinc Castor Pack <span>2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 125mm x 50mm</span>

Heavy Industrial 125mm 350 Kg Zinc Castor Pack 2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 125mm x 50mm

$205.00 (Incl. GST)

Technical Specifications

Swivel

  • -Castor Type- Swivel
  • -Load Capacity- 350 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 125mm x 50mm
  • -Overall Height- 165mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 96mm

Swivel Total Brake

  • -Castor Type- Swivel
  • -Load Capacity- 350 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 125mm x 50mm
  • -Overall Height- 165mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 129mm

***LIMIT OF 4X PACKS PER ORDER***

Pack contains 2x swivel & 2x swivel total brake castors, 4x mounting plates & 4x bolt packs to suit.

Mounting plates are the best option for welding onto workbench legs so the castor isn't affected by the heat.

Economy heavy industrial castor, polyurethane on cast iron wheel fitted with precision ball bearings.

Suitable for work benches, heavy trolleys, workshop equipment such as car rotisseries.

Delivery or in-store pickup available.


More Info
Heavy Industrial 150mm 400 Kg Zinc Castor Pack <span>2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 150mm x 50mm</span>

Heavy Industrial 150mm 400 Kg Zinc Castor Pack 2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 150mm x 50mm

$230.00 (Incl. GST)

Technical Specifications

Swivel

  • -Castor Type- Swivel
  • -Load Capacity- 400 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 191mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 115mm

Swivel Total Brake

  • -Castor Type- Swivel
  • -Load Capacity- 400 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 191mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 141mm

***LIMIT OF 4X PACKS PER ORDER***

Pack contains 2x swivel & 2x swivel total brake castors, 4x mounting plates & 4x bolt packs to suit.

Mounting plates are the best option for welding onto workbench legs so the castor isn't affected by the heat.

Economy heavy industrial castor, polyurethane on cast iron wheel fitted with precision ball bearings.

Suitable for work benches, heavy trolleys, workshop equipment such as car rotisseries.

Delivery or in-store pickup available.


More Info
Heavy Industrial 200mm 450 Kg Zinc Castor Pack <span>2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 200mm x 50mm</span>

Heavy Industrial 200mm 450 Kg Zinc Castor Pack 2x Swivel & 2x Swivel Total Brake P/U on Cast Iron 200mm x 50mm

$280.00 (Incl. GST)

Technical Specifications

Swivel

  • -Castor Type- Swivel
  • -Load Capacity- 450 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 200mm x 50mm
  • -Overall Height- 242mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 150mm

Swivel Total Brake

  • -Castor Type- Swivel
  • -Load Capacity- 450 Kg
  • -Brake Type- Total Brake
  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Precision Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 200mm x 50mm
  • -Overall Height- 242mm
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 114mm x 100mm
  • -Mounting Plate Hole Centres- 85mm x 72mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 150mm

***LIMIT OF 4X PACKS PER ORDER***

Pack contains 2x swivel & 2x swivel total brake castors, 4x mounting plates & 4x bolt packs to suit.

Mounting plates are the best option for welding onto workbench legs so the castor isn't affected by the heat.

Economy heavy industrial castor, polyurethane on cast iron wheel fitted with precision ball bearings.

Suitable for work benches, heavy trolleys, workshop equipment such as car rotisseries.

Delivery or in-store pickup available.


More Info

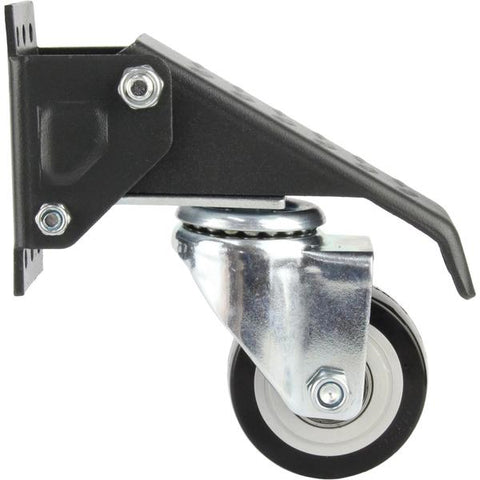

WBCS04 100 Kg Workbench Castor Set of 4

Castors

$110.00 (Incl. GST)
WBCS04 100 Kg Workbench Castor Set of 4

WBCS04 100 Kg Workbench Castor Set of 4

$110.00 (Incl. GST)

Technical Specifications

  • -Castor Type- Side mount - Lift Up
  • -Load Capacity- 100 Kg combined over 4 castors
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Black Polyurethane
  • -Wheel Bearing Type- Ball
  • -Thread guard Fitted?- No
  • -Frame Finish- Grey Powdercoat
  • -Wheel Diameter X Tread Width- 65mm x 27mm
  • -Overall Height- 154mm (combined castor and mounting bracket)
  • -Lift Height- 40mm throw
  • -Axle Type- Bolted
  • -Mounting Plate Dimensions- 90mm x 50mm
  • -Mounting Plate Hole Centres- 69mm x 32mm
  • -Mounting Plate Hole Diameter- 6mm
  • -Swivel Radius (inc. brake if fitted)- 71mm

Workbench lift-up style castor set (4 castors). Side mount to legs of benches or equipment. Used for temporary lift and move. Popular with woodworking equipment, office equipment and other items that needs to be moved temporarily. Leaves equipment at original height and stability.

Delivery or in-store pickup available.


More Info
