Wheel Bearings / Bushes

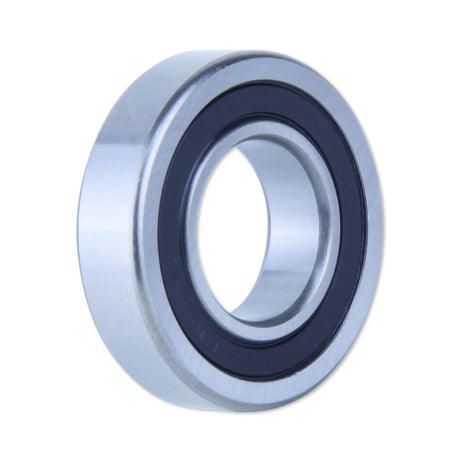

SPBRG2inchx1inch 25.4mm (1inch) Steel Wheel Bearing

$7.80 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 25.4mm (1")
• -Mount Diameter- 50.8mm (2")
• -Mount Width- N/A
• -Overall Width- 12.7mm (1/2")
• -Flange Width- N/A
• -Flange O/D- N/A

Precision ground deep-groove ball bearing to suit 400x8 Steel Wheel

Delivery or in-store pickup available.

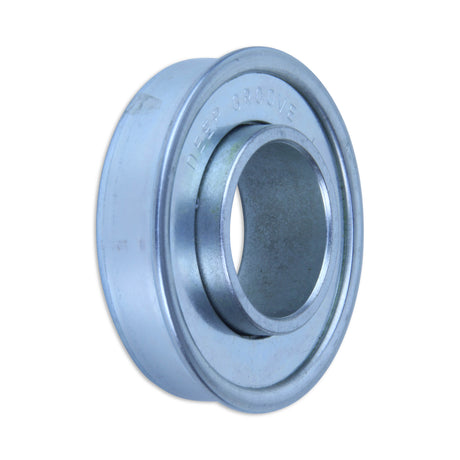

SPBRGC10 25.6mm (1inch) Steel Wheel Bearing

$4.20 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 25.6mm (1")
• -Mount Diameter- 50.8mm (2")
• -Mount Width- 11mm
• -Overall Width- 16mm
• -Flange Width- 2.1mm
• -Flange O/D- 54mm

Un-ground deep groove ball bearing with flanged, pressed metal housing

Delivery or in-store pickup available.

SPBRGC20 20mm Steel Wheel Bearing

$2.40 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 20mm
• -Mount Diameter- 35mm
• -Mount Width- 10mm
• -Overall Width- 13.4mm
• -Flange Width- 1.8mm
• -Flange O/D- 38mm

Un-ground deep groove ball bearing with flanged, pressed metal housing

Delivery or in-store pickup available.

SPBRGC34 19mm (3/4inch) Steel Wheel Bearing

$2.40 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 19mm (3/4")
• -Mount Diameter- 35mm
• -Mount Width- 10mm
• -Overall Width- 13.4mm
• -Flange Width- 1.8mm
• -Flange O/D- 38mm

Un-ground deep groove ball bearing with flanged, pressed metal housing

Delivery or in-store pickup available.

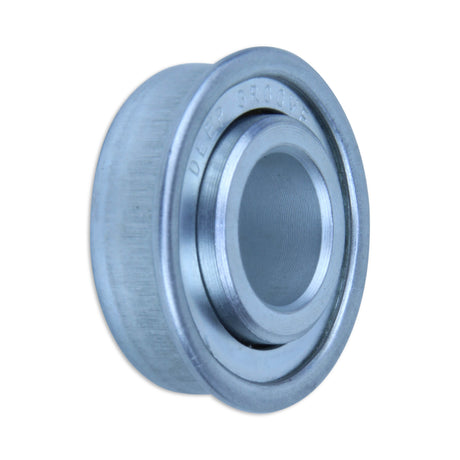

SPBRGC58 16mm (5/8inch) Steel Wheel Bearing

$2.40 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 16mm (5/8")
• -Mount Diameter- 35mm
• -Mount Width- 10mm
• -Overall Width- 13.4mm
• -Flange Width- 1.8mm
• -Flange O/D- 38mm

Un-ground deep groove ball bearing with flanged, pressed metal housing

Delivery or in-store pickup available.

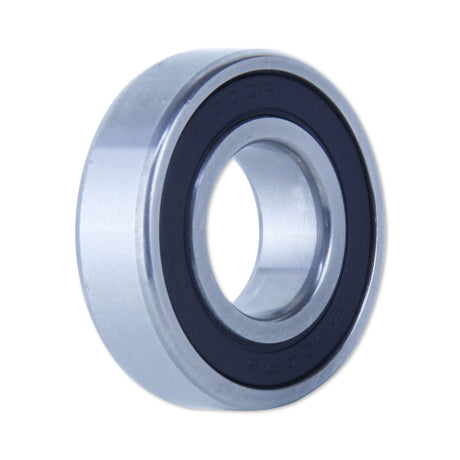

SPBRGQ6004X20 20mm Steel Wheel Bearing

$4.20 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 20mm
• -Mount Diameter- 42mm
• -Mount Width- N/A
• -Overall Width- 12mm
• -Flange Width- N/A
• -Flange O/D- N/A

Precision ground deep-groove ball bearing to suit R250/R300 Wheel, 20mm axle

Delivery or in-store pickup available.

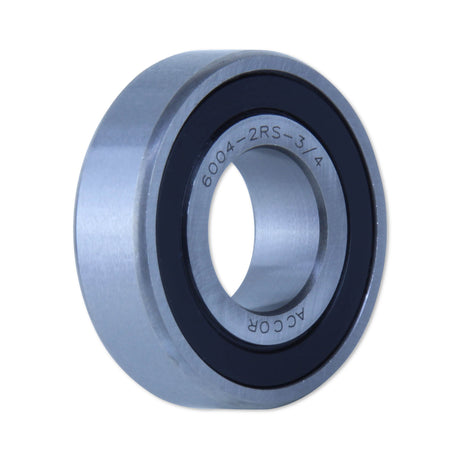

SPBRGQ6004X34 19mm (3/4inch) Steel Wheel Bearing

$4.20 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 19mm (3/4")
• -Mount Diameter- 42mm
• -Mount Width- N/A
• -Overall Width- 12mm
• -Flange Width- N/A
• -Flange O/D- N/A

Precision ground deep-groove ball bearing to suit R250/R300 Wheel, 3/4" axle

Delivery or in-store pickup available.

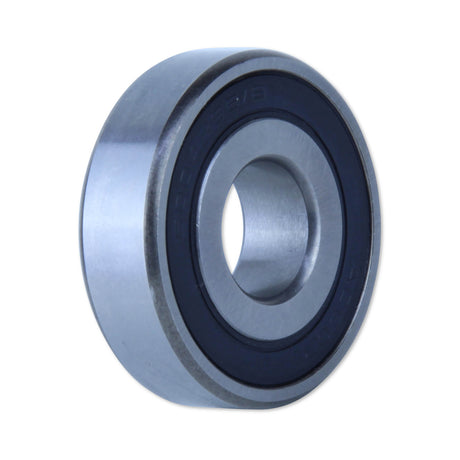

SPBRGQ6004X58 15.9mm (5/8inch) Steel Wheel Bearing

$4.20 (Incl. GST)

Technical Specifications

• -Material- Steel
• -Bore Diameter- 15.9mm (5/8")
• -Mount Diameter- 42mm
• -Mount Width- N/A
• -Overall Width- 12mm
• -Flange Width- N/A
• -Flange O/D- N/A

Precision ground deep-groove ball bearing to suit R250/R300 Wheel, 5/8" axle

Delivery or in-store pickup available.

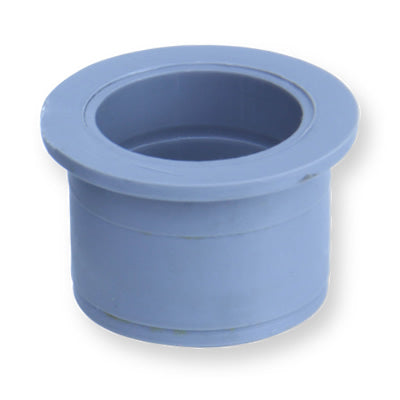

SPBSH10-20 20.3mm Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 20mm
• -Material- Acetal Resin
• -Bore Diameter- 20.3mm
• -Outside Diameter- 26mm
• -Mount Width- 17.5mm
• -Overall Width- 20mm
• -Flange Width- 2.1mm
• -Flange O/D- 31.2mm

Flanged reducing bush 1" to 20mm

Delivery or in-store pickup available.

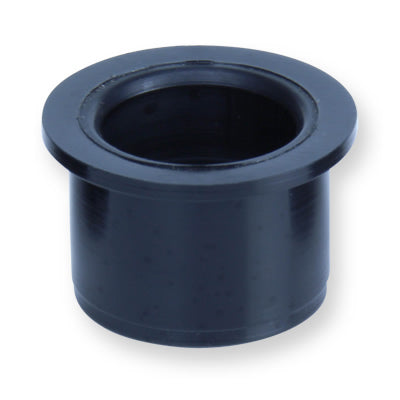

SPBSH10-34 19.4mm (3/4inch) Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 3/4"
• -Material- Acetal Resin
• -Bore Diameter- 19.4mm (3/4")
• -Outside Diameter- 26mm
• -Mount Width- 17.5mm
• -Overall Width- 20mm
• -Flange Width- 2.1mm
• -Flange O/D- 31.4mm

Flanged reducing bush 1" to 3/4"

Delivery or in-store pickup available.

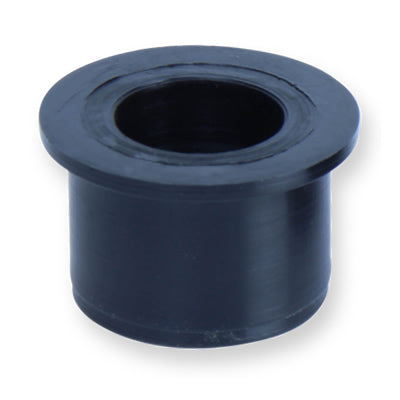

SPBSH10-58 16.4mm (5/8inch) Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 5/8"
• -Material- Acetal Resin
• -Bore Diameter- 16.4mm (5/8")
• -Outside Diameter- 26mm
• -Mount Width- 17.5mm
• -Overall Width- 20mm
• -Flange Width- 2.1mm
• -Flange O/D- 31.3mm

Flanged reducing bush 1" to 5/8"

Delivery or in-store pickup available.

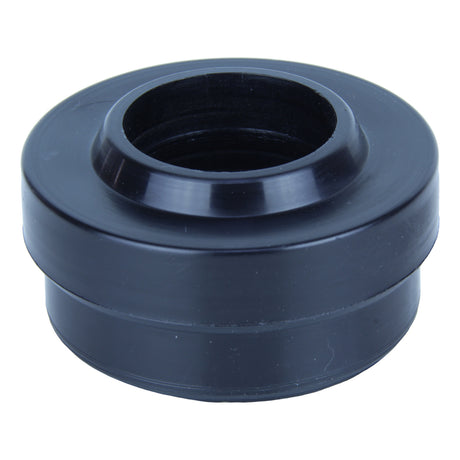

SPBSH400X8PWP10 25.8mm (1inch) Acetal Resin Wheel Bushes

$6.55 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 1"
• -Material- Acetal Resin
• -Bore Diameter- 25.8mm (1")
• -Outside Diameter- 46.1mm
• -Mount Width- 10.6mm
• -Overall Width- 26.8mm
• -Flange Width- 12.3mm
• -Flange O/D- 50.6mm

To suit 400x8 plastic pneumatics

Delivery or in-store pickup available.

SPBSH400X8PWP20 20.4mm Acetal Resin Wheel Bushes

$6.55 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 20mm
• -Material- Acetal Resin
• -Bore Diameter- 20.4mm
• -Outside Diameter- 45.9mm
• -Mount Width- 9.8mm
• -Overall Width- 25.8mm
• -Flange Width- 11.9mm
• -Flange O/D- 50.4mm

To suit 400x8 plastic pneumatics

Delivery or in-store pickup available.

SPBSH400X8PWP34 (3/4inch) Acetal Resin Wheel Bushes

$6.55 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 3/4"
• -Material- Acetal Resin
• -Bore Diameter- (3/4")
• -Outside Diameter- N/A
• -Mount Width- N/A
• -Overall Width- N/A
• -Flange Width- N/A
• -Flange O/D- N/A

To suit 400x8 plastic pneumatics

Delivery or in-store pickup available.

SPBSH400X8PWP58 (5/8inch) Acetal Resin Wheel Bushes

$6.55 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 5/8"
• -Material- Acetal Resin
• -Bore Diameter- (5/8")
• -Outside Diameter- N/A
• -Mount Width- N/A
• -Overall Width- N/A
• -Flange Width- N/A
• -Flange O/D- N/A

To suit 400x8 plastic pneumatics

Delivery or in-store pickup available.

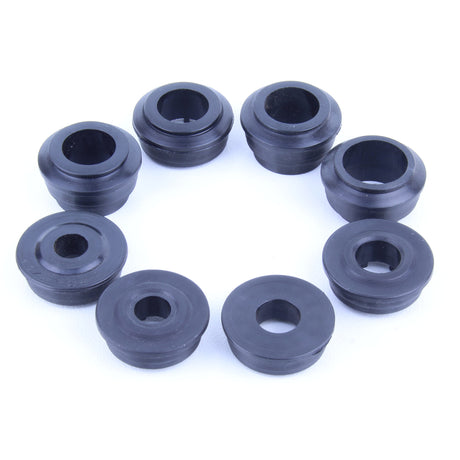

SPBSHPRA05 13mm (1/2inch) Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 1/2"
• -Material- Acetal Resin
• -Bore Diameter- 13mm (1/2")
• -Outside Diameter- 28.7mm
• -Mount Width- 7mm
• -Overall Width- 10.2mm
• -Flange Width- 2mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

SPBSHPRA10 10.3mm Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 10mm
• -Material- Acetal Resin
• -Bore Diameter- 10.3mm
• -Outside Diameter- 28.7mm
• -Mount Width- 7mm
• -Overall Width- 10.1mm
• -Flange Width- 2mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

SPBSHPRA16 16.3mm Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 16mm
• -Material- Acetal Resin
• -Bore Diameter- 16.3mm
• -Outside Diameter- 28.7mm
• -Mount Width- 7mm
• -Overall Width- 13.4mm
• -Flange Width- 2mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

SPBSHPRA17 17.3mm Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 17mm
• -Material- Acetal Resin
• -Bore Diameter- 17.3mm
• -Outside Diameter- 28.7mm
• -Mount Width- 7mm
• -Overall Width- 19mm
• -Flange Width- 2mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

SPBSHPRA34 19.5mm(3/4inch) Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 3/4"
• -Material- Acetal Resin
• -Bore Diameter- 19.5mm(3/4")
• -Outside Diameter- 28.7mm
• -Mount Width- 7mm
• -Overall Width- 17.3mm
• -Flange Width- 2mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

SPBSHPRA38 9.95mm (3/8inch) Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 3/8"
• -Material- Acetal Resin
• -Bore Diameter- 9.95mm (3/8")
• -Outside Diameter- 28.7mm
• -Mount Width- 7.6mm
• -Overall Width- 10.6mm
• -Flange Width- 1.6mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

SPBSHPRA58 16.2mm (5/8inch) Acetal Resin Wheel Bushes

$2.45 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 5/8"
• -Material- Acetal Resin
• -Bore Diameter- 16.2mm (5/8")
• -Outside Diameter- 28.7mm
• -Mount Width- 7mm
• -Overall Width- 19mm
• -Flange Width- 2mm
• -Flange O/D- 32mm

To suit PR-series Wheels

Delivery or in-store pickup available.

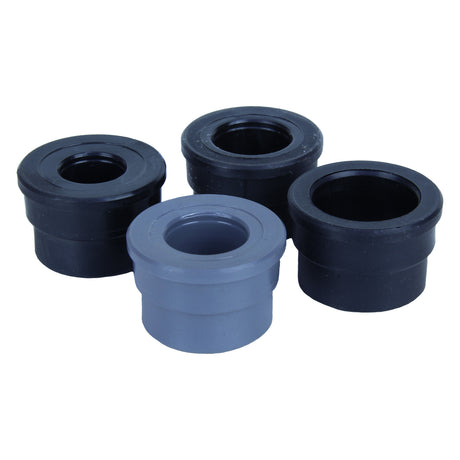

SPBSHPWA10 25.8mm (1inch) Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 1"
• -Material- Acetal Resin
• -Bore Diameter- 25.8mm (1")
• -Outside Diameter- 35.5mm
• -Mount Width- 9.5mm
• -Overall Width- 24.6mm
• -Flange Width- 3.4mm
• -Flange O/D- 37.5mm

To suit 250x4,300X4,350X4 & 350X6 plastic pneumatics

Delivery or in-store pickup available.

SPBSHPWA20 20.6mm Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 20mm
• -Material- Acetal Resin
• -Bore Diameter- 20.6mm
• -Outside Diameter- 35.5mm
• -Mount Width- 9.5mm
• -Overall Width- 24.6mm
• -Flange Width- 3.4mm
• -Flange O/D- 37.5mm

To suit 250x4,300X4,350X4 & 350X6 plastic pneumatics

Delivery or in-store pickup available.

SPBSHPWA34 19.2mm (3/4inch) Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 3/4"
• -Material- Acetal Resin
• -Bore Diameter- 19.2mm (3/4")
• -Outside Diameter- 35.0mm
• -Mount Width- 9.5mm
• -Overall Width- 24.6mm
• -Flange Width- 3.4mm
• -Flange O/D- 37.5mm

To suit 250x4,300X4,350X4 & 350X6 plastic pneumatics

Delivery or in-store pickup available.

SPBSHPWA58 16.3mm (5/8inch) Acetal Resin Wheel Bushes

$2.40 (Incl. GST)

Technical Specifications

• -Flanged acetal bushes- 5/8"
• -Material- Acetal Resin
• -Bore Diameter- 16.3mm (5/8")
• -Outside Diameter- 35.2mm
• -Mount Width- 9.5mm
• -Overall Width- 24.6mm
• -Flange Width- 3.4mm
• -Flange O/D- 37.5mm

To suit 250x4,300X4,350X4 & 350X6 plastic pneumatics

Delivery or in-store pickup available.

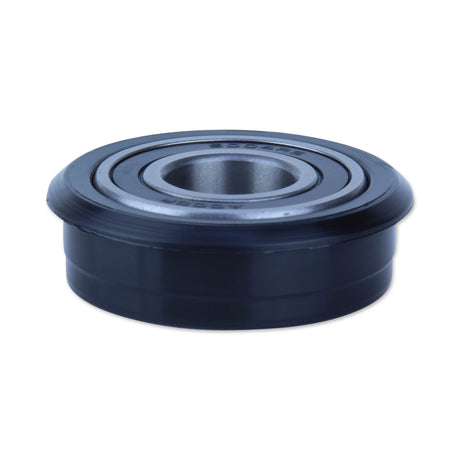

SPHOUSING6004FLG 42.2mm Nylon Wheel Bearing Adapter

$2.80 (Incl. GST)

Technical Specifications

• -Material- Nylon
• -Bore Diameter- 42.2mm
• -Mount Diameter- 51.3mm
• -Mount Width- 13.1mm
• -Overall Width- 16.7mm
• -Flange Width- 3.6mm
• -Flange O/D- 56mm

Flanged Adaptor for 42mm OD x 12mm wide bearing into 2" diameter hub

*Adapter ONLY, bearing not included*

Delivery or in-store pickup available.
