Cast Iron Wheels

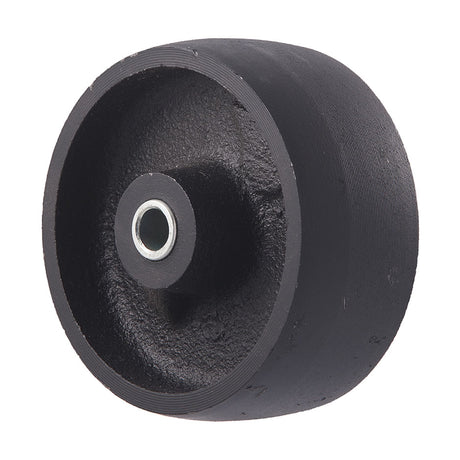

DCI75 100kg Cast Iron Wheel
$14.30 (Incl. GST)
Technical Specifications:
- Load Capacity: 100kg
- Wheel Diameter: 75mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 32mm
- Hub Length (unsleeved): 40mm
- Hub Length (sleeved): 41.3mm
- Bore Diameter (Unsleeved): 12mm
- Sleeved Bore Diameter Options: 8mm
- Sleeve Type: Spacer Tube
- Bearing Type: Plain
Medium Duty cast iron wheel only - plain bore (supplied with spacer sleeve)
Delivery or in-store pickup available.

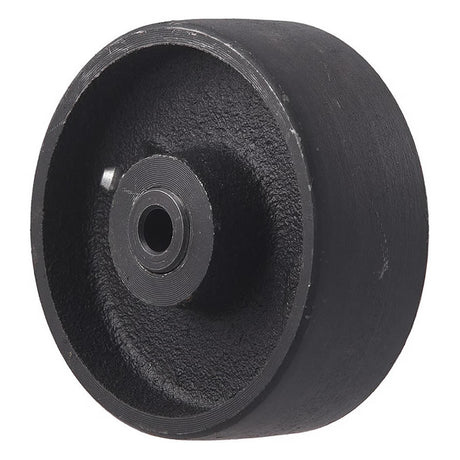

JCI100 230kg Cast Iron Wheel
$24.50 (Incl. GST)
Technical Specifications:
- Load Capacity: 230kg
- Wheel Diameter: 100mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 38mm
- Hub Length (unsleeved): 45mm
- Hub Length (sleeved): 46.3mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 10mm
- Sleeve Type: Spacer Tube
- Bearing Type: Plain
Medium Industrial cast iron wheel only - plain bore (supplied with spacer sleeve) HI TEMP suitable.
Delivery or in-store pickup available.

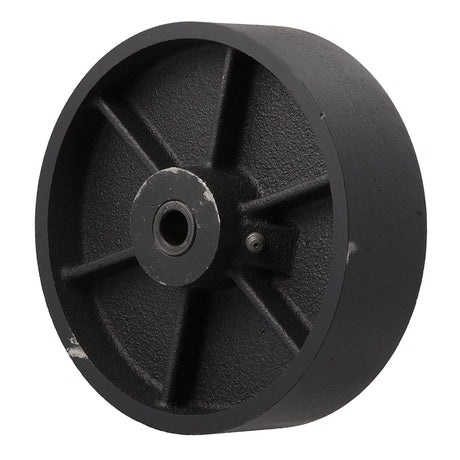

WCI150 400kg Cast Iron Wheel
$38.60 (Incl. GST)
Technical Specifications:
- Load Capacity: 400kg
- Wheel Diameter: 150mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 48mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 61.3mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 12.7mm (1/2")
- Sleeve Type: Spacer Tube
- Bearing Type: Plain
Heavy Industrial cast iron wheel only - plain bore (supplied with spacer sleeve)
Delivery or in-store pickup available.

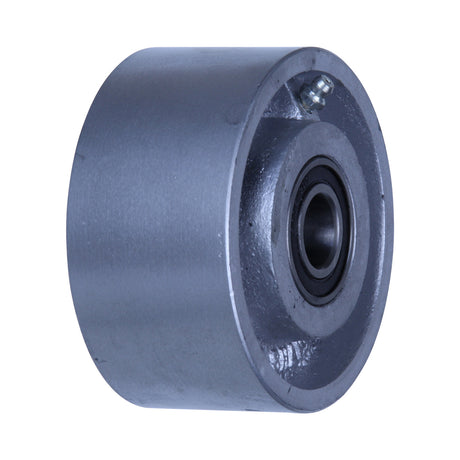

XCQ100 450kg Cast Iron Wheel
$38.60 (Incl. GST)
Technical Specifications:
- Load Capacity: 450kg
- Wheel Diameter: 100mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 48mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 61.3mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 12.7mm (1/2")
- Sleeve Type: Top Hat Pair
- Bearing Type: Ball Bearings
Heavy Industrial cast iron wheel only - fitted with ball bearings (supplied with 2 top hat spacers)
Delivery or in-store pickup available.

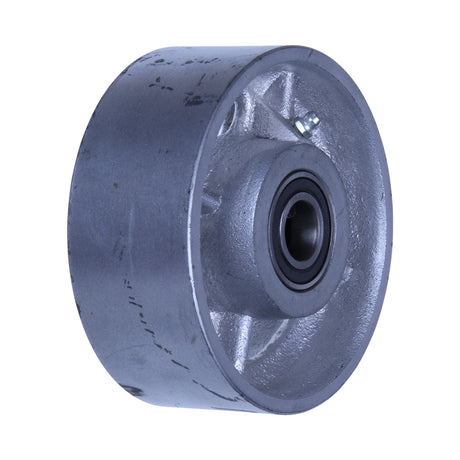

XCQ125 590kg Cast Iron Wheel
$43.00 (Incl. GST)
Technical Specifications:
- Load Capacity: 590kg
- Wheel Diameter: 125mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 48mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 61.3mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 12.7mm (1/2")
- Sleeve Type: Top Hat Pair
- Bearing Type: Ball Bearings
Heavy Industrial cast iron wheel only - fitted with ball bearings (supplied with 2 top hat spacers)
Delivery or in-store pickup available.

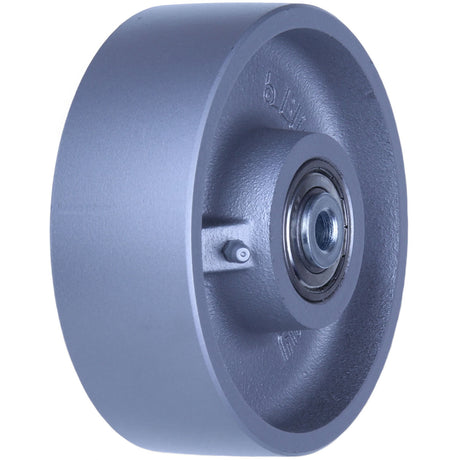

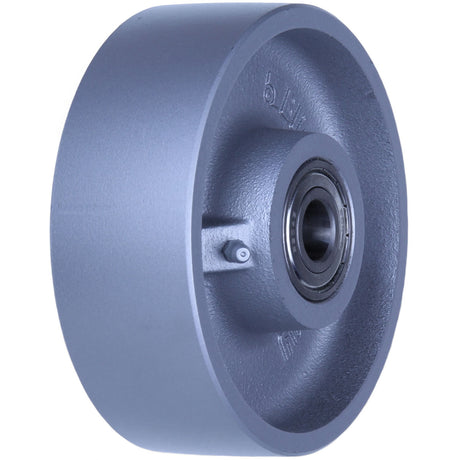

G150/20K 900kg Cast Iron Wheel
$46.80 (Incl. GST)
Technical Specifications:
- Load Capacity:Â 900kg
- Wheel Diameter: 150mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 50mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 65.1mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 12.7mm(1/2")
- Sleeve Type: Top Hat Pair
- Bearing Type: Ball Bearings
Heavy Industrial cast iron wheel only - fitted with 20mm ball bearings. Option with top hat reducing pair (reduced to 1/2" ) for mounting into castors.
Delivery or in-store pickup available.
XCQ150 630kg Cast Iron Wheel
$47.40 (Incl. GST)
Technical Specifications:
- Load Capacity: 630kg
- Wheel Diameter: 150mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 48mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 61.3mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 12.7mm (1/2")
- Sleeve Type: Top Hat Pair
- Bearing Type: Ball Bearings
Heavy Industrial cast iron wheel only - fitted with ball bearings (supplied with 2 top hat spacers)
Delivery or in-store pickup available.
G200/20K - 1000kg Cast Iron Wheel
$58.30 (Incl. GST)
Technical Specifications:
- Load Capacity: 1000kg
- Wheel Diameter: 200mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 50mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 61.3mm
- Bore dia. (Unsleeved): 20mm
- Sleeved Bore dia. Options: 12.7mm (1/2")
- Sleeve Type: Top Hat Pair
- Bearing Type: Ball Bearings
XCQ200 820kg Cast Iron Wheel
$60.70 (Incl. GST)
Technical Specifications:
- Load Capacity: 820kg
- Wheel Diameter: 200mm
- Wheel Material: Cast Iron
- Tyre Material: Cast Iron
- Tread Width: 48mm
- Hub Length (unsleeved): 60mm
- Hub Length (sleeved): 61.3mm
- Bore Diameter (Unsleeved): 20mm
- Sleeved Bore Diameter Options: 12.7mm (1/2")
- Sleeve Type: Top Hat Pair
- Bearing Type: Ball Bearings
Heavy Industrial cast iron wheel only - fitted with ball bearings (supplied with 2 top hat spacers)
Delivery or in-store pickup available.
