Ball Jointed Bolt-Down Mild Steel

Sort by:

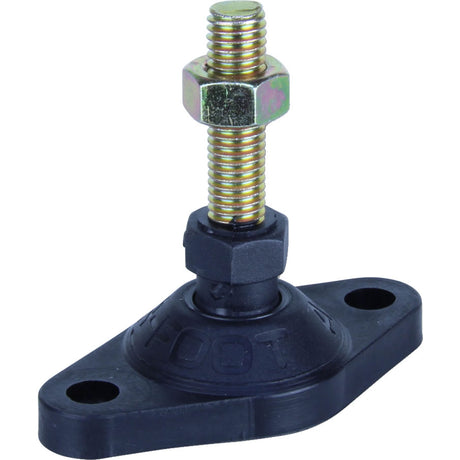

30/40/M10/35 500 Kg 40mm x M10 <span>Zinc Plated Levelling Feet</span>

30/40/M10/35 500 Kg 40mm x M10 Zinc Plated Levelling Feet

$11.45 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 40mm x M10
  • -Base Diameter- 40mm
  • -Thread Length- 35mm
  • -Base & Knuckle Height- 33mm
  • -Base Only Height- 20mm
  • -Thread Size- M10
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 500 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 9mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

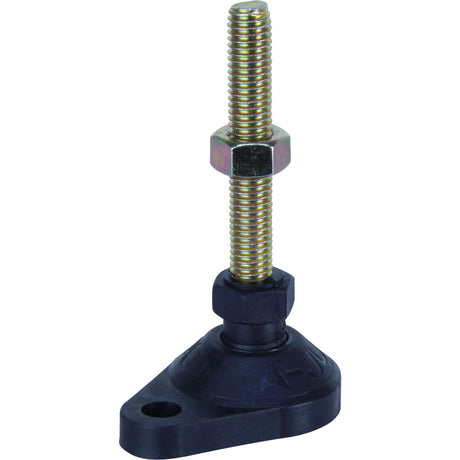

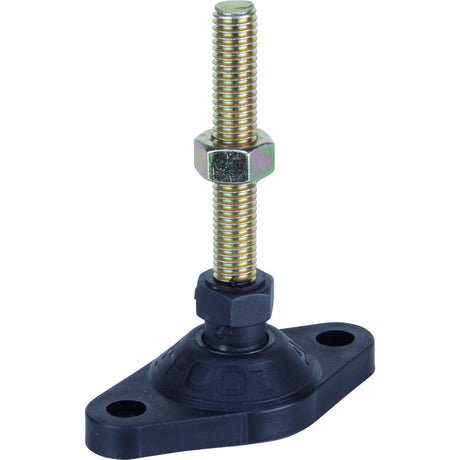

30/40/M10/60 500 Kg 40mm x M10 <span>Zinc Plated Levelling Feet</span>

30/40/M10/60 500 Kg 40mm x M10 Zinc Plated Levelling Feet

$11.45 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 40mm x M10
  • -Base Diameter- 40mm
  • -Thread Length- 60mm
  • -Base & Knuckle Height- 33mm
  • -Base Only Height- 20mm
  • -Thread Size- M10
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 500 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 9mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

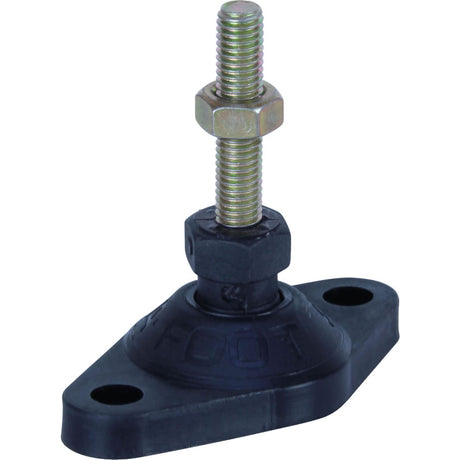

30/40/M8/35 350 Kg 40mm x M8 <span>Zinc Plated Levelling Feet</span>

30/40/M8/35 350 Kg 40mm x M8 Zinc Plated Levelling Feet

$9.30 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 40mm x M8
  • -Base Diameter- 40mm
  • -Thread Length- 35mm
  • -Base & Knuckle Height- 33mm
  • -Base Only Height- 20mm
  • -Thread Size- M8
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 350 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 9mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

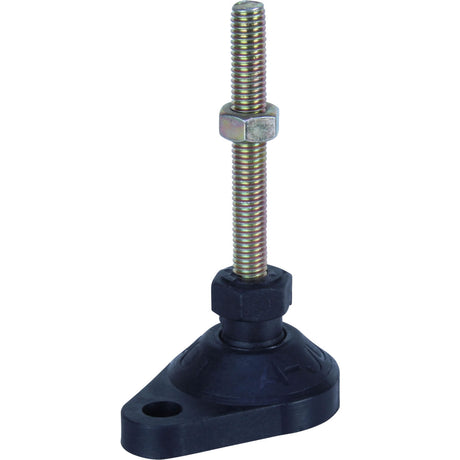

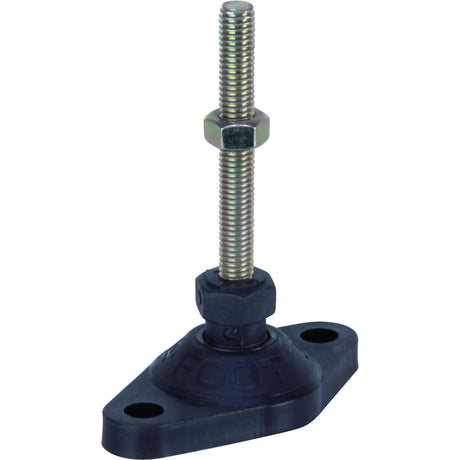

30/40/M8/60 350 Kg 40mm x M8 <span>Zinc Plated Levelling Feet</span>

30/40/M8/60 350 Kg 40mm x M8 Zinc Plated Levelling Feet

$9.30 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 40mm x M8
  • -Base Diameter- 40mm
  • -Thread Length- 60mm
  • -Base & Knuckle Height- 33mm
  • -Base Only Height- 20mm
  • -Thread Size- M8
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 350 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 9mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

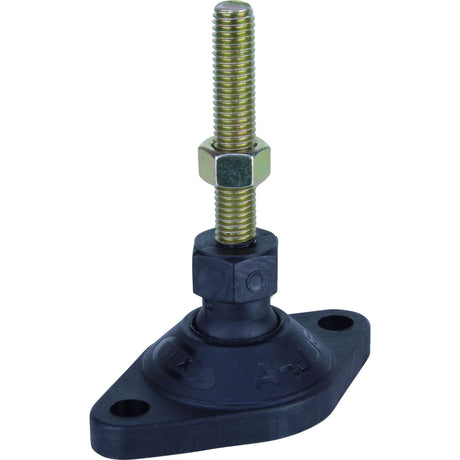

30/60/M12/65 800 Kg 60mm x M12 <span>Zinc Plated Levelling Feet</span>

30/60/M12/65 800 Kg 60mm x M12 Zinc Plated Levelling Feet

$17.45 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 60mm x M12
  • -Base Diameter- 60mm
  • -Thread Length- 65mm
  • -Base & Knuckle Height- 51mm
  • -Base Only Height- 23mm
  • -Thread Size- M12
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 800 Kg
  • -Bolt Down Hole Centres- 80mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

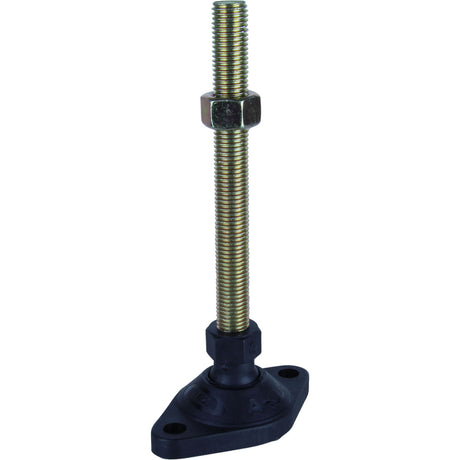

30/60/M16/150 1000 Kg 60mm x M16 <span>Zinc Plated Levelling Feet</span>

30/60/M16/150 1000 Kg 60mm x M16 Zinc Plated Levelling Feet

$22.90 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 60mm x M16
  • -Base Diameter- 60mm
  • -Thread Length- 150mm
  • -Base & Knuckle Height- 51mm
  • -Base Only Height- 23mm
  • -Thread Size- M16
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg
  • -Bolt Down Hole Centres- 80mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info
30/60/M16/65 1000 Kg 60mm x M16 <span>Zinc Plated Levelling Feet</span>

30/60/M16/65 1000 Kg 60mm x M16 Zinc Plated Levelling Feet

$18.60 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 60mm x M16
  • -Base Diameter- 60mm
  • -Thread Length- 65mm
  • -Base & Knuckle Height- 51mm
  • -Base Only Height- 23mm
  • -Thread Size- M16
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg
  • -Bolt Down Hole Centres- 80mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

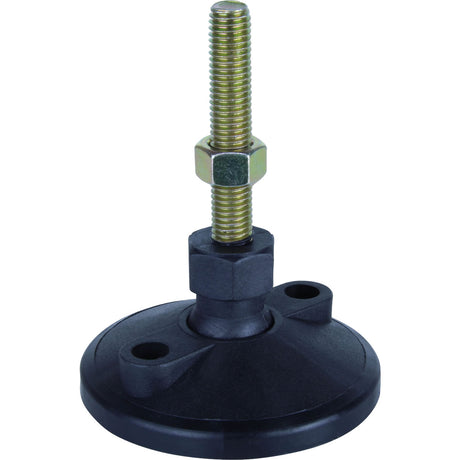

30/90/M12/65 800 Kg 90mm x M12 <span>Zinc Plated Levelling Feet</span>

30/90/M12/65 800 Kg 90mm x M12 Zinc Plated Levelling Feet

$17.45 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 90mm x M12
  • -Base Diameter- 90mm
  • -Thread Length- 65mm
  • -Base & Knuckle Height- 51mm
  • -Base Only Height- 25mm
  • -Thread Size- M12
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 800 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

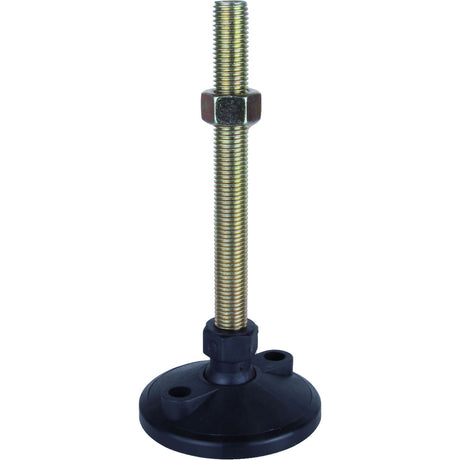

30/90/M16/150 1000 Kg 90mm x M16 <span>Zinc Plated Levelling Feet</span>

30/90/M16/150 1000 Kg 90mm x M16 Zinc Plated Levelling Feet

$23.60 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 90mm x M16
  • -Base Diameter- 90mm
  • -Thread Length- 150mm
  • -Base & Knuckle Height- 51mm
  • -Base Only Height- 25mm
  • -Thread Size- M16
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.


More Info

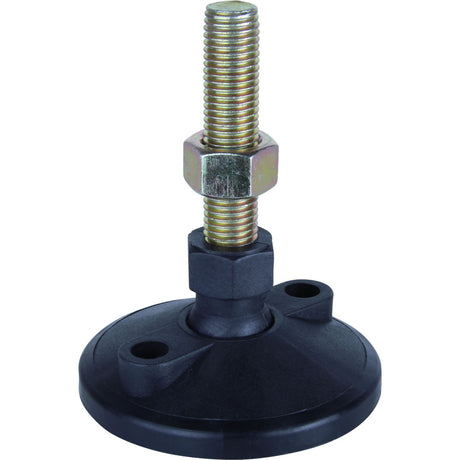

30/90/M16/65 1000 Kg 90mm x M16 <span>Zinc Plated Levelling Feet</span>

30/90/M16/65 1000 Kg 90mm x M16 Zinc Plated Levelling Feet

$18.60 (Incl. GST)

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 90mm x M16
  • -Base Diameter- 90mm
  • -Thread Length- 65mm
  • -Base & Knuckle Height- 51mm
  • -Base Only Height- 25mm
  • -Thread Size- M16
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Delivery or in-store pickup available.
