30/90/M16/65 - 1000 Kg 90mm x M16 Zinc Plated Levelling Feet
Regular price
$22.50
Unit price
/
Unavailable
GST included
Data Sheet PDF
30/90/M16/65 - 1000 Kg 90mm x M16 Zinc Plated Levelling Feet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Material: Ball Jointed Bolt-Down Mild Steel
- Size: 90mm x M16
- Base Diameter: 90mm
- Thread Length: 65mm
- Base+knuckle Height: 51mm
- Base Only Height: 25mm
- Thread Size: M16
- Thread Type: Zinc Plated
- Pivot Angle: 40 Deg
- Load Rating - Vertical: 1000 Kg
- Bolt Down Hole Centres: 60mm
- Bolt Down Hole Diameter: 11mm

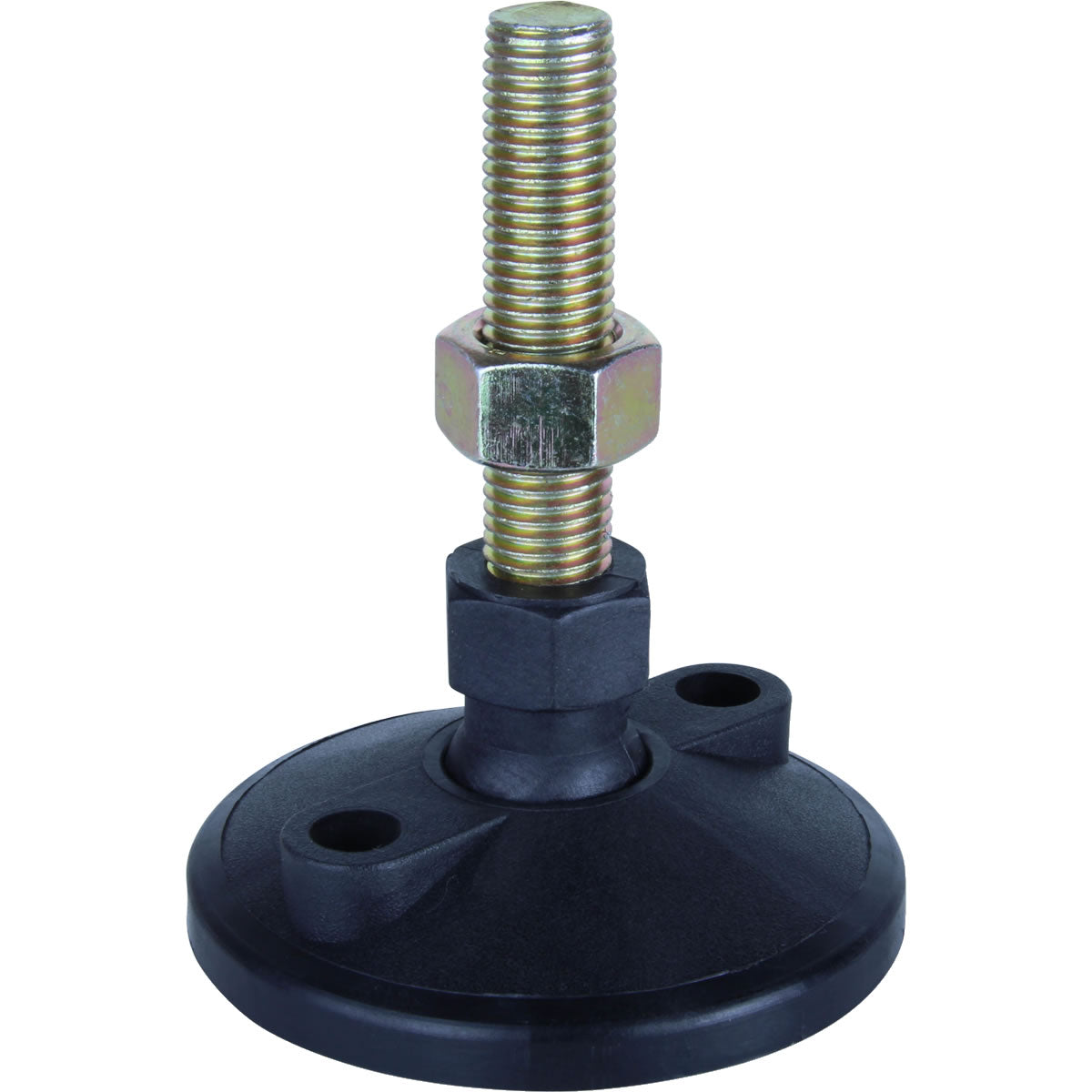

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.
-
Load Capacity1000 kg
