Very Heavy Duty (600-1000kg)
LH-GSPO80K 700kg Zinc Castor Swivel N/A Compressed Cast Nylon 80mm x 40mm In-store pickup required
Castors
LH-GSPO80K 700kg Zinc Castor Swivel N/A Compressed Cast Nylon 80mm x 40mm In-store pickup required
$67.20 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 700kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Compressed Cast Nylon
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 80mm x 40mm
- Overall Height: 120mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 100mm x 85mm
- Mounting Plate Hole Centres: 80mm x 60mm
- Mounting Plate Hole Diameter: 9mm
- Swivel Radius (inc. brake if fitted): 85mm
Very heavy duty, low profile compressed nylon castor. Suitable for high load application where a low installed height is required, or as machinery skates.
Delivery or in-store pickup available.

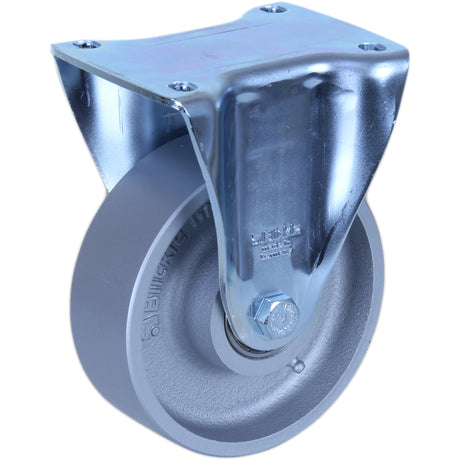

BH-G150K 900kg Zinc Castor Fixed N/A Cast Iron 150mm x 50mm
$75.00 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 900kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 197mm
- Axle Type: Bolted

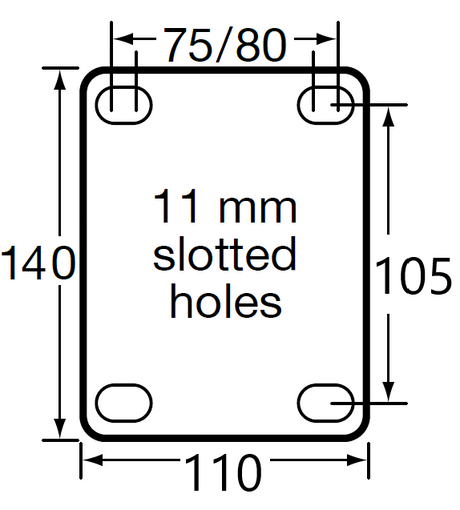

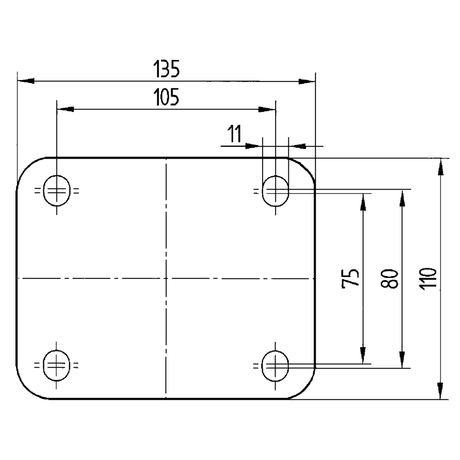

- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): N/A
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundaries and other application where tyred wheels fail.
Delivery or in-store pickup available.
XCQ100/XZF 450kg Zinc Castor Fixed N/A Cast Iron 100mm x 50mm
$77.20 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 450kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted

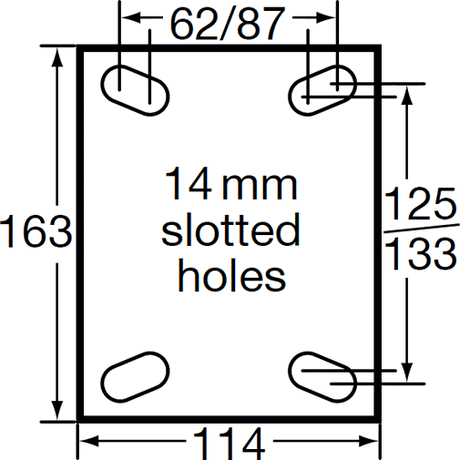

- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

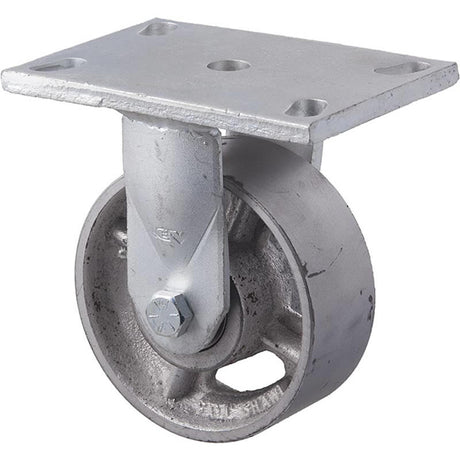

XCQ125/XZF 590kg Zinc Castor Fixed N/A Cast Iron 125mm x 50mm
$86.00 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 590kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

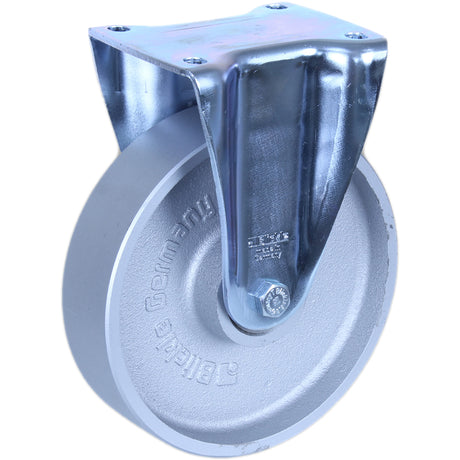

BH-G200K 900kg Zinc Castor Fixed N/A Cast Iron 200mm x 50mm
$93.20 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 900kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 245mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): N/A
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundaries and other application where tyred wheels fail.
Delivery or in-store pickup available.

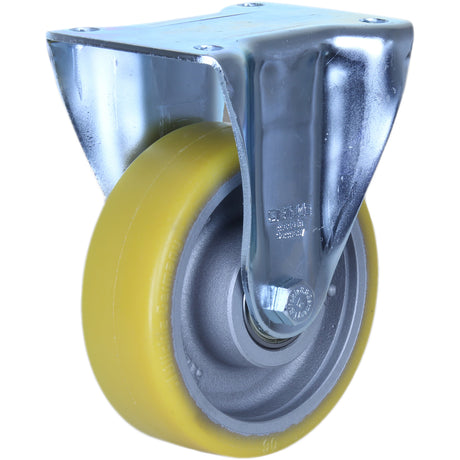

BH-GTH150K 750kg Zinc Castor Fixed N/A P/U on Cast Iron 150mm x 50mm
$93.20 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 750kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 197mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): N/A
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
Delivery or in-store pickup available.

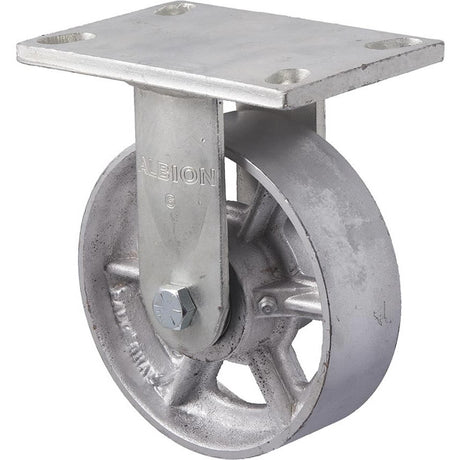

XCQ150/XZF 630kg Zinc Castor Fixed N/A Cast Iron 150mm x 50mm
$94.90 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 630kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

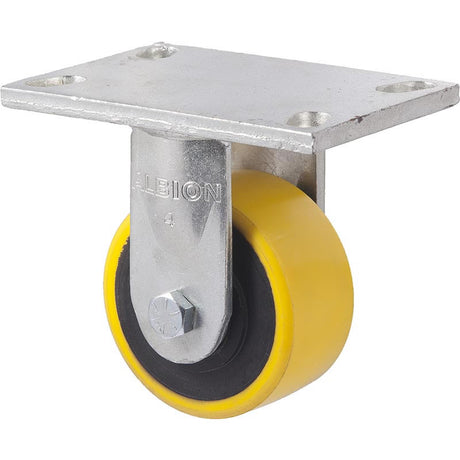

XUQ100/XZF 600kg Zinc Castor Fixed N/A P/U on Cast Iron 100mm x 50mm
$96.00 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 600kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ125/XZF 800kg Zinc Castor Fixed N/A P/U on Cast Iron 125mm x 50mm
$109.20 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 800kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

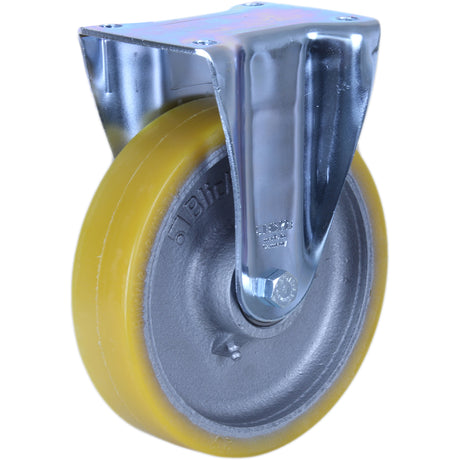

BH-GTH200K 900kg Zinc Castor Fixed N/A P/U on Cast Iron 200mm x 50mm
$112.50 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 900kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 245mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): N/A
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
Delivery or in-store pickup available.

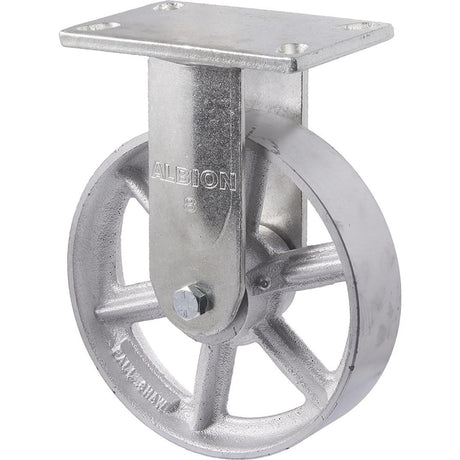

XCQ200/XZF 820kg Zinc Castor Fixed N/A Cast Iron 200mm x 50mm
$112.60 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 820kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
LH-G150K 900kg Zinc Castor Swivel N/A Cast Iron 150mm x 50mm
$117.30 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 900kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 197mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 140mm
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundaries and other application where tyred wheels fail.
Delivery or in-store pickup available.

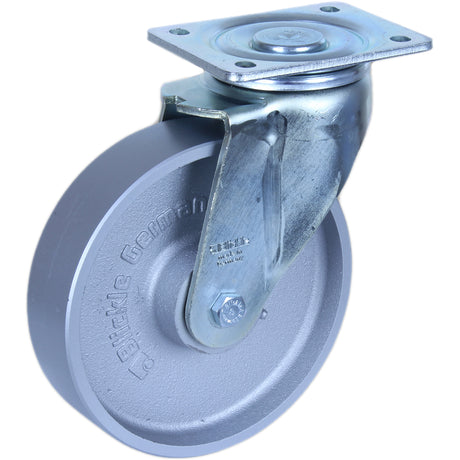

LH-G200K 900kg Zinc Castor Swivel N/A Cast Iron 200mm x 50mm
$124.80 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 900kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 245mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 170mm
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundaries and other application where tyred wheels fail.
Delivery or in-store pickup available.
LH-GTH150K 750kg Zinc Castor Swivel N/A P/U on Cast Iron 150mm x 50mm
$135.60 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 750kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 197mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 140mm
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
Delivery or in-store pickup available.
XUQ150/XZF 1000kg Zinc Castor Fixed N/A P/U on Cast Iron 150mm x 50mm
$137.90 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 1000kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XCQ100/XZP 450kg Zinc Castor Swivel N/A Cast Iron 100mm x 50mm
$139.00 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 450kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 95mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
LH-G150K-F1 900kg Zinc Castor Swivel Total Brake Cast Iron 150mm x 50mm
$141.20 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 900kg
- Brake Type: Total Brake
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 197mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 170mm
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundaries and other application where tyred wheels fail.
Delivery or in-store pickup available.
LH-GTH200K 900kg Zinc Castor Swivel N/A P/U on Cast Iron 200mm x 50mm
$144.10 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 900kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 245mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 170mm
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
Delivery or in-store pickup available.
XCQ125/XZP 590kg Zinc Castor Swivel N/A Cast Iron 125mm x 50mm
$152.30 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 590kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 108mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

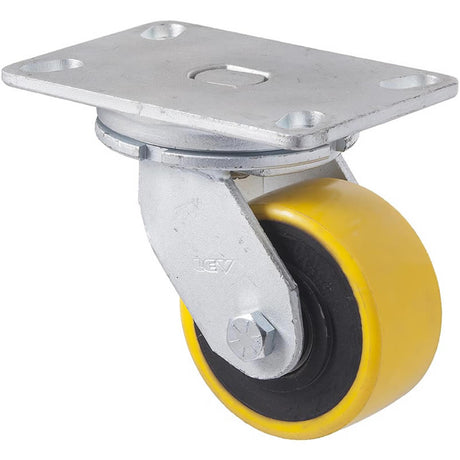

XUQ100/XZP 600kg Zinc Castor Swivel N/A P/U on Cast Iron 100mm x 50mm
$157.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 600kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 95mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
LH-GTH150K-F1 750kg Zinc Castor Swivel Total Brake P/U on Cast Iron 150mm x 50mm
Castors
LH-GTH150K-F1 750kg Zinc Castor Swivel Total Brake P/U on Cast Iron 150mm x 50mm
$158.90 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 750kg
- Brake Type: Total Brake
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 197mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 170mm
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
Delivery or in-store pickup available.
XUQ200/XZF 1000kg Zinc Castor Fixed N/A P/U on Cast Iron 200mm x 50mm
$160.00 (Incl. GST)
Technical Specifications:
- Castor Type: Fixed
- Load Capacity: 1000kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): N/A
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
LH-G200K-F1 900kg Zinc Castor Swivel Total Brake Cast Iron 200mm x 50mm
$161.40 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 900kg
- Brake Type: Total Brake
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 245mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 190mm
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundaries and other application where tyred wheels fail.
Delivery or in-store pickup available.
XCQ150/XZP 630kg Zinc Castor Swivel N/A Cast Iron 150mm x 50mm
$165.50 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 630kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 137mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XCQ100/XZPDL 450kg Zinc Castor Swivel Direction Only Cast Iron 100mm x 50mm
Castors
XCQ100/XZPDL 450kg Zinc Castor Swivel Direction Only Cast Iron 100mm x 50mm
$172.10 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 450kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 95mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ125/XZP 800kg Zinc Castor Swivel N/A P/U on Cast Iron 125mm x 50mm
$175.40 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 800kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 108mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

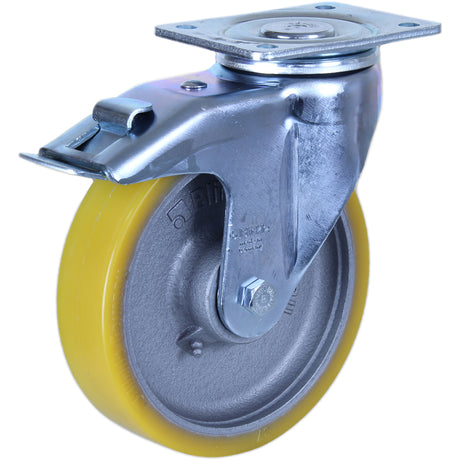

LH-GTH200K-F1 900kg Zinc Castor Swivel Total Brake P/U on Cast Iron 200mm x 50mm
Castors
LH-GTH200K-F1 900kg Zinc Castor Swivel Total Brake P/U on Cast Iron 200mm x 50mm
$180.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 900kg
- Brake Type: Total Brake
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 245mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 140mm x 110mm
- Mounting Plate Hole Centres: 105mm x 75mm-80mm
- Mounting Plate Hole Diameter: 11mm
- Swivel Radius (inc. brake if fitted): 190mm
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
Delivery or in-store pickup available.
XCQ100/XZPBR 450kg Zinc Castor Swivel Wheel Brake Cast Iron 100mm x 50mm
Castors
XCQ100/XZPBR 450kg Zinc Castor Swivel Wheel Brake Cast Iron 100mm x 50mm
$183.10 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 450kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 219mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XCQ125/XZPDL 590kg Zinc Castor Swivel Direction Only Cast Iron 125mm x 50mm
Castors
XCQ125/XZPDL 590kg Zinc Castor Swivel Direction Only Cast Iron 125mm x 50mm
$185.40 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 590kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 108mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XCQ200/XZP 820kg Zinc Castor Swivel N/A Cast Iron 200mm x 50mm
$187.60 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 820kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 162mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ100/XZPDL 600kg Zinc Castor Swivel Direction Only P/U on Cast Iron 100mm x 50mm
Castors
XUQ100/XZPDL 600kg Zinc Castor Swivel Direction Only P/U on Cast Iron 100mm x 50mm
$190.90 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 600kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 95mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

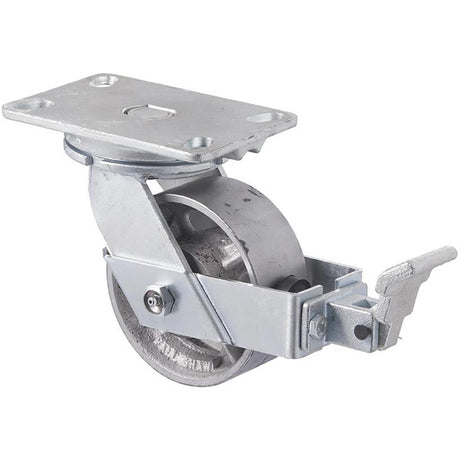

XCQ125/XZPBR 590kg Zinc Castor Swivel Wheel Brake Cast Iron 125mm x 50mm
Castors
XCQ125/XZPBR 590kg Zinc Castor Swivel Wheel Brake Cast Iron 125mm x 50mm
$196.40 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 590kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 242mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

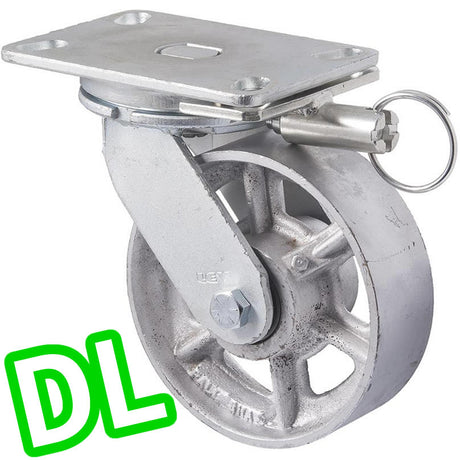

XCQ150/XZPDL 630kg Zinc Castor Swivel Direction Only Cast Iron 150mm x 50mm
Castors
XCQ150/XZPDL 630kg Zinc Castor Swivel Direction Only Cast Iron 150mm x 50mm
$198.60 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 630kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 137mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ100/XZPBR 600kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 100mm x 50mm
Castors
XUQ100/XZPBR 600kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 100mm x 50mm
$201.90 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 600kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 50mm
- Overall Height: 143mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 219mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ125/XZPDL 800kg Zinc Castor Swivel Direction Only P/U on Cast Iron 125mm x 50mm
Castors
XUQ125/XZPDL 800kg Zinc Castor Swivel Direction Only P/U on Cast Iron 125mm x 50mm
$208.60 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 800kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 108mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ150/XZP 1000kg Zinc Castor Swivel N/A P/U on Cast Iron 150mm x 50mm
$208.60 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 1000kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 137mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XCQ150/XZPBR 630kg Zinc Castor Swivel Wheel Brake Cast Iron 150mm x 50mm
Castors
XCQ150/XZPBR 630kg Zinc Castor Swivel Wheel Brake Cast Iron 150mm x 50mm
$209.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 630kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 266mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ125/XZPBR 800kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 125mm x 50mm
Castors
XUQ125/XZPBR 800kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 125mm x 50mm
$219.60 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 800kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 50mm
- Overall Height: 167mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 242mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.

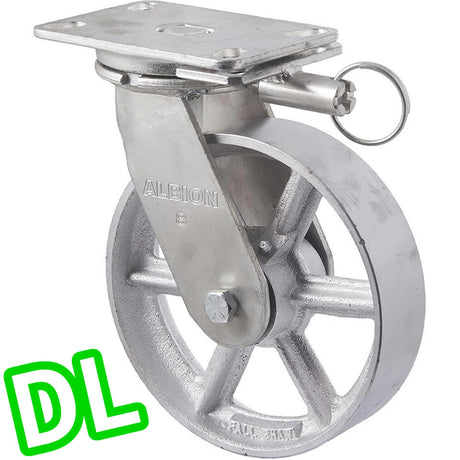

XCQ200/XZPDL 820kg Zinc Castor Swivel Direction Only Cast Iron 200mm x 50mm
Castors
XCQ200/XZPDL 820kg Zinc Castor Swivel Direction Only Cast Iron 200mm x 50mm
$220.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 820kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 162mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XCQ200/XZPBR 820kg Zinc Castor Swivel Wheel Brake Cast Iron 200mm x 50mm
Castors
XCQ200/XZPBR 820kg Zinc Castor Swivel Wheel Brake Cast Iron 200mm x 50mm
$231.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 820kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 291mm
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ200/XZP 1000kg Zinc Castor Swivel N/A P/U on Cast Iron 200mm x 50mm
$235.00 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 1000kg
- Brake Type: N/A
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 162mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ150/XZPDL 1000kg Zinc Castor Swivel Direction Only P/U on Cast Iron 150mm x 50mm
Castors
XUQ150/XZPDL 1000kg Zinc Castor Swivel Direction Only P/U on Cast Iron 150mm x 50mm
$241.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 1000kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 137mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ150/XZPBR 1000kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 150mm x 50mm
Castors
XUQ150/XZPBR 1000kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 150mm x 50mm
$252.70 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 1000kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 50mm
- Overall Height: 193mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 266mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ200/XZPDL 1000kg Zinc Castor Swivel Direction Only P/U on Cast Iron 200mm x 50mm
Castors
XUQ200/XZPDL 1000kg Zinc Castor Swivel Direction Only P/U on Cast Iron 200mm x 50mm
$268.10 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 1000kg
- Brake Type: Direction Only
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 162mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
XUQ200/XZPBR 1000kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 200mm x 50mm
Castors
XUQ200/XZPBR 1000kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 200mm x 50mm
$279.20 (Incl. GST)
Technical Specifications:
- Castor Type: Swivel
- Load Capacity: 1000kg
- Brake Type: Wheel Brake
- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Threadguard Fitted? No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Mounting Plate Dimensions: 163mm x 114mm
- Mounting Plate Hole Centres: 125/133mm x 62/87mm
- Mounting Plate Hole Diameter: 14.3mm Slotted
- Swivel Radius (inc. brake if fitted): 291mm
Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
Delivery or in-store pickup available.
