Medium Industrial (140-300kg)

Sort by:

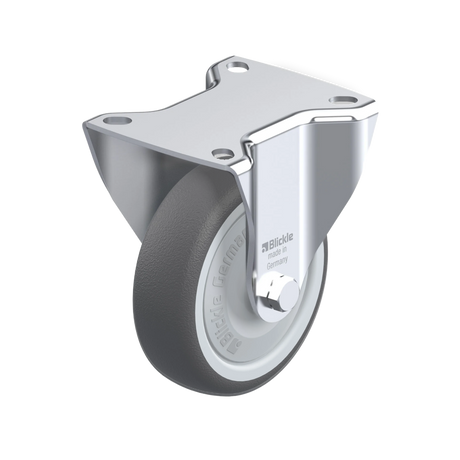

B-PATH100K-FK 200 Kg Zinc Castor <SPAN>Fixed P/U on Nylon 100mm x 32mm</span>

B-PATH100K-FK 200 Kg Zinc Castor Fixed P/U on Nylon 100mm x 32mm

$23.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 125mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 85mm
  • Mounting Plate Hole Centres: 80mm x 60mm
  • Mounting Plate Hole Diameter: 9mm
  • Swivel Radius (inc. brake if fitted):

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Delivery or in-store pickup available.


More Info
JNN100/JZF 200 Kg Zinc Castor <SPAN>Fixed Black Nylon 100mm x 35mm</span>

JNN100/JZF 200 Kg Zinc Castor Fixed Black Nylon 100mm x 35mm

$23.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted

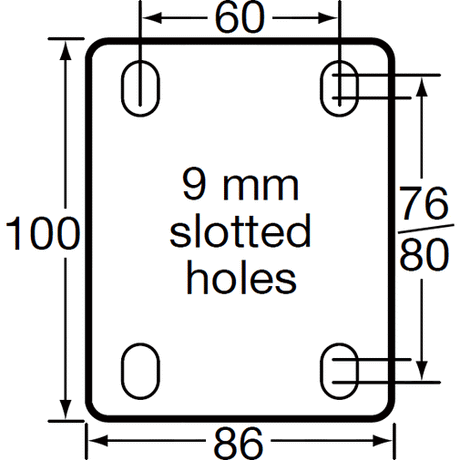

  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

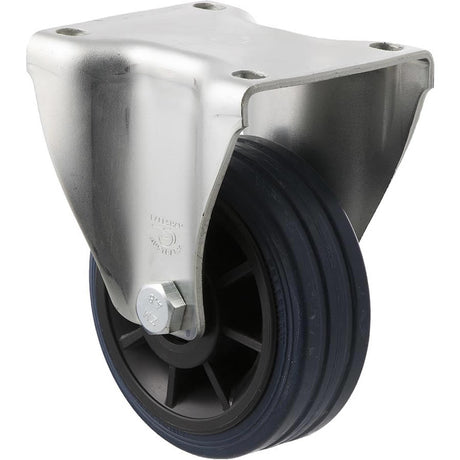

JBR100/JZF 150 Kg Zinc Castor <SPAN>Fixed Blue Rubber 100mm x 32mm</span>

JBR100/JZF 150 Kg Zinc Castor Fixed Blue Rubber 100mm x 32mm

$25.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 150 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNR100/JZF 300 Kg Zinc Castor <SPAN>Fixed Black Nylon 100mm x 35mm</span>

JNR100/JZF 300 Kg Zinc Castor Fixed Black Nylon 100mm x 35mm

$25.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN125/JZF 200 Kg Zinc Castor <SPAN>Fixed Black Nylon 125mm x 35mm</span>

JNN125/JZF 200 Kg Zinc Castor Fixed Black Nylon 125mm x 35mm

$27.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

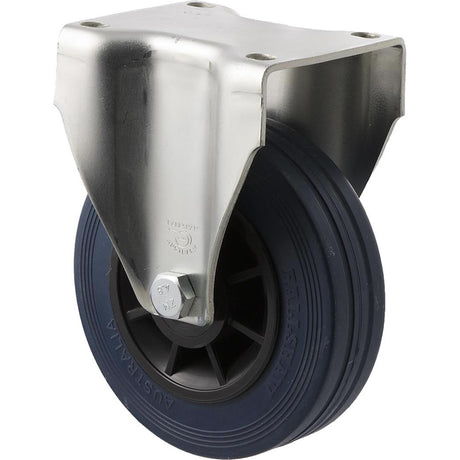

JBR125/JZF 180 Kg Zinc Castor <SPAN>Fixed Blue Rubber 125mm x 35mm</span>

JBR125/JZF 180 Kg Zinc Castor Fixed Blue Rubber 125mm x 35mm

$30.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 180 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN100/JZH 200 Kg Zinc Castor <SPAN>Bolt- Hole Black Nylon 100mm x 35mm</span>

JNN100/JZH 200 Kg Zinc Castor Bolt- Hole Black Nylon 100mm x 35mm

$30.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt- Hole
  • Load Capacity: 200 Kg
  • Brake Type: N/A

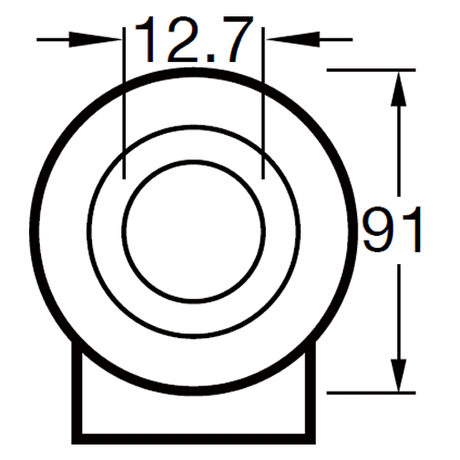

  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN100/JZP 200 Kg Zinc Castor <SPAN>Swivel Black Nylon 100mm x 35mm</span>

JNN100/JZP 200 Kg Zinc Castor Swivel Black Nylon 100mm x 35mm

$30.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

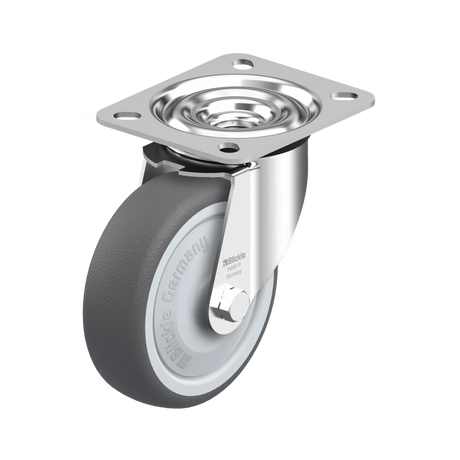

L-PATH100K-FK 200 Kg Zinc Castor <SPAN>Swivel P/U on Nylon 100mm x 32mm</span>

L-PATH100K-FK 200 Kg Zinc Castor Swivel P/U on Nylon 100mm x 32mm

$30.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 125mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 85mm
  • Mounting Plate Hole Centres: 80mm x 60mm
  • Mounting Plate Hole Diameter: 9mm
  • Swivel Radius (inc. brake if fitted): 110mm

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Delivery or in-store pickup available.


More Info

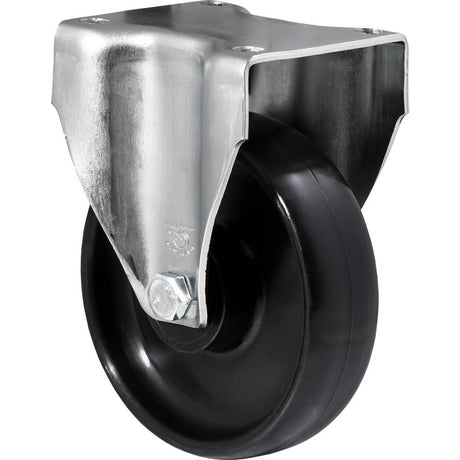

JNR125/JZF 300 Kg Zinc Castor <SPAN>Fixed Black Nylon 125mm x 35mm</span>

JNR125/JZF 300 Kg Zinc Castor Fixed Black Nylon 125mm x 35mm

$30.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

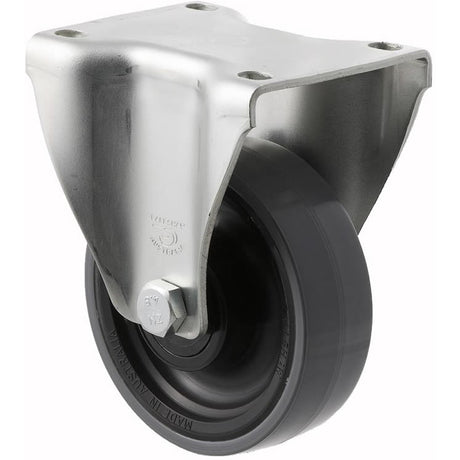

JUR100/JZF 300 Kg Zinc Castor <SPAN>Fixed P/U on Nylon 100mm x 32mm</span>

JUR100/JZF 300 Kg Zinc Castor Fixed P/U on Nylon 100mm x 32mm

$31.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

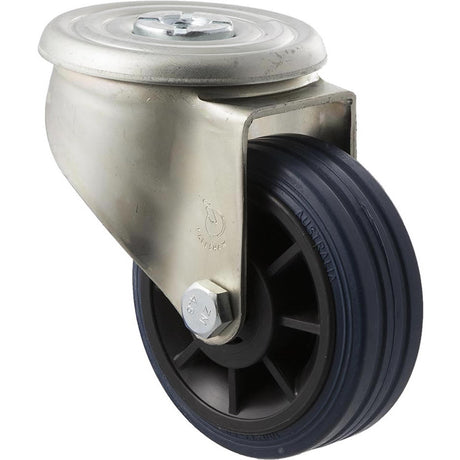

JBR100/JZH 150 Kg Zinc Castor <SPAN>Bolt-Hole Blue Rubber 100mm x 32mm</span>

JBR100/JZH 150 Kg Zinc Castor Bolt-Hole Blue Rubber 100mm x 32mm

$32.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 150 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

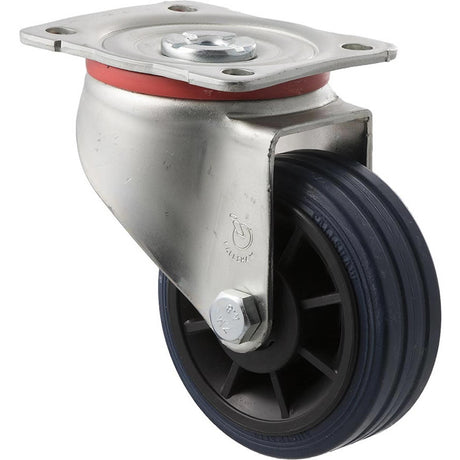

JBR100/JZP 150 Kg Zinc Castor <SPAN>Swivel Blue Rubber 100mm x 32mm</span>

JBR100/JZP 150 Kg Zinc Castor Swivel Blue Rubber 100mm x 32mm

$32.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 150 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

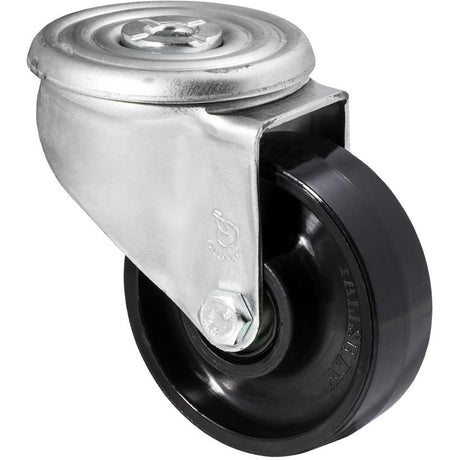

JNR100/JZH 300 Kg Zinc Castor <SPAN>Bolt- Hole Black Nylon 100mm x 35mm</span>

JNR100/JZH 300 Kg Zinc Castor Bolt- Hole Black Nylon 100mm x 35mm

$32.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt- Hole
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNR100/JZP 300 Kg Zinc Castor <SPAN>Swivel Black Nylon 100mm x 35mm</span>

JNR100/JZP 300 Kg Zinc Castor Swivel Black Nylon 100mm x 35mm

$32.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN125/JZH 200 Kg Zinc Castor <SPAN>Bolt-Hole Black Nylon 125mm x 35mm</span>

JNN125/JZH 200 Kg Zinc Castor Bolt-Hole Black Nylon 125mm x 35mm

$34.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN125/JZP 200 Kg Zinc Castor <SPAN>Swivel Black Nylon 125mm x 35mm</span>

JNN125/JZP 200 Kg Zinc Castor Swivel Black Nylon 125mm x 35mm

$34.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 200 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

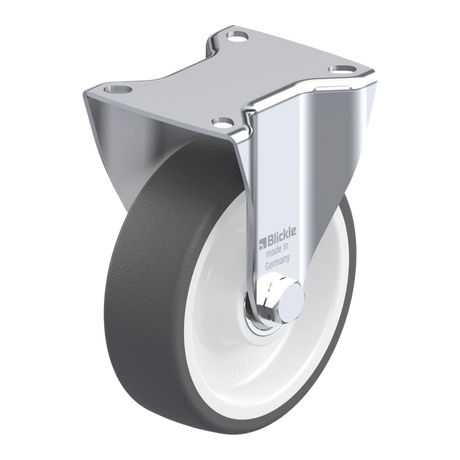

BK-POTH125K-1 350 Kg Zinc Castor <SPAN>Fixed P/U on Nylon 125mm x 40mm</span>

BK-POTH125K-1 350 Kg Zinc Castor Fixed P/U on Nylon 125mm x 40mm

$36.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 350 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 40mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 85mm
  • Mounting Plate Hole Centres: 80mm x 60mm
  • Mounting Plate Hole Diameter: 9mm
  • Swivel Radius (inc. brake if fitted):

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Delivery or in-store pickup available.


More Info

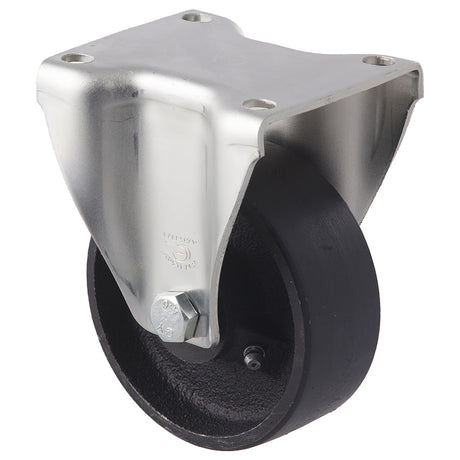

JCI100/JZF 230 Kg Zinc Castor <SPAN>Fixed Cast Iron 100mm x 38mm</span>

JCI100/JZF 230 Kg Zinc Castor Fixed Cast Iron 100mm x 38mm

$36.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 230 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 38mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

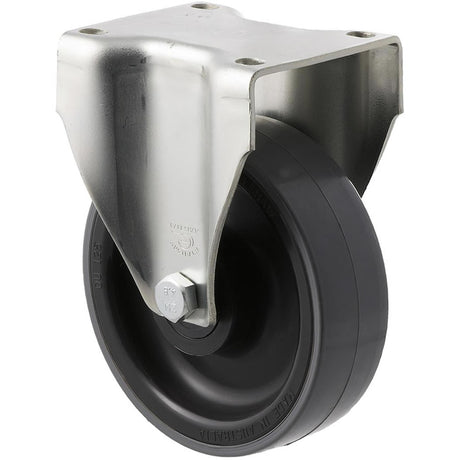

JUR125/JZF 300 Kg Zinc Castor <SPAN>Fixed P/U on Nylon 125mm x 38mm</span>

JUR125/JZF 300 Kg Zinc Castor Fixed P/U on Nylon 125mm x 38mm

$36.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 38mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JBR125/JZH 180 Kg Zinc Castor <SPAN>Bolt-Hole Blue Rubber 125mm x 35mm</span>

JBR125/JZH 180 Kg Zinc Castor Bolt-Hole Blue Rubber 125mm x 35mm

$37.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 180 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

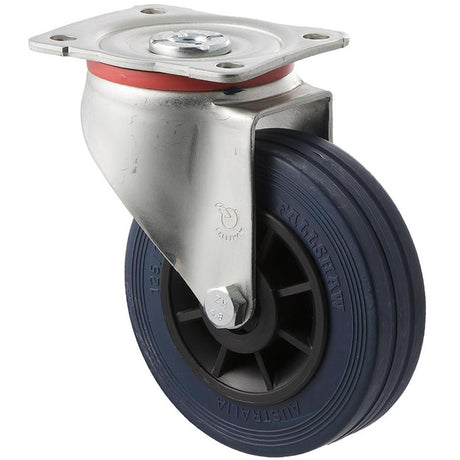

JBR125/JZP 180 Kg Zinc Castor <SPAN>Swivel Blue Rubber 125mm x 35mm</span>

JBR125/JZP 180 Kg Zinc Castor Swivel Blue Rubber 125mm x 35mm

$37.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 180 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

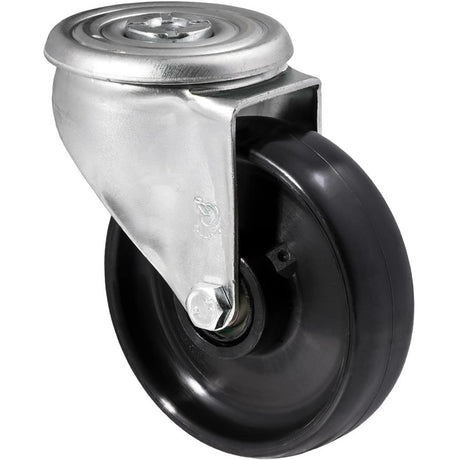

JNR125/JZH 300 Kg Zinc Castor <SPAN>Bolt-Hole Black Nylon 125mm x 35mm</span>

JNR125/JZH 300 Kg Zinc Castor Bolt-Hole Black Nylon 125mm x 35mm

$37.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNR125/JZP 300 Kg Zinc Castor <SPAN>Swivel Black Nylon 125mm x 35mm</span>

JNR125/JZP 300 Kg Zinc Castor Swivel Black Nylon 125mm x 35mm

$37.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

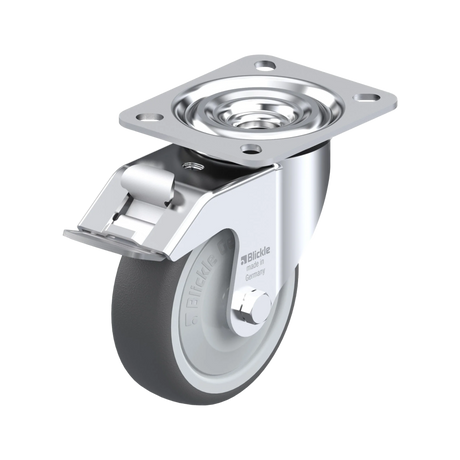

L-PATH100K-F1-FK 200 Kg Zinc Castor <SPAN>Swivel Total Brake P/U on Nylon 100mm x 32mm</span>

L-PATH100K-F1-FK 200 Kg Zinc Castor Swivel Total Brake P/U on Nylon 100mm x 32mm

$38.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 200 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 125mm
  • Axle Type: Bolted

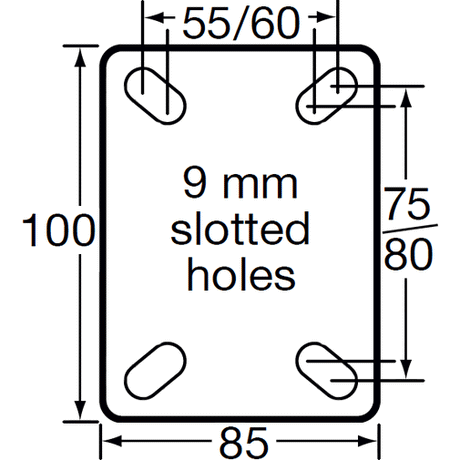

  • Mounting Plate Dimensions: 100mm x 85mm
  • Mounting Plate Hole Centres: 80mm x 60mm
  • Mounting Plate Hole Diameter: 9mm
  • Swivel Radius (inc. brake if fitted): 110mm

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Delivery or in-store pickup available.


More Info
JUR100/JZH 300 Kg Zinc Castor <SPAN>Bolt-Hole P/U on Nylon 100mm x 32mm</span>

JUR100/JZH 300 Kg Zinc Castor Bolt-Hole P/U on Nylon 100mm x 32mm

$38.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JUR100/JZP 300 Kg Zinc Castor <SPAN>Swivel P/U on Nylon 100mm x 32mm</span>

JUR100/JZP 300 Kg Zinc Castor Swivel P/U on Nylon 100mm x 32mm

$38.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

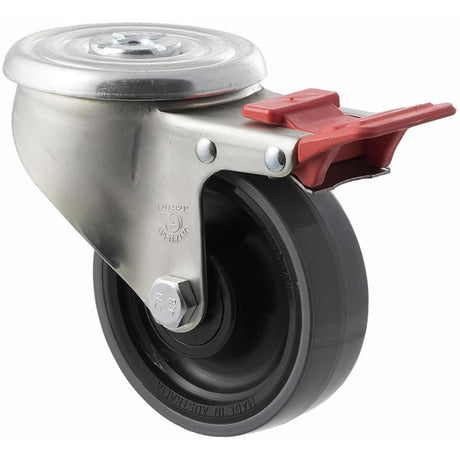

JNN100/JZHTB 200 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake Black Nylon 100mm x 35mm</span>

JNN100/JZHTB 200 Kg Zinc Castor Bolt-Hole Total Brake Black Nylon 100mm x 35mm

$41.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 200 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN100/JZPTB 200 Kg Zinc Castor <SPAN>Swivel Total Brake Black Nylon 100mm x 35mm</span>

JNN100/JZPTB 200 Kg Zinc Castor Swivel Total Brake Black Nylon 100mm x 35mm

$41.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 200 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JBR100/JZHTB 150 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake Blue Rubber 100mm x 32mm</span>

JBR100/JZHTB 150 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 100mm x 32mm

$43.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 150 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

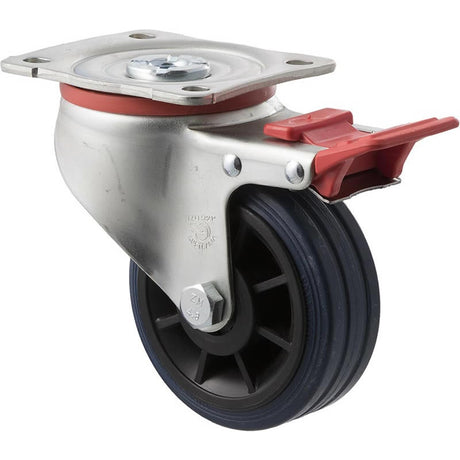

JBR100/JZPTB 150 Kg Zinc Castor <SPAN>Swivel Total Brake Blue Rubber 100mm x 32mm</span>

JBR100/JZPTB 150 Kg Zinc Castor Swivel Total Brake Blue Rubber 100mm x 32mm

$43.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 150 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

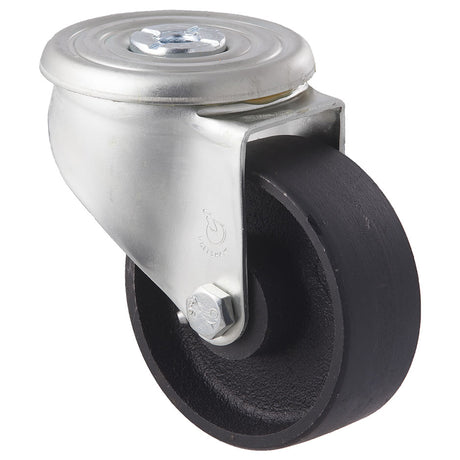

JCI100/JZH 230 Kg Zinc Castor <SPAN>Bolt-Hole Cast Iron 100mm x 38mm</span>

JCI100/JZH 230 Kg Zinc Castor Bolt-Hole Cast Iron 100mm x 38mm

$43.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 230 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 38mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.  Can be used for high temperature applications, please contact us for further information.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

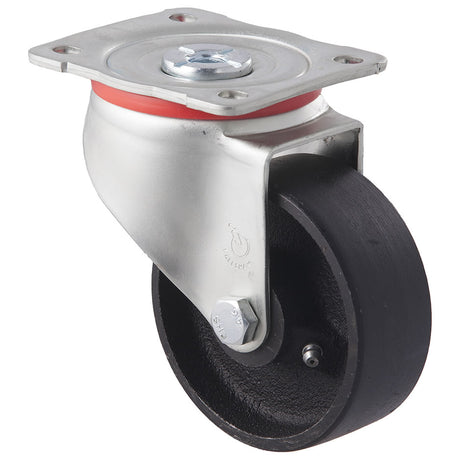

JCI100/JZP 230 Kg Zinc Castor <SPAN>Swivel Cast Iron 100mm x 38mm</span>

JCI100/JZP 230 Kg Zinc Castor Swivel Cast Iron 100mm x 38mm

$43.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 230 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 38mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.  Can be used for high temperature applications, please contact us for further information.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNR100/JZHTB 300 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake Black Nylon 100mm x 35mm</span>

JNR100/JZHTB 300 Kg Zinc Castor Bolt-Hole Total Brake Black Nylon 100mm x 35mm

$43.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

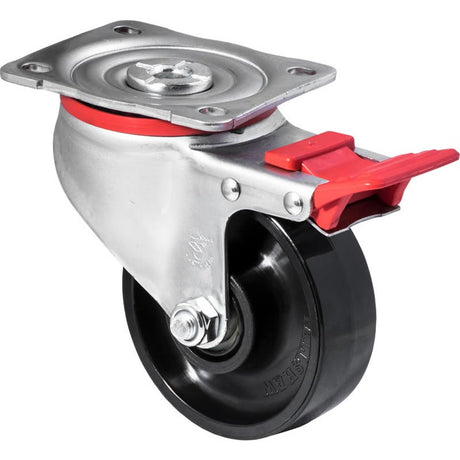

JNR100/JZPTB 300 Kg Zinc Castor <SPAN>Swivel Total Brake Black Nylon 100mm x 35mm</span>

JNR100/JZPTB 300 Kg Zinc Castor Swivel Total Brake Black Nylon 100mm x 35mm

$43.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

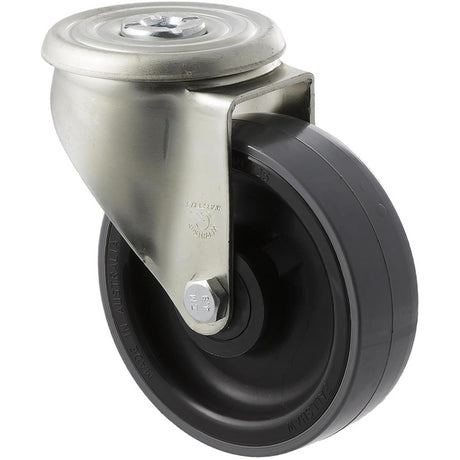

JUR125/JZH 300 Kg Zinc Castor <SPAN>Bolt-Hole P/U on Nylon 125mm x 38mm</span>

JUR125/JZH 300 Kg Zinc Castor Bolt-Hole P/U on Nylon 125mm x 38mm

$43.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 38mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

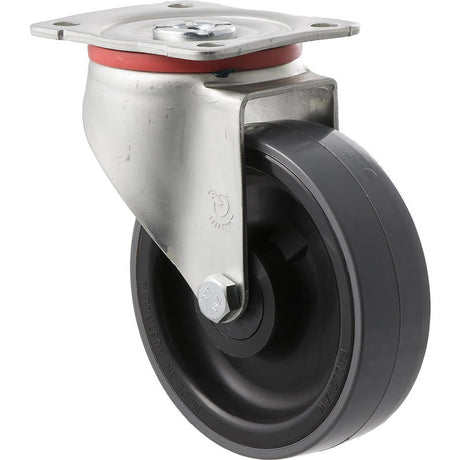

JUR125/JZP 300 Kg Zinc Castor <SPAN>Swivel P/U on Nylon 125mm x 38mm</span>

JUR125/JZP 300 Kg Zinc Castor Swivel P/U on Nylon 125mm x 38mm

$43.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 38mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 106mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN125/JZHTB 200 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake Black Nylon 125mm x 35mm</span>

JNN125/JZHTB 200 Kg Zinc Castor Bolt-Hole Total Brake Black Nylon 125mm x 35mm

$45.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 200 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JNN125/JZPTB 200 Kg Zinc Castor <SPAN>Swivel Total Brake Black Nylon 125mm x 35mm</span>

JNN125/JZPTB 200 Kg Zinc Castor Swivel Total Brake Black Nylon 125mm x 35mm

$45.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 200 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

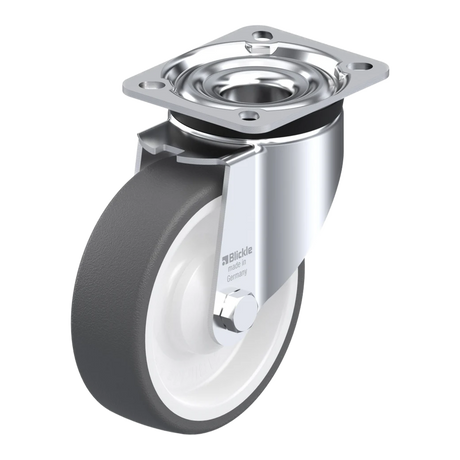

LK-POTH125K-1 350 Kg Zinc Castor <SPAN>Swivel P/U on Nylon 125mm x 40mm</span>

LK-POTH125K-1 350 Kg Zinc Castor Swivel P/U on Nylon 125mm x 40mm

$46.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 350 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 40mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 85mm
  • Mounting Plate Hole Centres: 80mm x 60mm
  • Mounting Plate Hole Diameter: 9mm
  • Swivel Radius (inc. brake if fitted): 120mm

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Delivery or in-store pickup available.


More Info

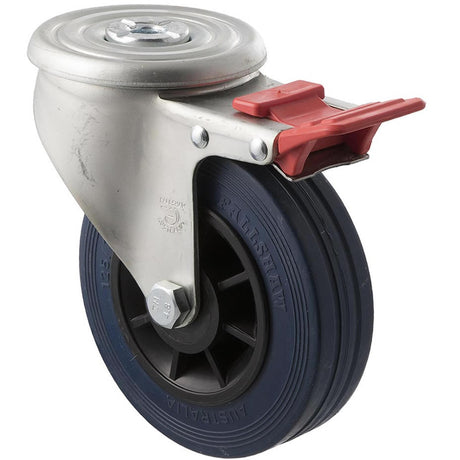

JBR125/JZHTB 180 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake Blue Rubber 125mm x 35mm</span>

JBR125/JZHTB 180 Kg Zinc Castor Bolt-Hole Total Brake Blue Rubber 125mm x 35mm

$48.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 180 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

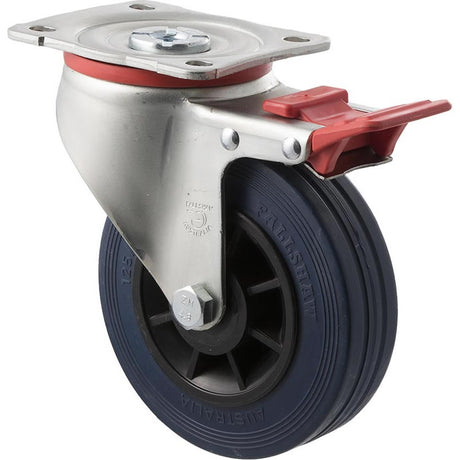

JBR125/JZPTB 180 Kg Zinc Castor <SPAN>Swivel Total Brake Blue Rubber 125mm x 35mm</span>

JBR125/JZPTB 180 Kg Zinc Castor Swivel Total Brake Blue Rubber 125mm x 35mm

$48.00 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 180 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial blue rubber castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

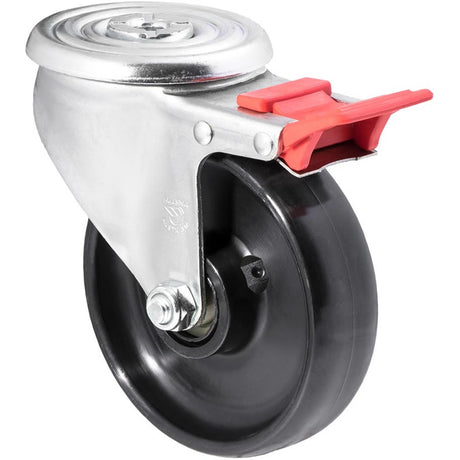

JNR125/JZHTB 300 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake Black Nylon 125mm x 35mm</span>

JNR125/JZHTB 300 Kg Zinc Castor Bolt-Hole Total Brake Black Nylon 125mm x 35mm

$48.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

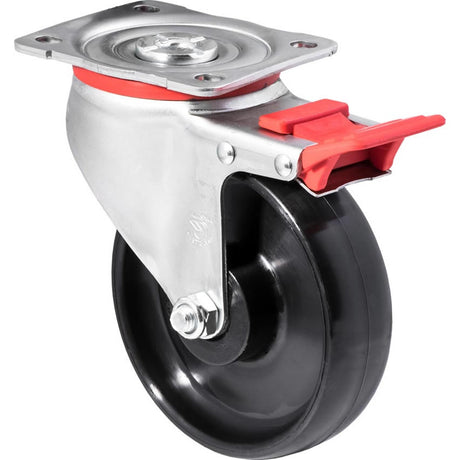

JNR125/JZPTB 300 Kg Zinc Castor <SPAN>Swivel Total Brake Black Nylon 125mm x 35mm</span>

JNR125/JZPTB 300 Kg Zinc Castor Swivel Total Brake Black Nylon 125mm x 35mm

$48.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: Black Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 35mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial black nylon castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JUR100/JZHTB 300 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake P/U on Nylon 100mm x 32mm</span>

JUR100/JZHTB 300 Kg Zinc Castor Bolt-Hole Total Brake P/U on Nylon 100mm x 32mm

$49.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
JUR100/JZPTB 300 Kg Zinc Castor <SPAN>Swivel Total Brake P/U on Nylon 100mm x 32mm</span>

JUR100/JZPTB 300 Kg Zinc Castor Swivel Total Brake P/U on Nylon 100mm x 32mm

$49.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 129mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

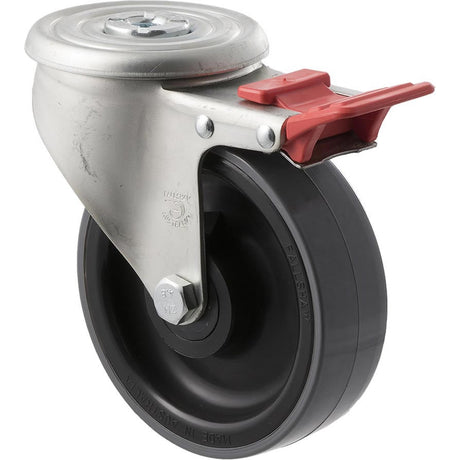

JUR125/JZHTB 300 Kg Zinc Castor <SPAN>Bolt-Hole Total Brake P/U on Nylon 125mm x 38mm</span>

JUR125/JZHTB 300 Kg Zinc Castor Bolt-Hole Total Brake P/U on Nylon 125mm x 38mm

$54.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Bolt-Hole
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 38mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions:
  • Mounting Plate Hole Centres:
  • Mounting Plate Hole Diameter:
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info

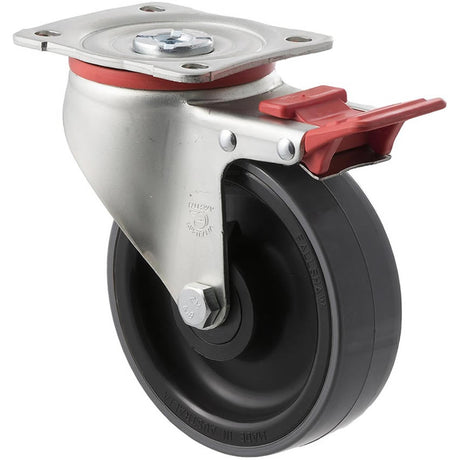

JUR125/JZPTB 300 Kg Zinc Castor <SPAN>Swivel Total Brake P/U on Nylon 125mm x 38mm</span>

JUR125/JZPTB 300 Kg Zinc Castor Swivel Total Brake P/U on Nylon 125mm x 38mm

$54.50 (Incl. GST)

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 300 Kg
  • Brake Type: Total Brake
  • Mounting Type: Plate
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Needle Roller
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 38mm
  • Overall Height: 155mm
  • Axle Type: Bolted
  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted): 122mm

Medium industrial polyurethane castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.


More Info
