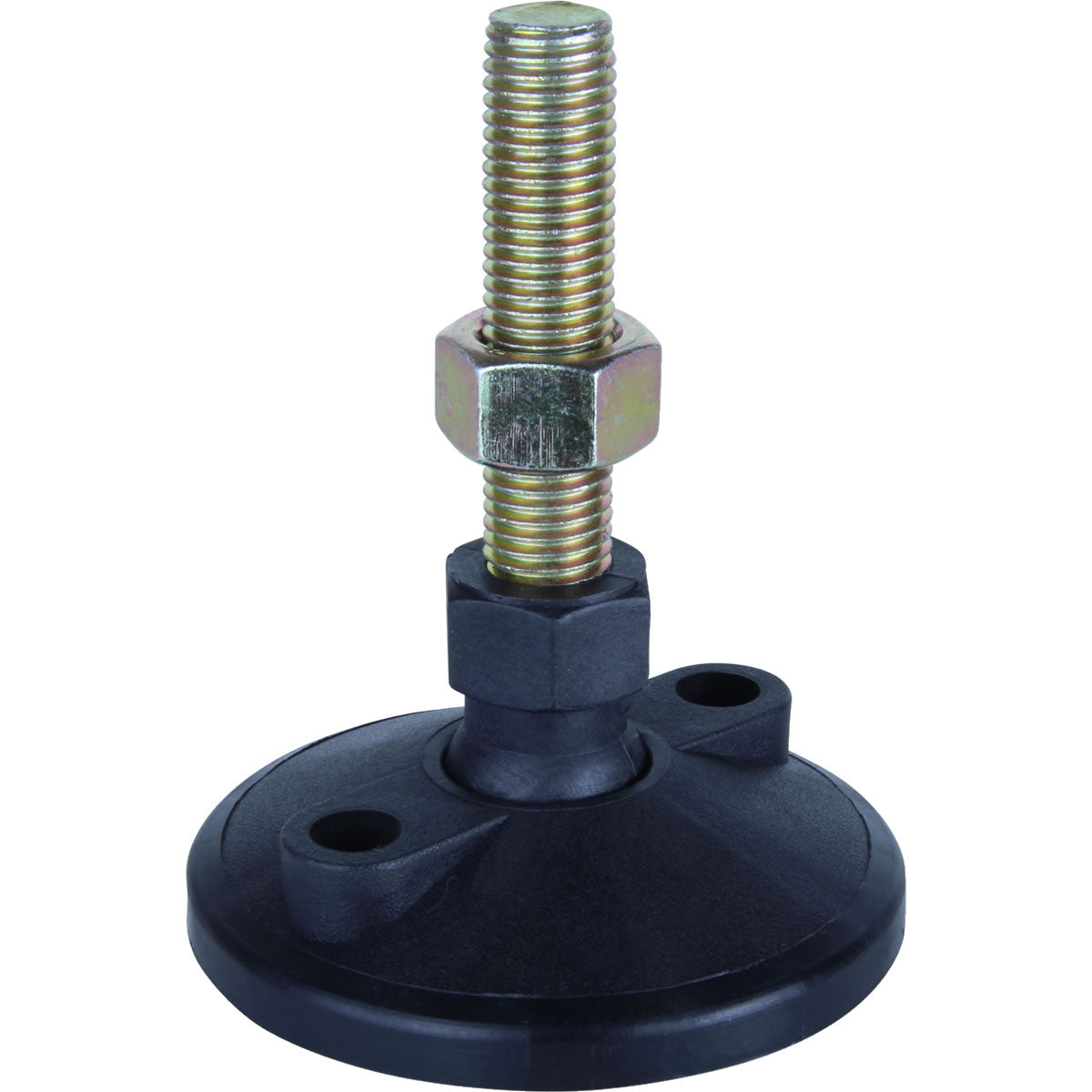

30/90/M16/65 1000kg 90mm x M16 Zinc Plated Levelling Feet

Description

Technical Specifications:

  • Material: Ball Jointed Bolt-Down Mild Steel
  • Size: 90mm x M16
  • Base Diameter: 90mm
  • Thread Length: 65mm
  • Base & Knuckle Height: 51mm
  • Base Only Height: 25mm
  • Thread Size: M16
  • Thread Type: Zinc Plated
  • Pivot Angle: 40 Deg
  • Load Rating - Vertical: 1000kg
  • Bolt Down Hole Centres: 60mm
  • Bolt Down Hole Diameter: 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Download Specifications PDF

Delivery or in-store pickup available.

$17.40 (Incl. GST)
