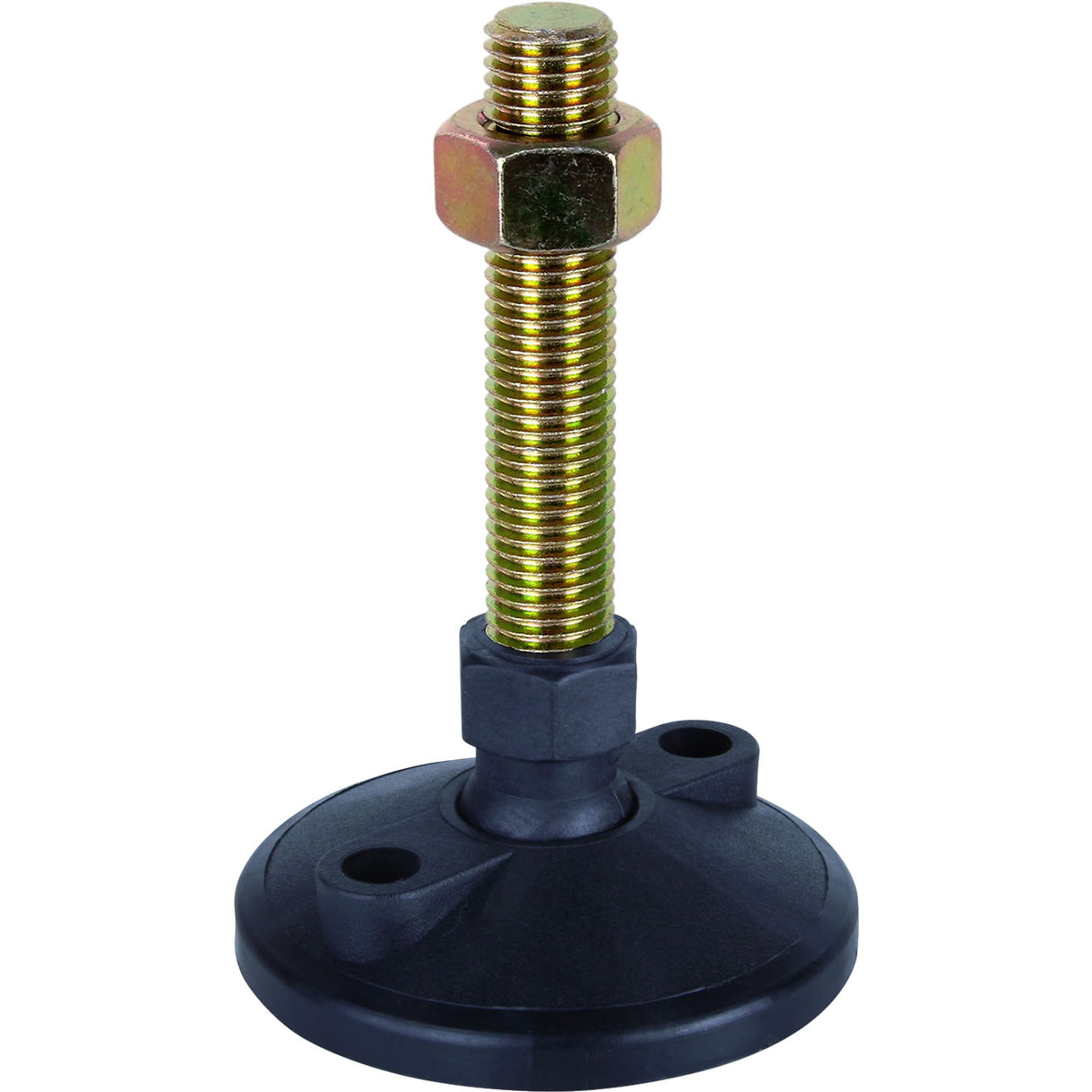

30/90/M20/100 1000 Kg 90mm x M20 Zinc Plated Levelling Feet

Description

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 90mm x M20
  • -Base Diameter- 90mm
  • -Thread Length- 100mm
  • -Base+Knuckle Height- 51mm
  • -Base Only Height- 25mm
  • -Thread Size- M20
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg
  • -Bolt Down Hole Centres- 60mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

$34.35 (Incl. GST)

Make an enquiry about this product: 30/90/M20/100 1000 Kg 90mm x M20 Zinc Plated Levelling Feet
