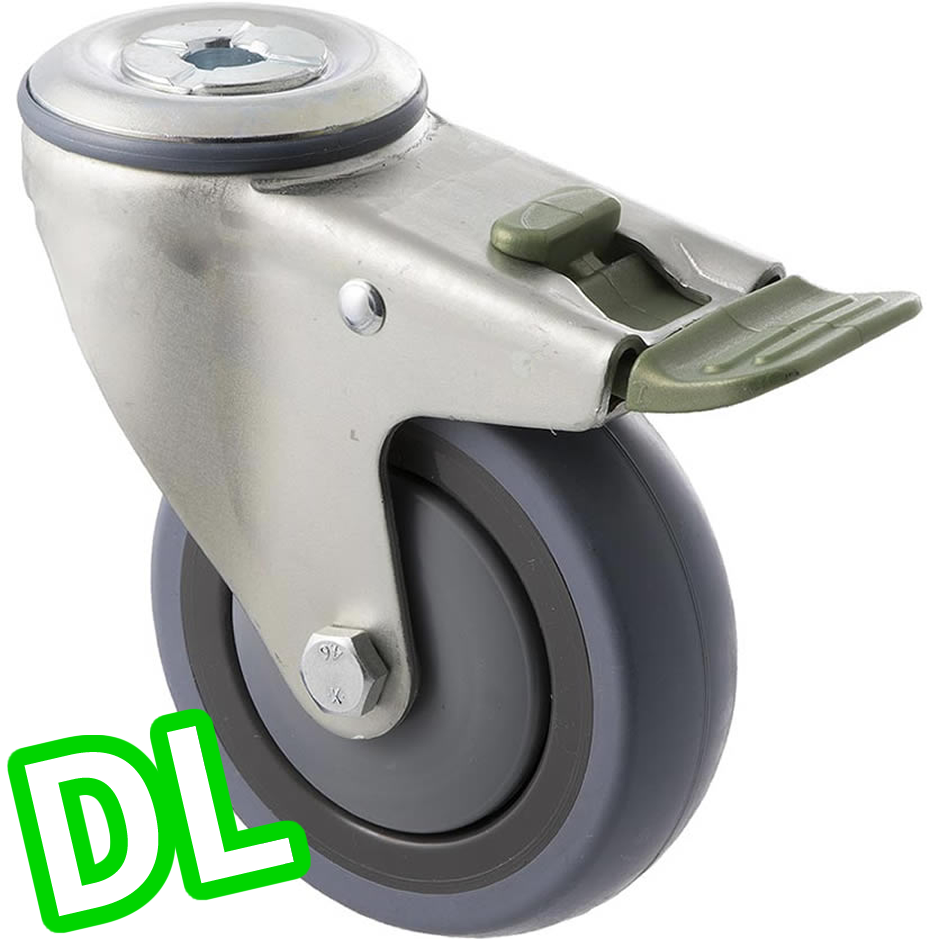

STQ100G/MZHDL 100 Kg Zinc Castor Bolt-Hole Direction Lock Only Grey Rubber 100mm x 30mm

Description

Technical Specifications

  • -Castor Type- Bolt-Hole
  • -Load Capacity- 100 Kg
  • -Brake Type- Direction Only

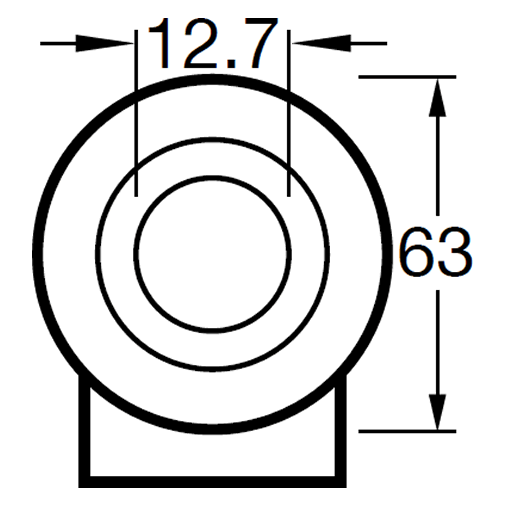

  • -Mounting Type- 12.7mm Bolt-Hole
  • -Wheel Material- Grey Rubber
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- Yes
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 30mm
  • -Overall Height- 135mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial grey rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

$37.35 (Incl. GST)
