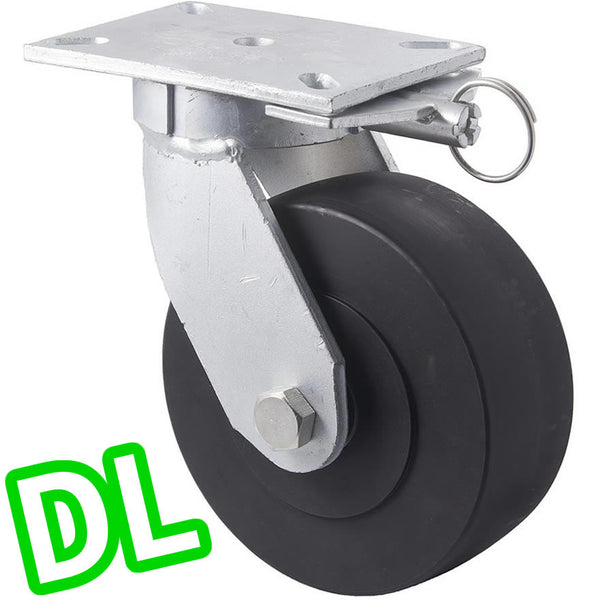

VXQ200/VZPDL - 2450 kg Swivel Plate Direction Lock Only 200mm High Impact Polymer

$694.20 $730.75
GST included.
Shipping calculated at checkout.
Data Sheet PDF Data Sheet PDF Mounting Solutions Mounting Solutions

Order within:

00:00:00 for same day dispatch.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours
Contact us for discounts on trade and large quantity orders!

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 2450 kg
  • Brake Type:Direction Only

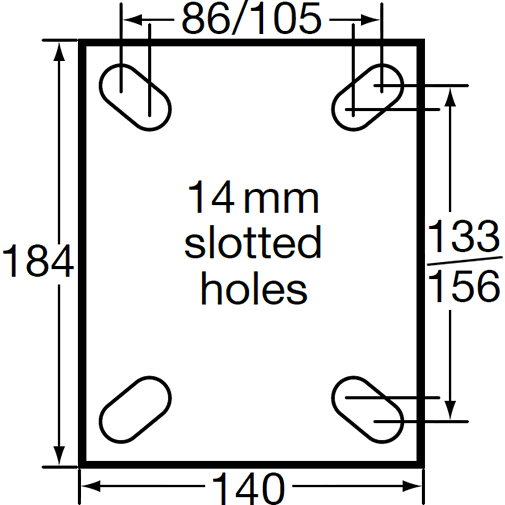

  • Mounting Type: Plate
  • Wheel Material: High Impact Polymer
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 200mm x 75mm
  • Overall Height: 267mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 165mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Ultra heavy duty industrial HIP (high impact polymer) castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.

Related Options..

  • Maximum Capacity
    2,450 kg
  • Overall Height
    267 mm
  • Wheel Diameter
    200 mm
  • Tread Width
    75 mm
  • Tread Material
    High Impact Polymer
  • Castor Type
    Swivel
  • Mounting Type
    Mounting Plate
  • Frame Finish
    Zinc
  • Bearing Type
    Ball Bearing
  • Axle Type
    Bolted

Enquire about the VXQ200/VZPDL - 2450 kg Swivel Plate Direction Lock Only 200mm High Impact Polymer
