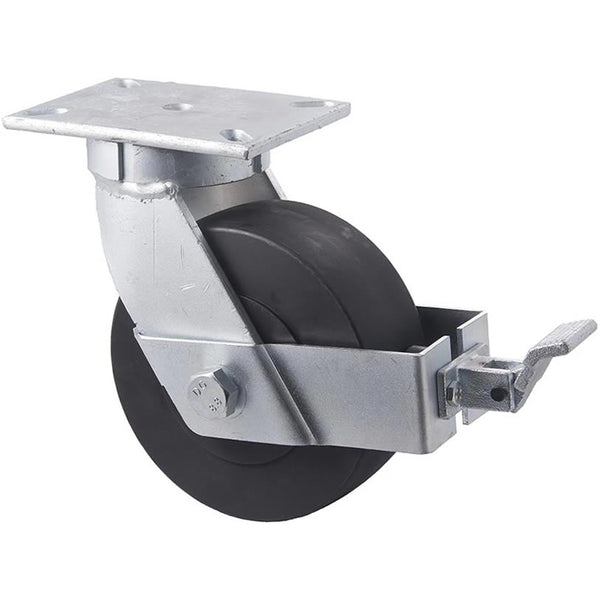

VXQ200/VZPBR 2450 Kg Zinc Castor Swivel Wheel Brake High Impact Polymer 200mm x 75mm

Description

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 2450 Kg
  • Brake Type: Wheel Brake
  • Mounting Type: Plate
  • Wheel Material: High Impact Polymer
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 200mm x 75mm
  • Overall Height: 267mm
  • Axle Type: Bolted

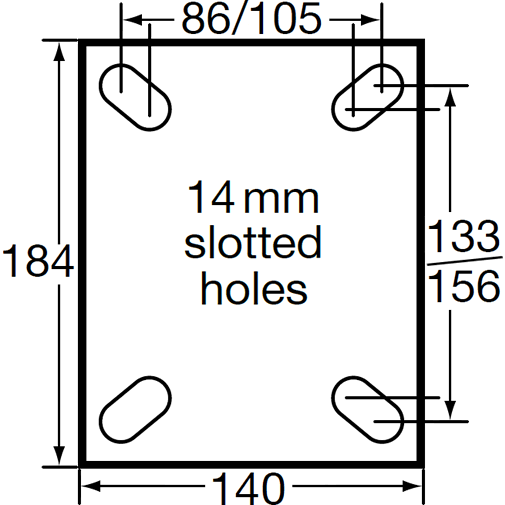

  • Mounting Plate Dimensions: 184mm x 140mm
  • Mounting Plate Hole Centres: 133/156mm x 86/105mm
  • Mounting Plate Hole Diameter: 14mm Slotted
  • Swivel Radius (inc. brake if fitted): 317mm

Ultra heavy duty industrial HIP (high impact polymer) castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.

Download Specifications PDF

Delivery or in-store pickup available.

$617.00 (Incl. GST)
