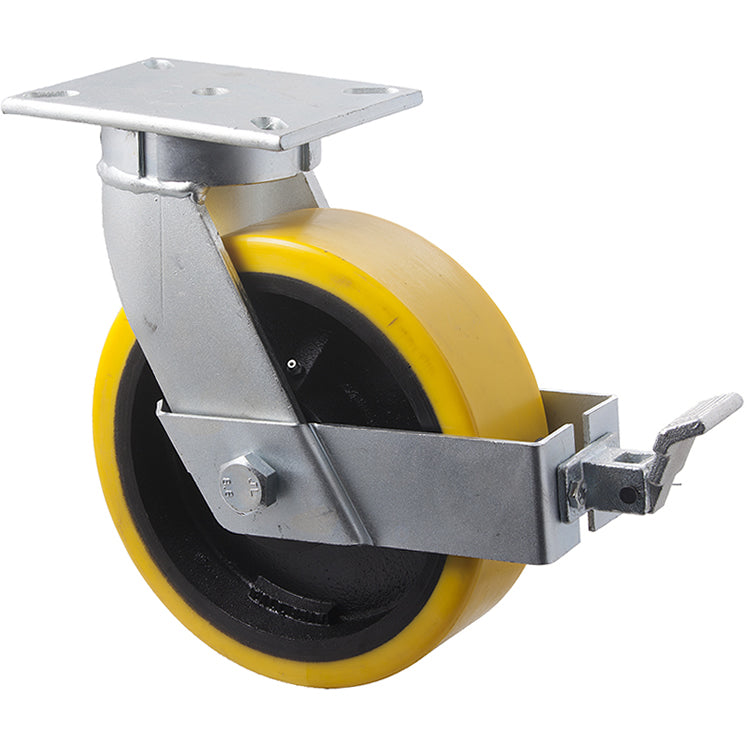

VUQ250/VZPBR 2000 Kg Zinc Castor Swivel Wheel Brake P/U on Cast Iron 250mm x 75mm

Description

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 2000 Kg
  • Brake Type: Wheel Brake
  • Mounting Type: Plate
  • Wheel Material: P/U on Cast Iron
  • Wheel Bearing Type: Ball Bearing
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 250mm x 75mm
  • Overall Height: 318mm
  • Axle Type: Bolted

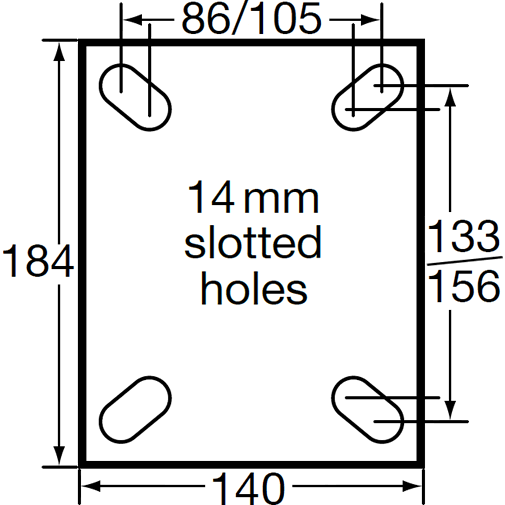

  • Mounting Plate Dimensions: 184mm x 140mm
  • Mounting Plate Hole Centres: 133/156mm x 86/105mm
  • Mounting Plate Hole Diameter: 14mm Slotted
  • Swivel Radius (inc. brake if fitted): 353mm

Ultra heavy duty industrial polyurethane castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.

Download Specifications PDF

Delivery or in-store pickup available.

$615.50 (Incl. GST)
