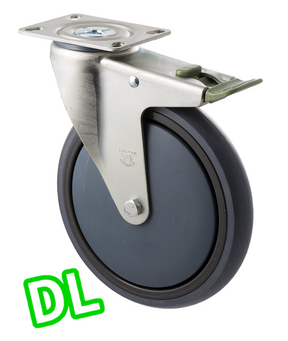

QTQ175G/MZPDL - 200 kg Swivel Plate Directional Lock 175mm Grey Rubber
Shipping calculated at checkout.
Data Sheet PDF
QTQ175G/MZPDL - 200 kg Swivel Plate Directional Lock 175mm Grey Rubber - ISO is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
QTQ175G/MZPDL - 200 kg Swivel Plate Directional Lock 175mm Grey Rubber - ISO is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 200 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: Grey Rubber
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: Yes
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 175mm x 34mm
- Overall Height: 214mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 153mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Australian made light industrial grey rubber castor. Used commonly in the medical industry.
Related Options..
MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
-
Maximum Capacity200 kg
-
Overall Height214 mm
-
Wheel Diameter175 mm
-
Tread Width34 mm
-
Tread MaterialGrey Rubber
-
Castor TypeSwivel
-
Mounting TypeMounting Plate
-
Frame FinishZinc
-
Bearing TypeBall Bearing
-
Axle TypeBolted
