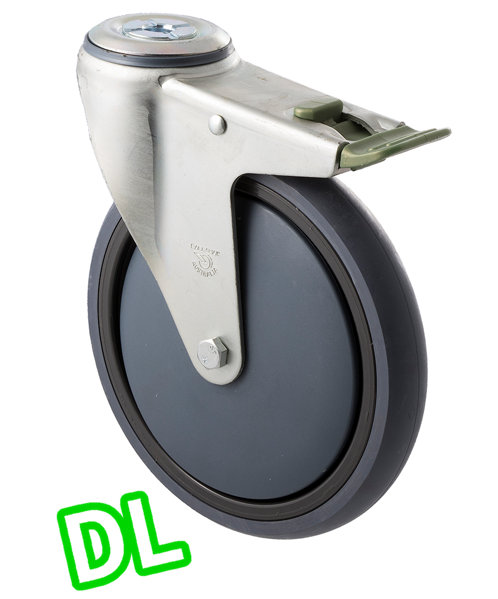

QTQ175G/MZHDL - 200 kg Bolt Hole Direction Lock Only 175mm Grey Rubber
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
QTQ175G/MZHDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
QTQ175G/MZHDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU QTQ175G/MZHDL
-
Castor TypeSwivel
-
Capacity200 kg
-
Overall Height214 mm
- Wheel
-
Wheel DiameterØ150 mm
-
Tread Width34 mm
-
Tread MaterialGrey Rubber
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 200 kg
- Brake Type:Direction Only
- Mounting Type: Bolt Hole
- Wheel Material: Grey Rubber
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: Yes
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 175mm x 34mm
- Overall Height: 214mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 153mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Australian made light industrial grey rubber castor. Used commonly in the medical industry.
Click the wheel only option to view other QTQ175G frame options.
