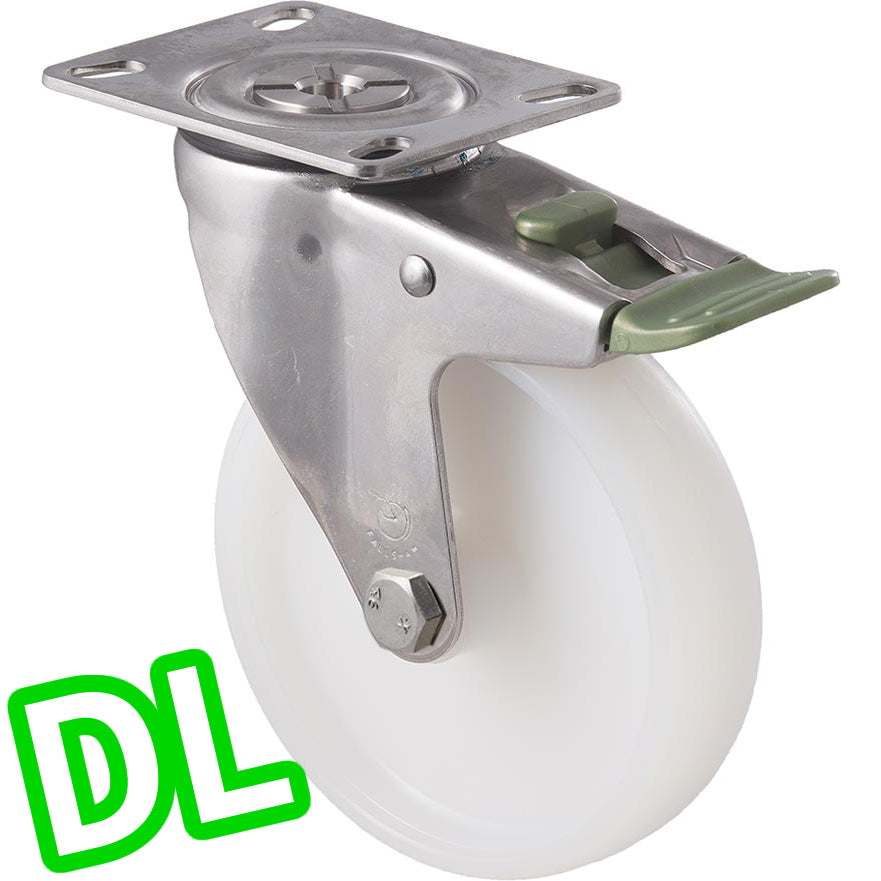

MNN125WS/MSPDL 150 kg Stainless Steel Swivel Plate Direction Lock Only 125mm White Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MNN125WS/MSPDL-B is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
MNN125WS/MSPDL-B is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU MNN125WS/MSPDL-B
-
Castor TypeSwivel
-
Capacity150 kg
-
Overall Height161 mm
- Wheel
-
Wheel DiameterØ125 mm
-
Tread Width32 mm
-
Tread MaterialWhite Nylon
- Frame
-
Frame FinishStainless Steel
-
Axle TypeBolted
- Bearing & Bore
-
TypePlain Bore
-
Reducer TypeStainless Steel Spacer Tube
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 150 kg
- Brake Type:Direction Only

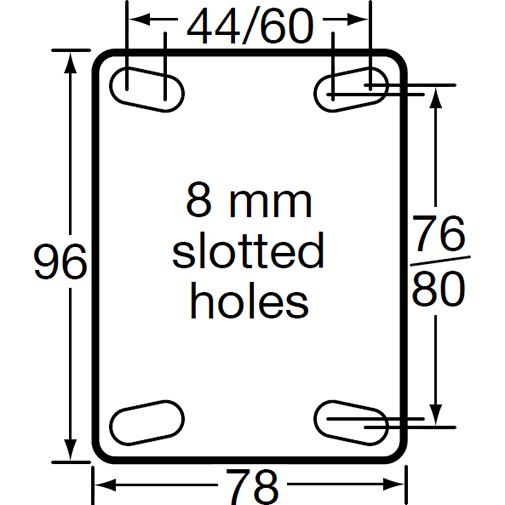

- Mounting Type: Plate
- Wheel Material: White Nylon
- Wheel Bearing Type: Plain S/S Bush
- Thread Guard Fitted?: No
- Frame Finish: Stainless Steel
- Wheel Diameter X Tread Width: 125mm x 32mm
- Overall Height: 161mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments.
