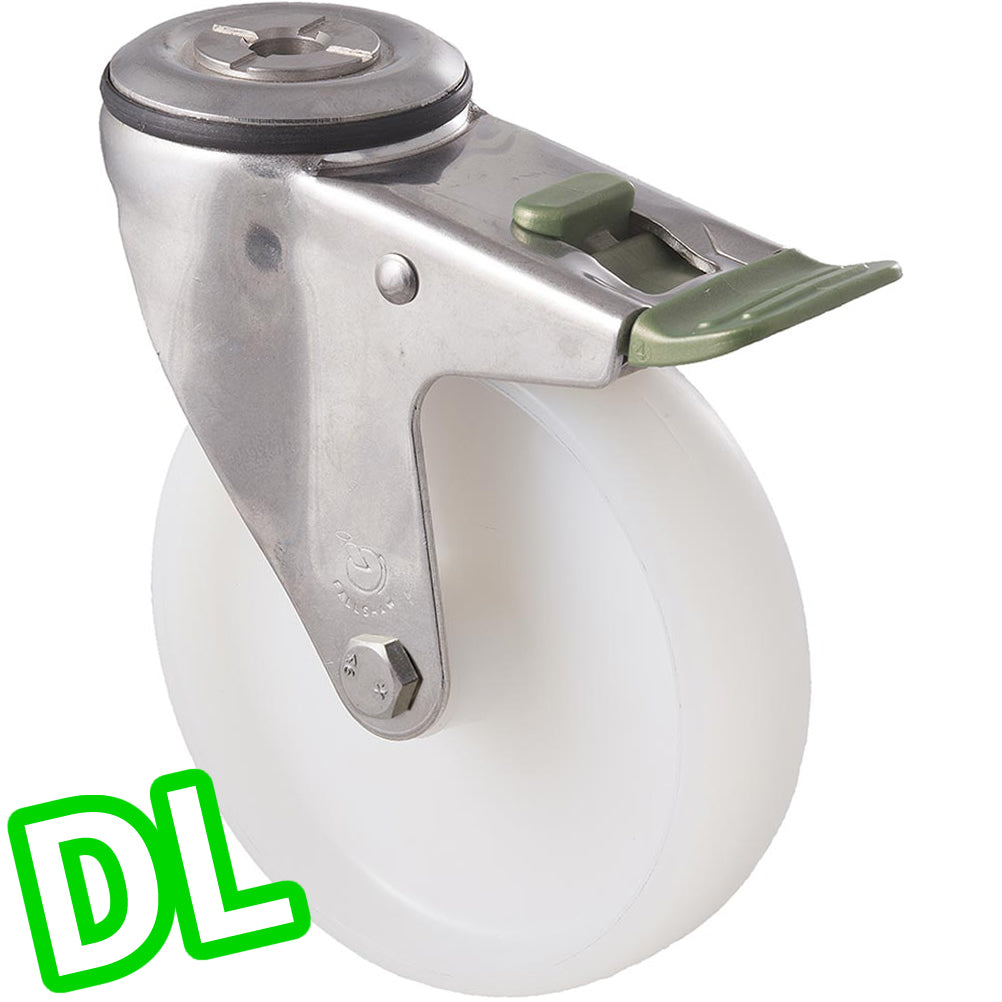

MNN125WS/MSHDL 150 kg Stainless Steel Bolt-Hole Direction Lock Only 125mm White Nylon

$80.80 $85.05
GST included.
Shipping calculated at checkout.
Data sheet Data Sheet PDF Mounting solutions Mounting Solutions

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications

  • Castor Type: Bolt-Hole
  • Load Capacity: 150 kg
  • Brake Type:Direction Only
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: White Nylon
  • Wheel Bearing Type: Plain S/S Bush
  • Thread Guard Fitted?: No
  • Frame Finish: Stainless Steel
  • Wheel Diameter X Tread Width: 125mm x 32mm
  • Overall Height: 161mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments.

Related Options..

  • Castor Type
    Bolt-Hole Swivel
  • Mounting Type
    Bolt Hole
  • Bolt Hole Diameter
    12.7 mm
  • Frame Finish
    Stainless Steel
  • Maximum Capacity
    150 kg
  • Overall Height
    161 mm
  • Wheel Diameter
    125 mm
  • Tread Material
    White Nylon
  • Tread/Wheel Width
    32 mm
  • Axle Type
    Bolted
  • Bearing Type
    Plain S/S Bush
  • Product Range
    Premium Stainless Steel Castor

Enquire about the MNN125WS/MSHDL 150 kg Stainless Steel Bolt-Hole Direction Lock Only 125mm White Nylon
