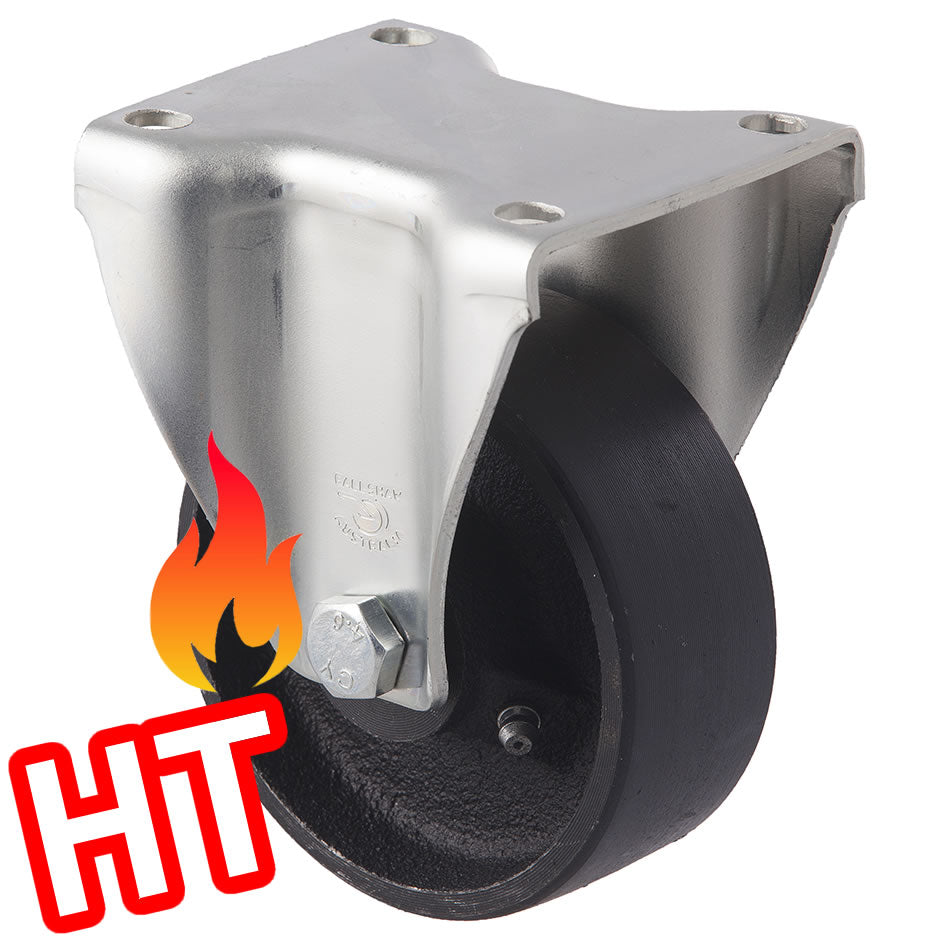

JCI100/JZF 230 Kg Zinc Castor Fixed Cast Iron 100mm x 38mm


Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 230 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 38mm
  • Overall Height: 129mm
  • Axle Type: Bolted

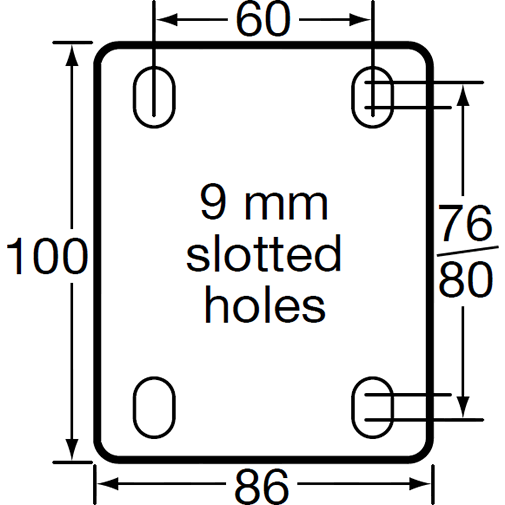

  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging. Can be used for high temperature applications, please contact us for further information.

Download Specifications PDF

Delivery or in-store pickup available.

$38.90 (Incl. GST)
