Save 5%
In stock

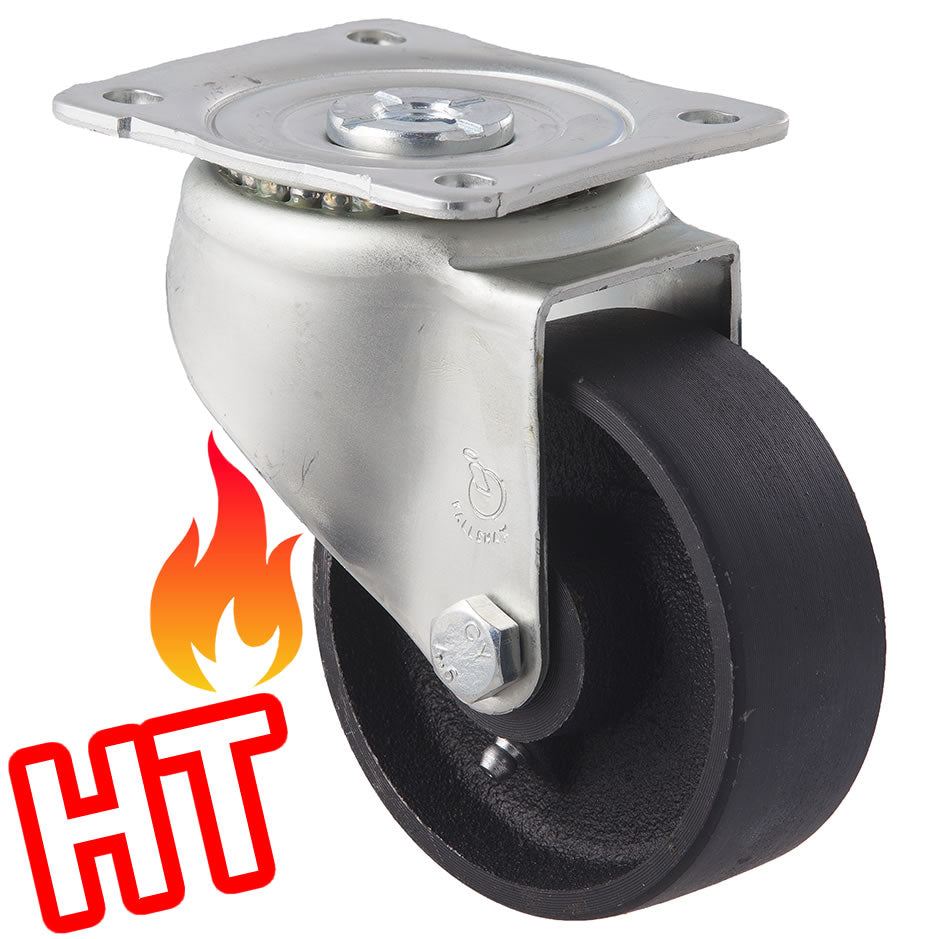

JCI100/JZPHT - 230 kg HIGH TEMP Swivel Plate 100mm Cast Iron
Bundle & Save
Sale price
$60.85
Regular price
$64.10
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
JCI100/JZPHT is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Contact us
for discounts on trade and large quantity orders!
Bundle & Save
Sale price
$60.85
Regular price
$64.10
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
JCI100/JZPHT is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU JCI100/JZPHT
-
Castor TypeSwivel
-
Capacity230 kg
-
Overall Height129 mm
- Wheel
-
Wheel DiameterØ100 mm
-
Tread Width38 mm
-
Tread MaterialCast Iron
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypePlain
Technical Specifications - HIGH TEMP!
- Castor Type: Swivel
- Load Capacity:
- 230 kg @ 400°C
- Brake Type: N/A

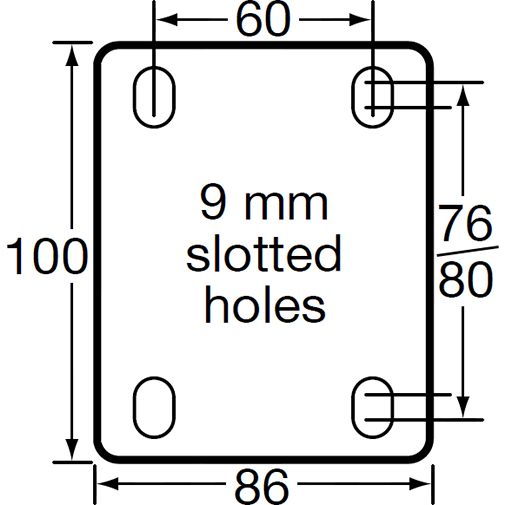

- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Plain
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 100mm x 38mm
- Overall Height: 129mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 90mm
Medium industrial high/low temp cast iron castor. General use including warehouse trolleys, engineering, transport and staging.
Click the wheel only option to view other JCI100 frame options.
