Technical Specifications
- -Brand -Tente
- -Castor Type- Swivel
- -Load Capacity- 100 Kg
- -Brake Type- N/A
- -Mounting Type- Various
- -Wheel Material- Polyurethane
- -Wheel Bearing Type- Precision Ball Bearing
- -Thread guard Fitted?- Yes
- -Frame Finish- Grey Polyamide
- -Overall Heights-
-
No Pintle -100mm
![]()
-

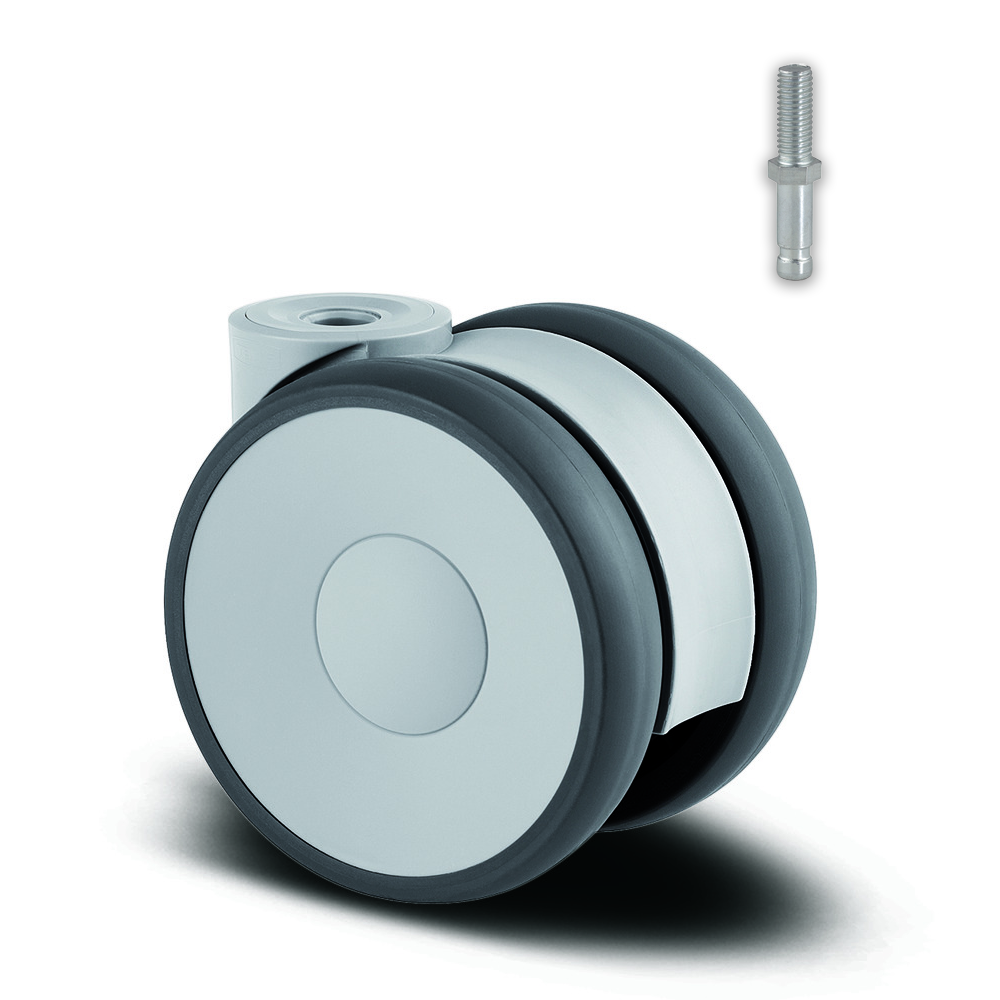

M10 x 25mm -106mm
-
M12 X 25mm -109mm
-

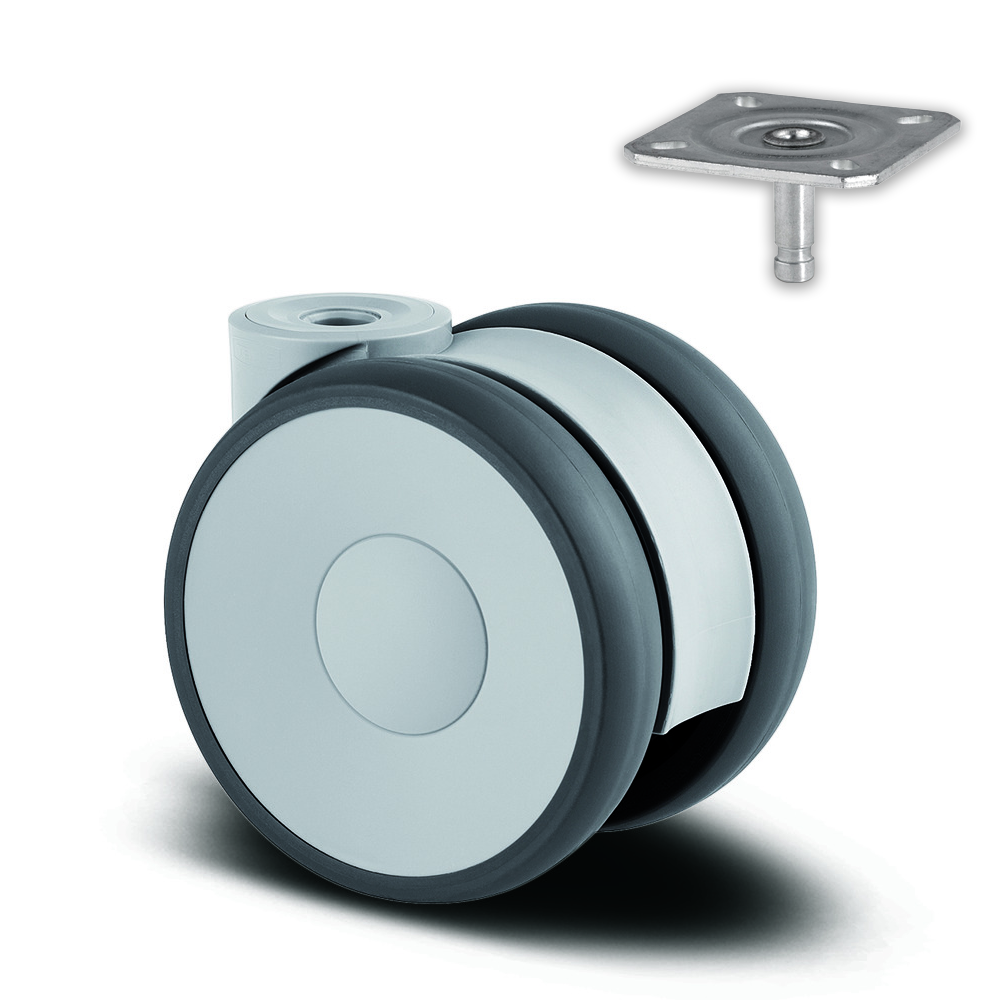

Plate -112mm (65mm square plate, 47mm/42mm x 47mm/42mm hole centres)
- -Axle Type- Internal
- -Swivel Radius (inc. brake if fitted)- 88mm

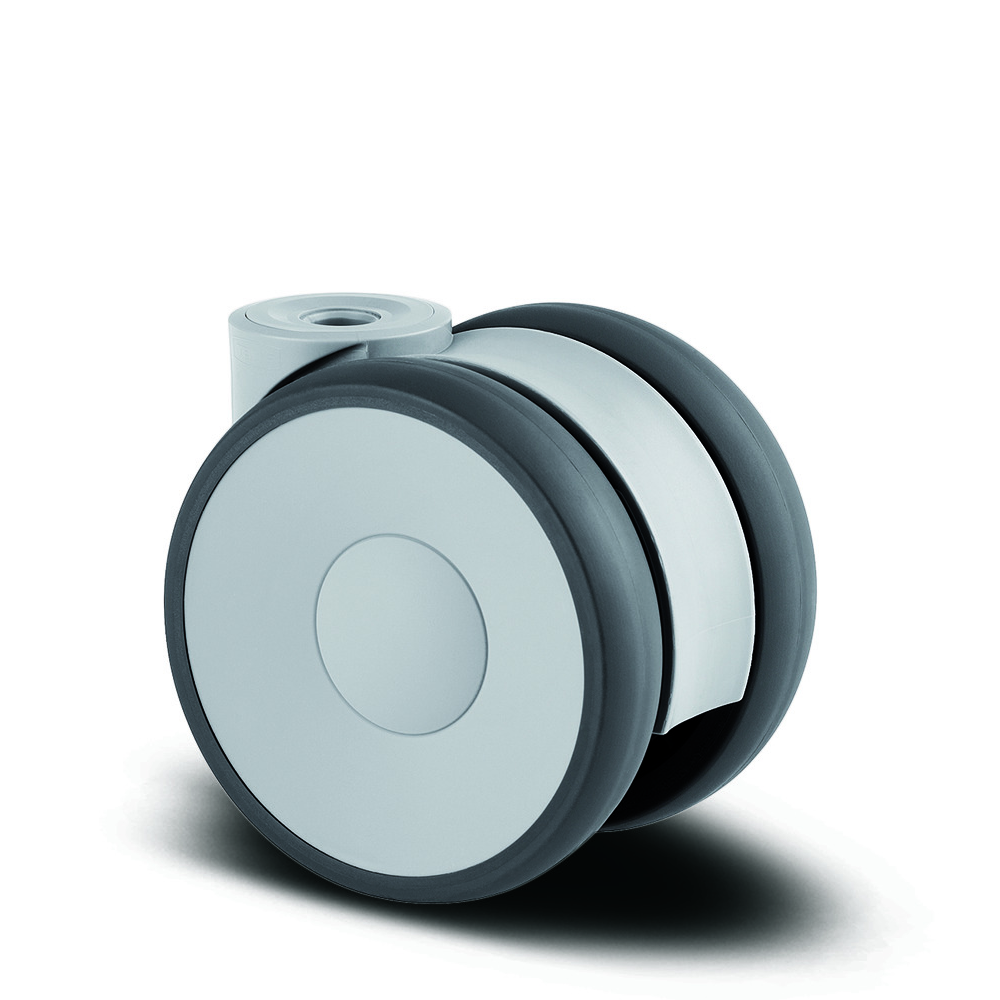

The 5920UAP100L51-11 is a robust twin-wheel swivel castor from the TENTE Linea series. It features a high-quality polyamide body and wheels, delivering excellent strength, durability, and resistance to chemicals. The wheels are equipped with precision ball bearings, ensuring exceptionally smooth, low-friction rolling and long service life.
With 2 × 100 mm diameter, 25 mm wide wheels, this twin-wheel castor provides outstanding manoeuvrability and stable load distribution, even in demanding environments. It supports 100 kg dynamic and 200 kg static loads, and performs reliably across a wide temperature range of –20 °C to +70 °C.
Compliant with EN 12528 / EN 12530, the 5920UAP100L51-11 offers durability, quiet and effortless handling, and long-term reliability, making it ideally suited for medical equipment, laboratory devices, and high-quality service trolleys.
