Technical Specifications
- -Brand -Tente
- -Castor Type- Swivel
- -Load Capacity- 50 Kg
- -Brake Type- N/A
- -Mounting Type- Various
- -Wheel Material- Polyurethane
- -Wheel Bearing Type- Plain
- -Thread guard Fitted?- Yes
- -Frame Finish- Polyamide
- -Overall Heights-
-

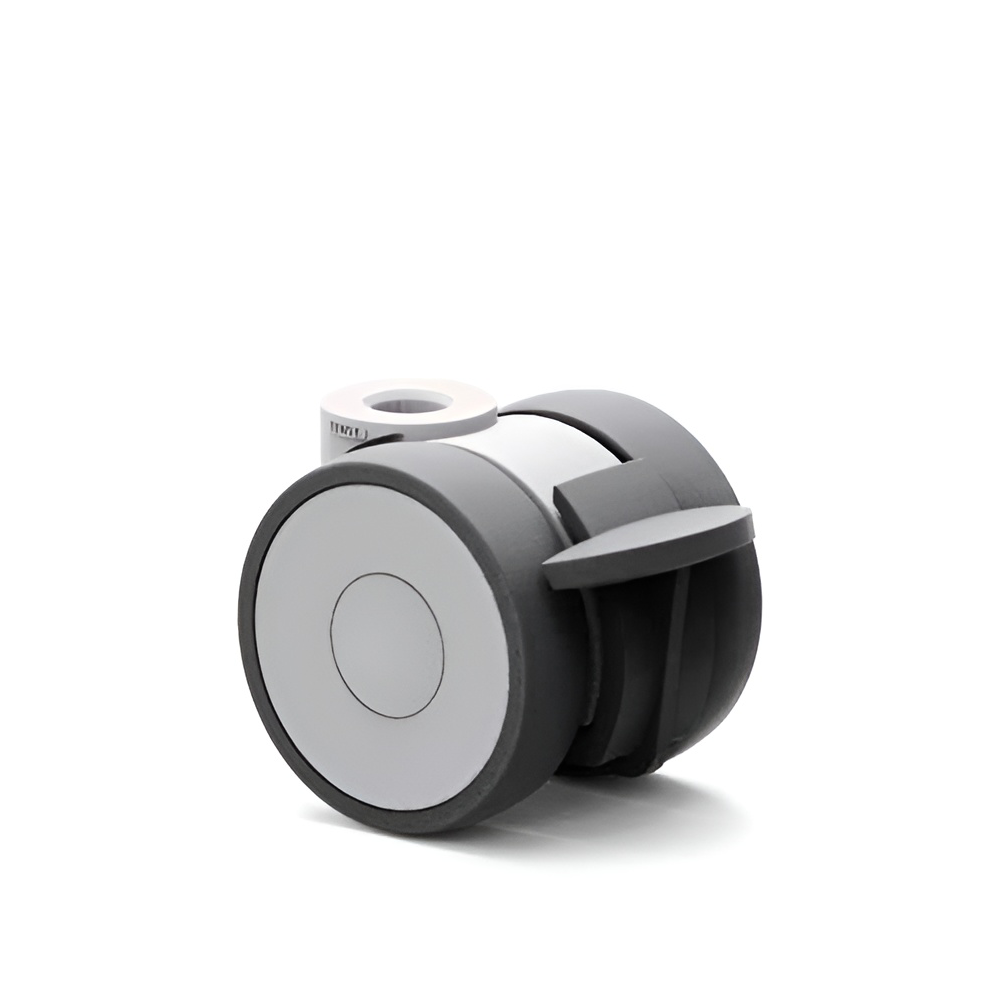

No Pintle -50.5mm
![]()
-

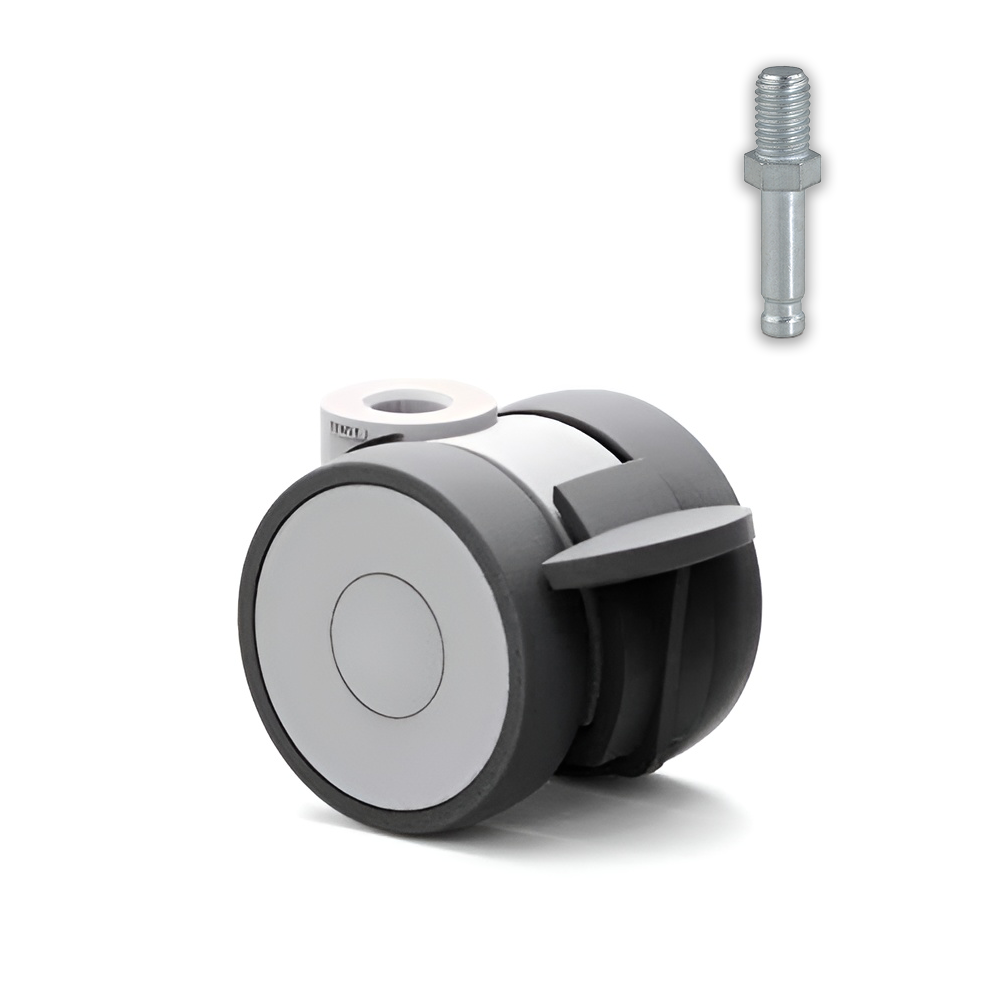

M8 x 25mm -56.5mm
-

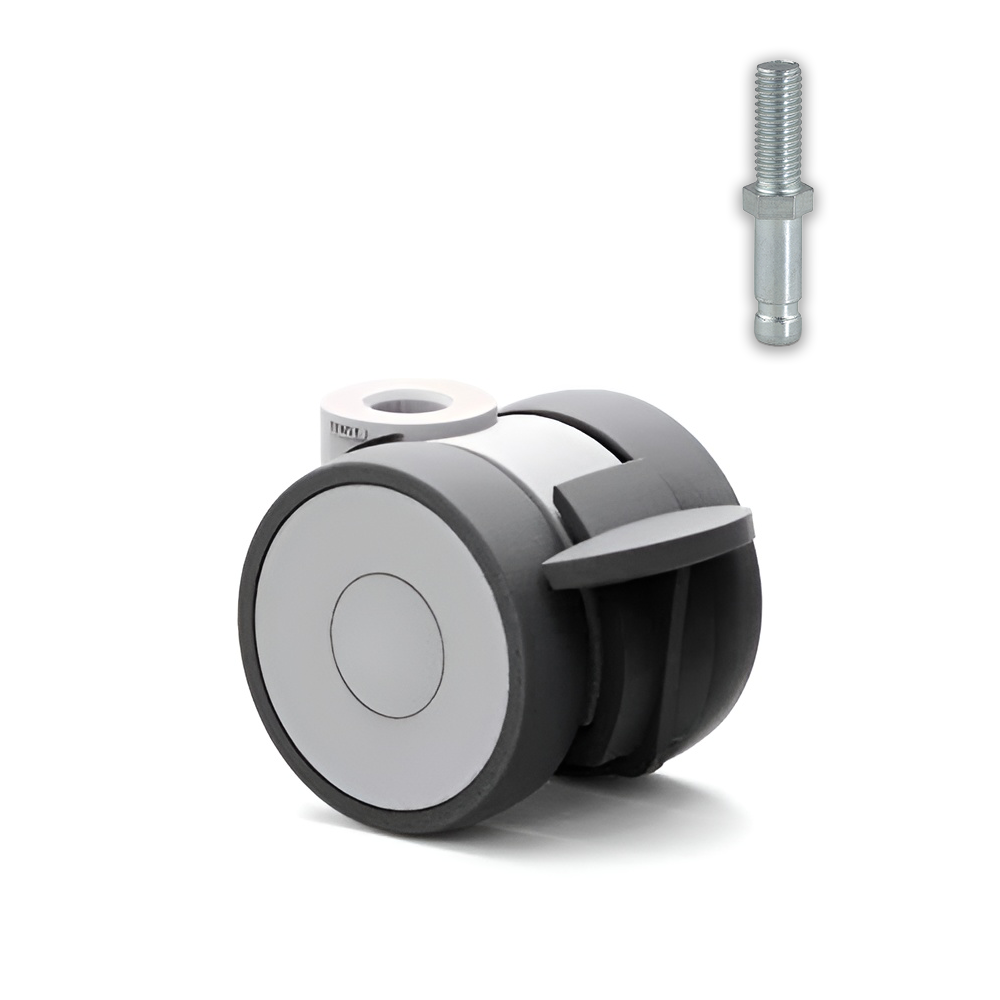

M10 x 25mm -56.5mm
-
M10 X 50mm -56.5mm
-

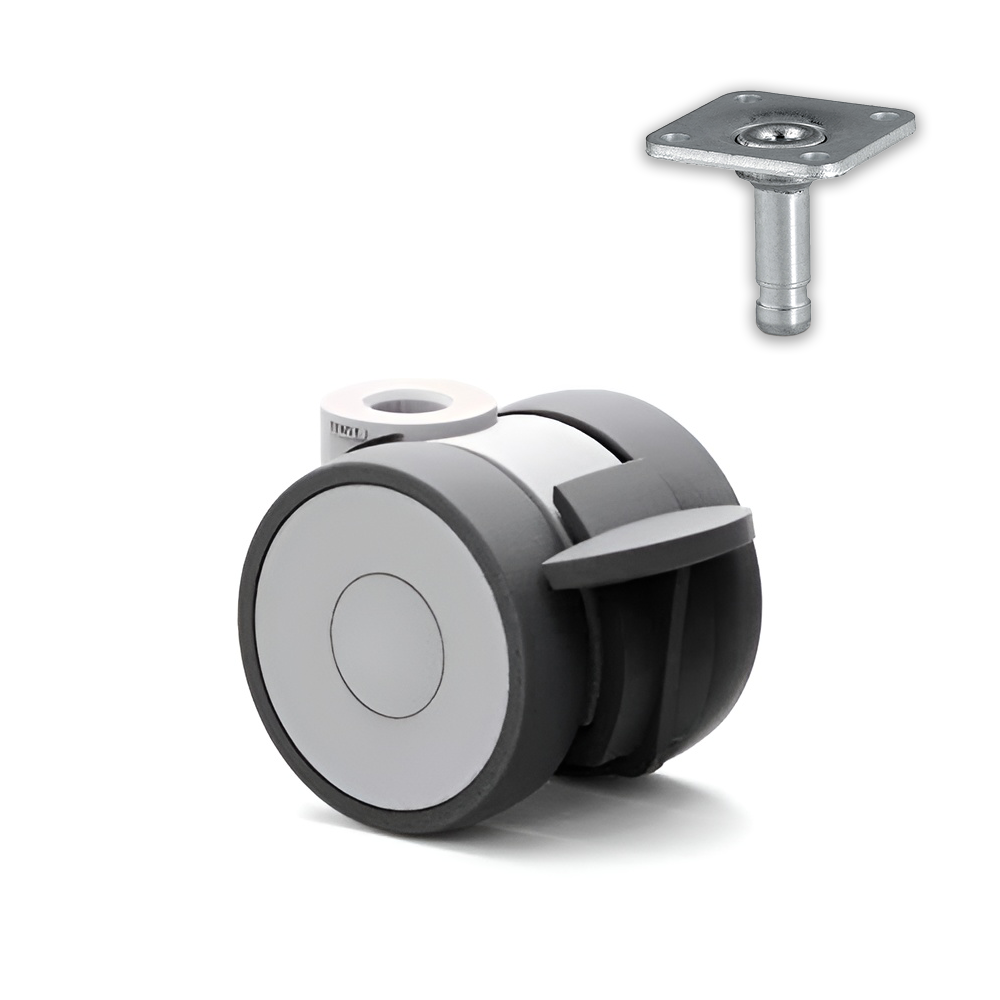

Plate -60.5mm (42mm square plate, 32mmx32mm hole centres)
-
C11 Circlip -54.5mm (Ø11mm x20mm)
- -Axle Type- Internal
- -Swivel Radius (inc. brake if fitted)- 46mm
The 5925UAI050L51-G from the TENTE Linea series is a compact, stylish swivel, twin-wheel braked castor designed for durability and smooth performance. Its robust polyamide housing and wheel hubs are paired with polyurethane treads for quiet rolling, excellent floor protection, and high abrasion resistance.
With 2 × 50 mm diameter, 13 mm wide wheels, it offers nimble handling and excellent stability in tight assembly spaces.
Built for practical everyday use, it supports loads up to 50 kg dynamic and 100 kg static, performing reliably in temperatures from –10 °C to +40 °C. The precision swivel mechanism provides a tight rotation radius (~46 mm), making it ideal for furniture, medical equipment, and compact trolleys.
Compliant with EN 12528/12530 standards, the 5920UAI050L51-G delivers resilience, quiet operation, and professional-grade mobility.
