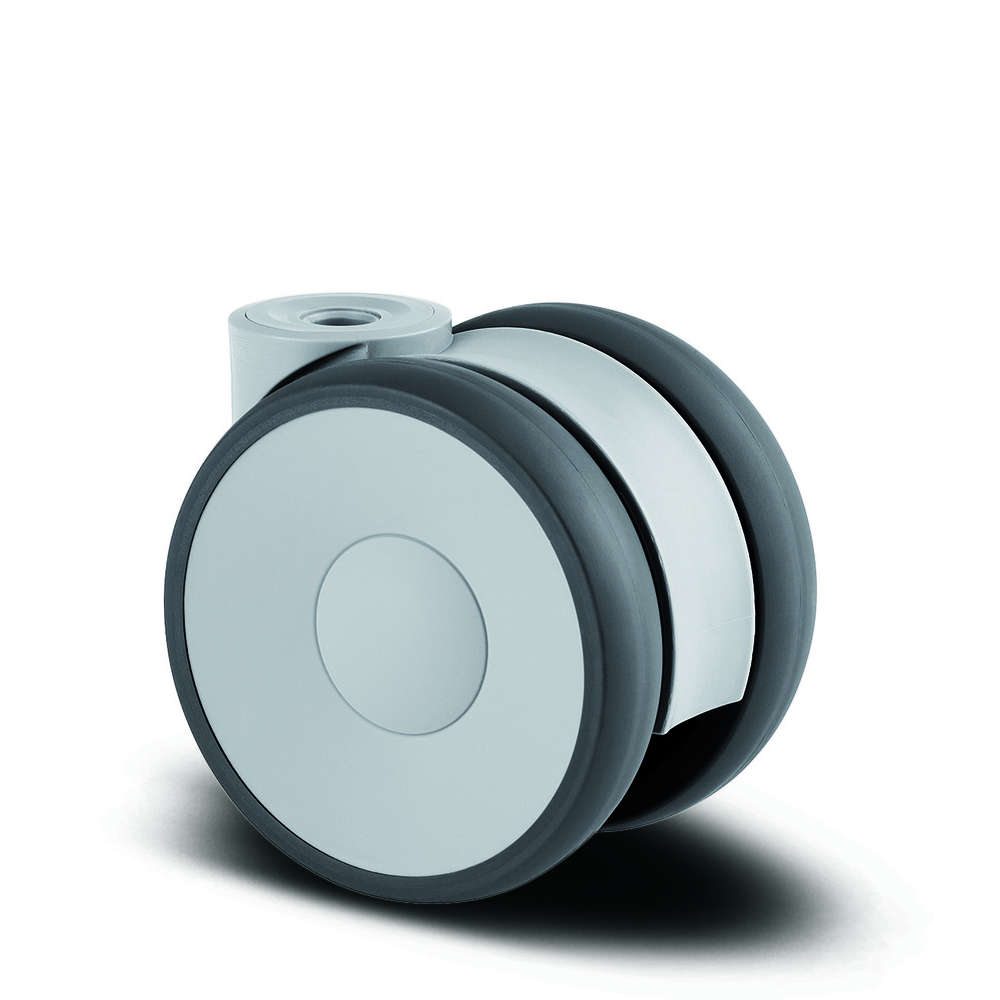

5920UAP100L51-11 100 Kg Swivel 100mm Twin Wheel Polyurethane

Product Description

Technical Specifications

• Brand: Tente
• Castor Type: Swivel
• Load Capacity: 100 Kg
• Brake Type: N/A
• Mounting Type: Various
• Wheel Material: Polyurethane
• Wheel Bearing Type: Precision Ball Bearing
• Thread Guard Fitted?: Yes
• Frame Finish: Grey Polyamide

• Overall Heights:
  • No Pintle -100mm

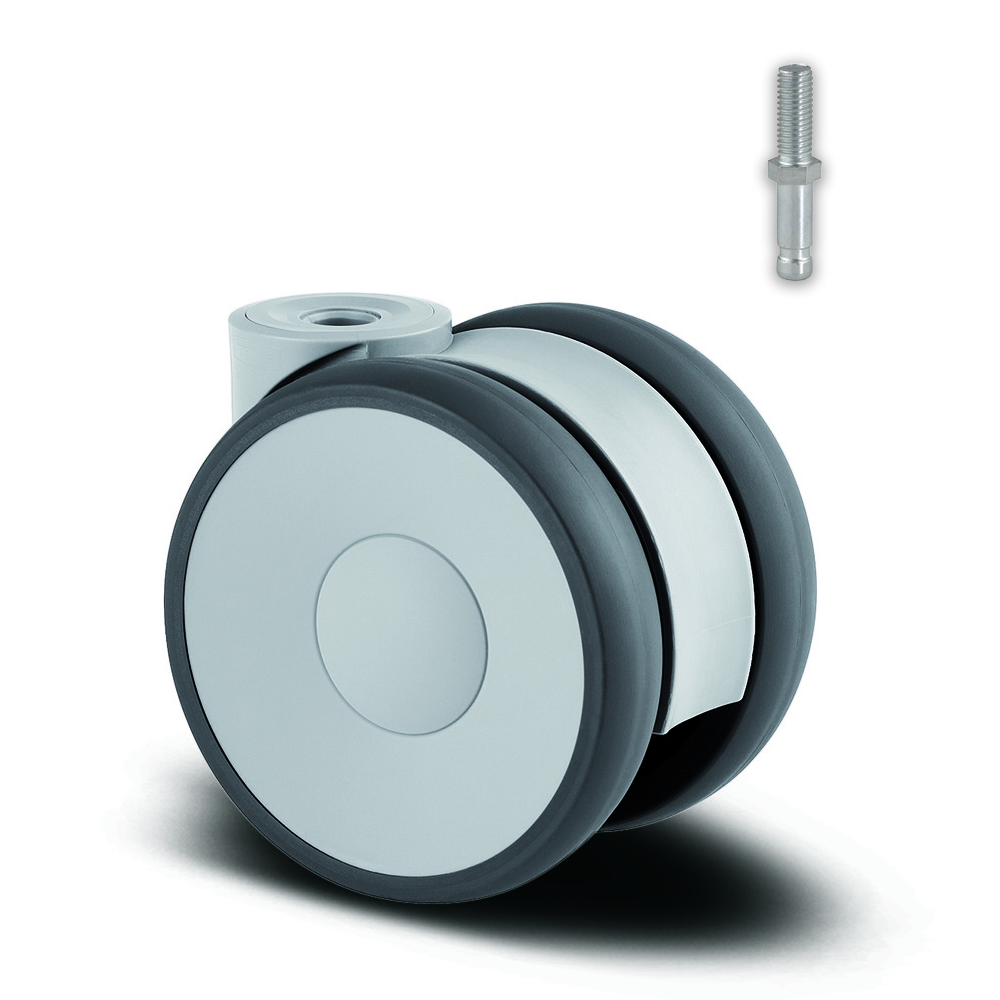

  • M10 X 25mm: 106mm
  • M12 X 25mm: 109mm

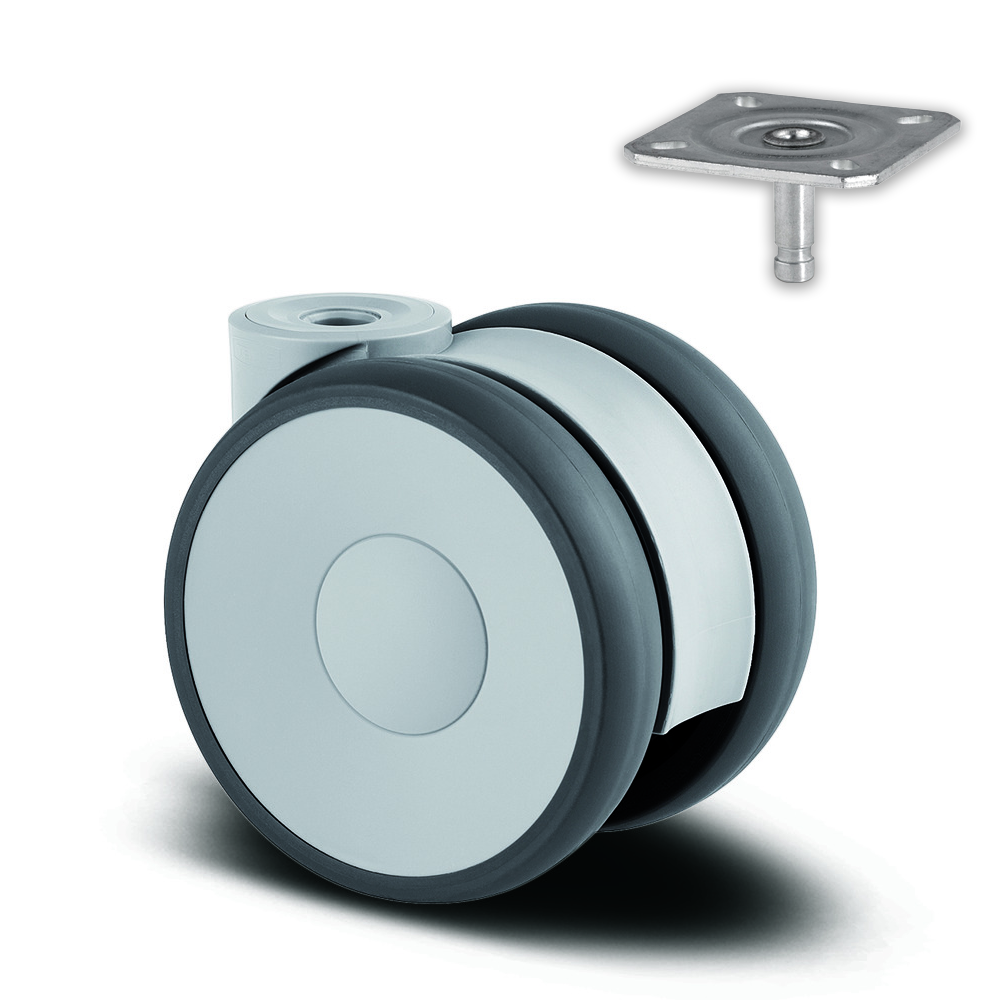

  • Plate: 112mm (65mm square plate, 47mm/42mm x 47mm/42mm hole centres)
• Axle Type: Internal
• Swivel Radius (Inc. Brake If Fitted): 88mm

The 5920UAP100L51-11 is a robust twin-wheel swivel castor from the TENTE Linea series. It features a high-quality polyamide body and wheels, delivering excellent strength, durability, and resistance to chemicals. The wheels are equipped with precision ball bearings, ensuring exceptionally smooth, low-friction rolling and long service life.

With 2 × 100 mm diameter, 25 mm wide wheels, this twin-wheel castor provides outstanding manoeuvrability and stable load distribution, even in demanding environments. It supports 100 kg dynamic and 200 kg static loads, and performs reliably across a wide temperature range of –20 °C to +70 °C.

Compliant with EN 12528 / EN 12530, the 5920UAP100L51-11 offers durability, quiet and effortless handling, and long-term reliability, making it ideally suited for medical equipment, laboratory devices, and high-quality service trolleys.
