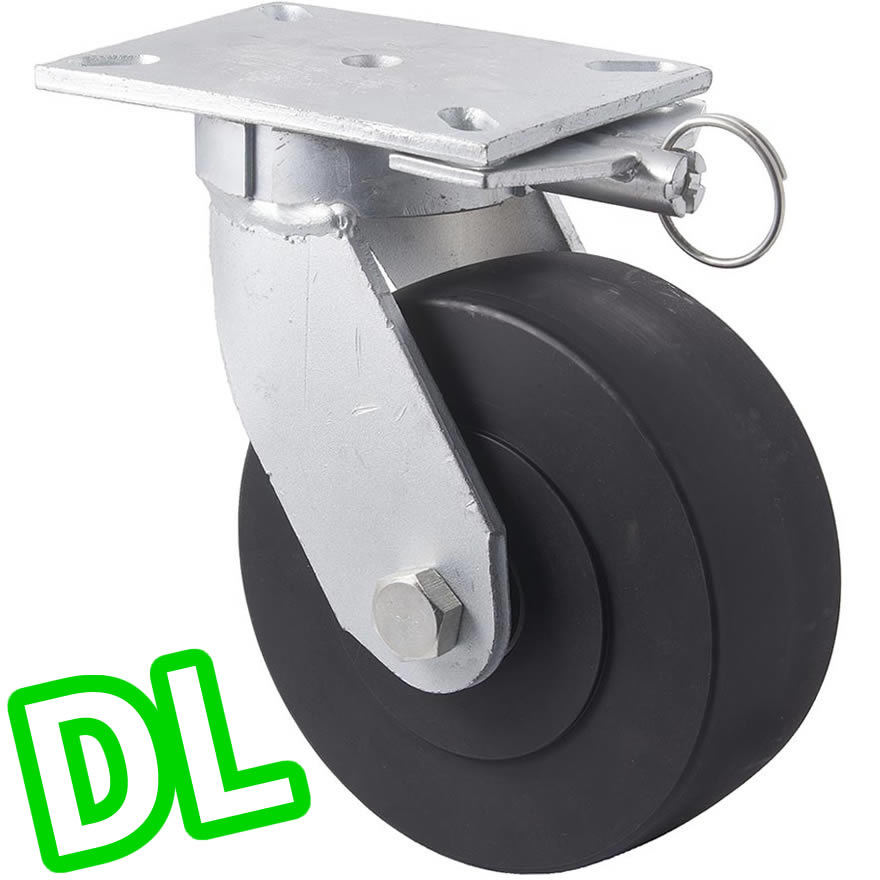

VXQ200/VZPDL - 2450 kg Swivel Plate Direction Lock Only 200mm High Impact Polymer
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
VXQ200/VZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
VXQ200/VZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU VXQ200/VZPDL
-
Castor TypeSwivel
-
Capacity2,450 kg
-
Overall Height267 mm
- Wheel
-
Wheel DiameterØ200 mm
-
Tread Width75 mm
-
Tread MaterialHigh Impact Polymer
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 2450 kg
- Brake Type:Direction Only

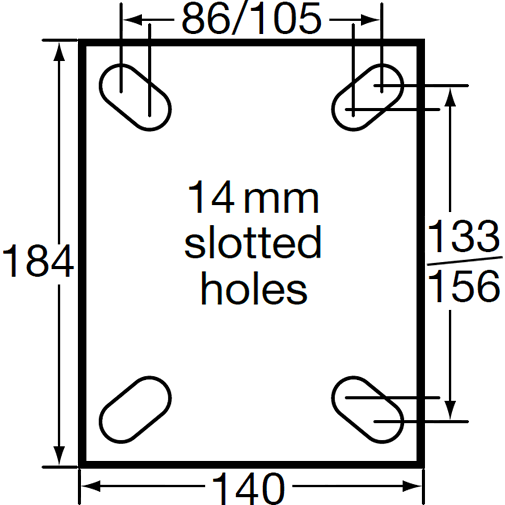

- Mounting Type: Plate
- Wheel Material: High Impact Polymer
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 75mm
- Overall Height: 267mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 165mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Ultra heavy duty industrial HIP (high impact polymer) castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.
