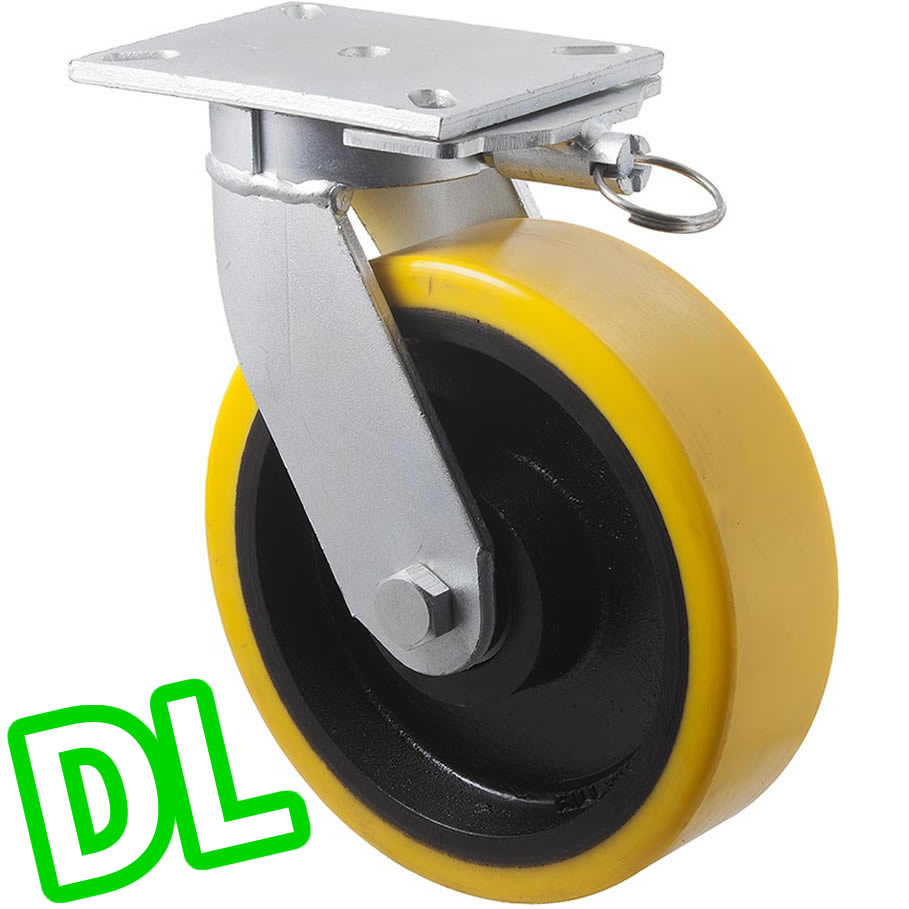

VUQ250/VZPDL - 2000 Kg Swivel Plate Direction Lock Only 250mm Polyurethane
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
VUQ250/VZPDL - 2000 Kg Swivel Plate Direction Lock Only 250mm Polyurethane is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 2000 Kg
- Brake Type:Direction Only

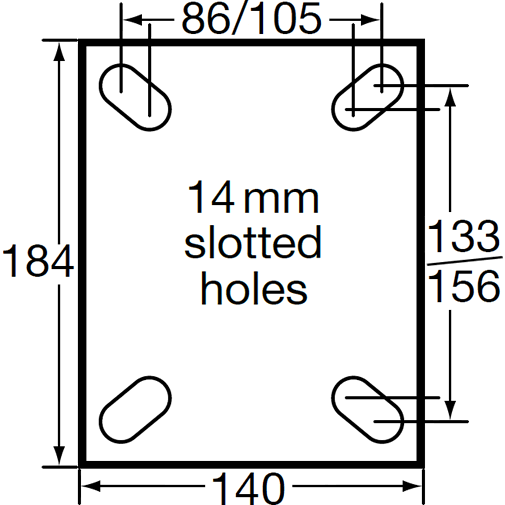

- Mounting Type: Plate
- Wheel Material: P/U on Cast Iron
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 250mm x 75mm
- Overall Height: 318mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 190mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Ultra heavy duty industrial polyurethane castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.
Related Options..
-
Wheel Diameter250 mm
-
Tread Width75 mm
-
Load Capacity2000 kg
-
Mounting TypePlate
-
Wheel MaterialPolyurethane
-
QualityPremium (Best Performance)
