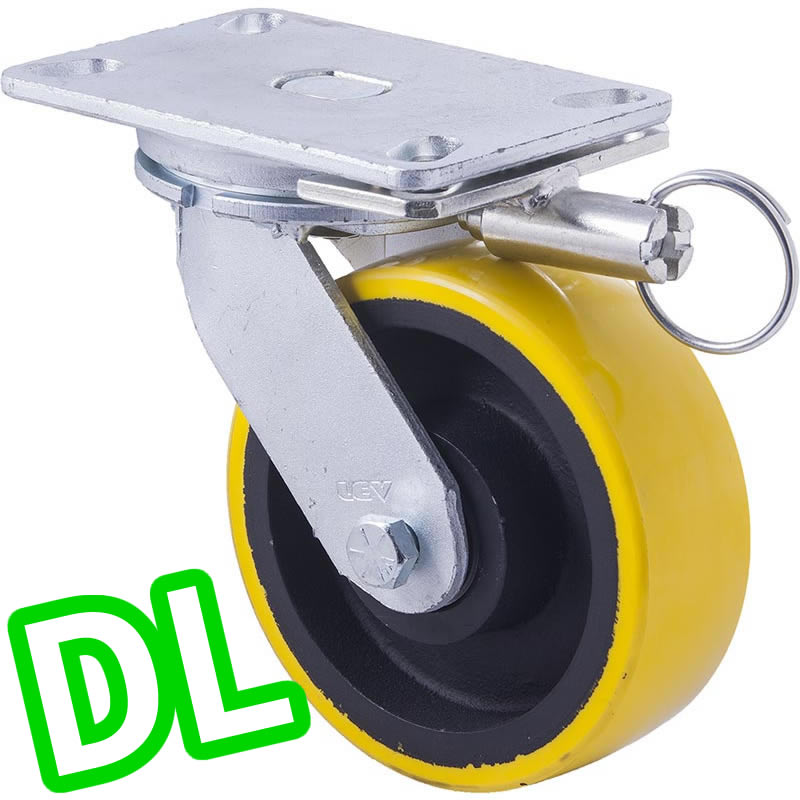

XUQ150/XZPDL - 1000 Kg Swivel Plate Direction Lock Only 150mm Polyurethane

$249.64
GST included
Data sheet Data Sheet PDF Mounting solutions Mounting Solutions

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 1000 Kg
  • Brake Type:Direction Only

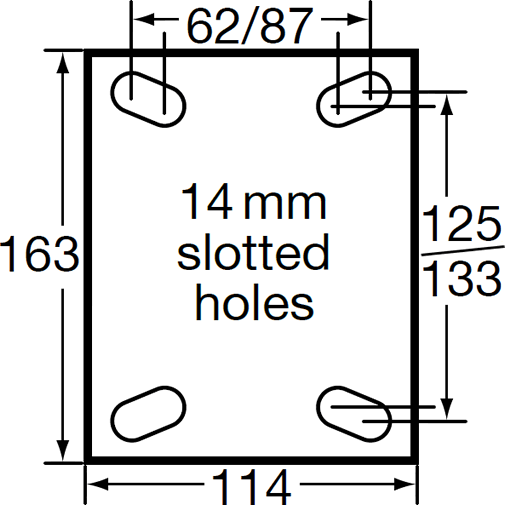

  • Mounting Type: Plate
  • Wheel Material: P/U on Cast Iron
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 150mm x 50mm
  • Overall Height: 193mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 137mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Very heavy duty industrial polyurethane castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

Related Options..

  • Wheel Diameter
    150 mm
  • Tread Width
    50 mm
  • Load Capacity
    1000 kg
  • Mounting Type
    Plate
  • Wheel Material
    Polyurethane
  • Quality
    Premium (Best Performance)
