Technical Specifications
- -Castor Type- Swivel
- -Load Capacity- 600 Kg
- -Brake Type- Direction Only
- -Mounting Type- Plate
- -Wheel Material- P/U on Cast Iron
- -Wheel Bearing Type- Ball Bearing
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 150mm x 50mm
- -Overall Height- 188mm
- -Axle Type- Bolted
- -Swivel Radius (inc. brake if fitted)- 165mm

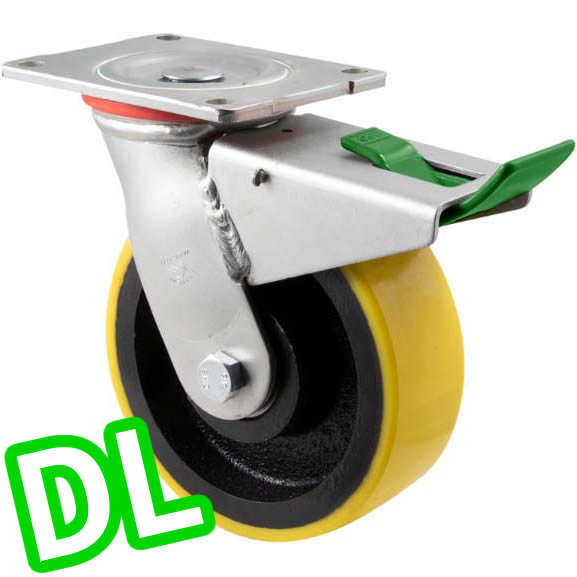

***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Heavy (fabricated) industrial polyurethane castor. General use including heavy trolleys, engineering, transport and factories.
Related Options..

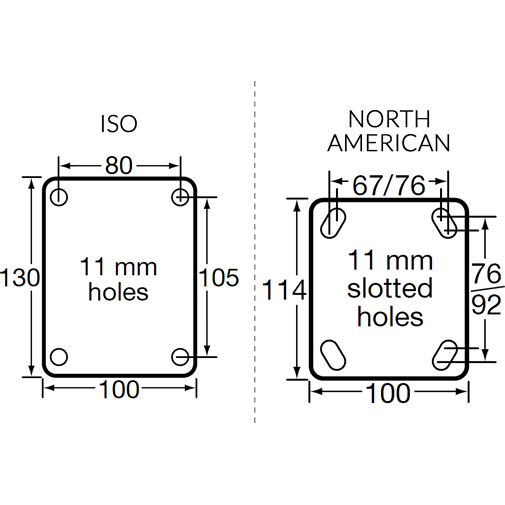

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
