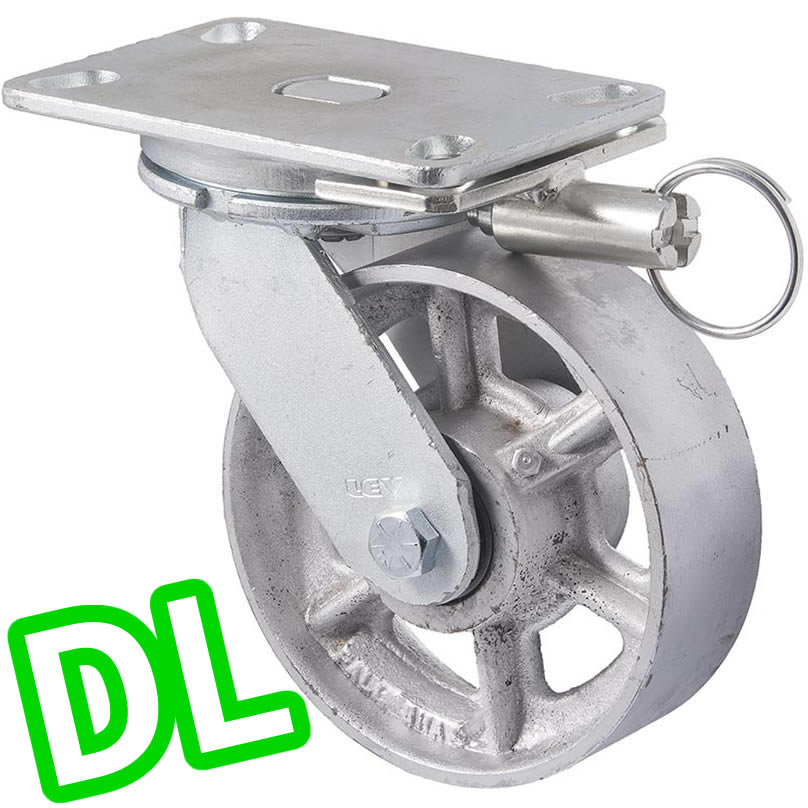

XCQ150/XZPDL 630 Kg Swivel Plate Direction Lock Only 150mm Cast Iron

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 630 Kg
  • -Brake Type- Direction Only

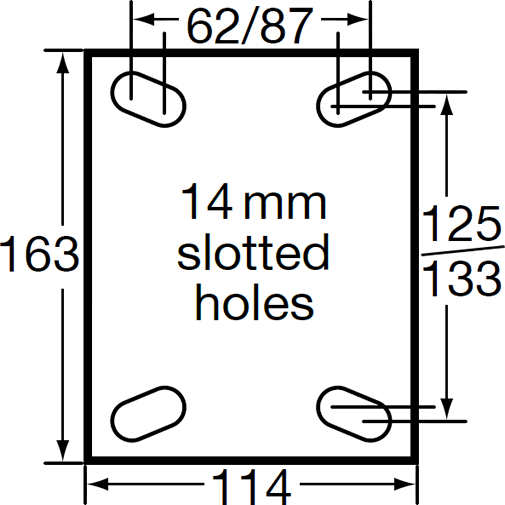

  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 150mm x 50mm
  • -Overall Height- 193mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 137mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

Related Options..

$213.35 (Incl. GST)

Make an enquiry about this product: XCQ150/XZPDL 630 Kg Swivel Plate Direction Lock Only 150mm Cast Iron
