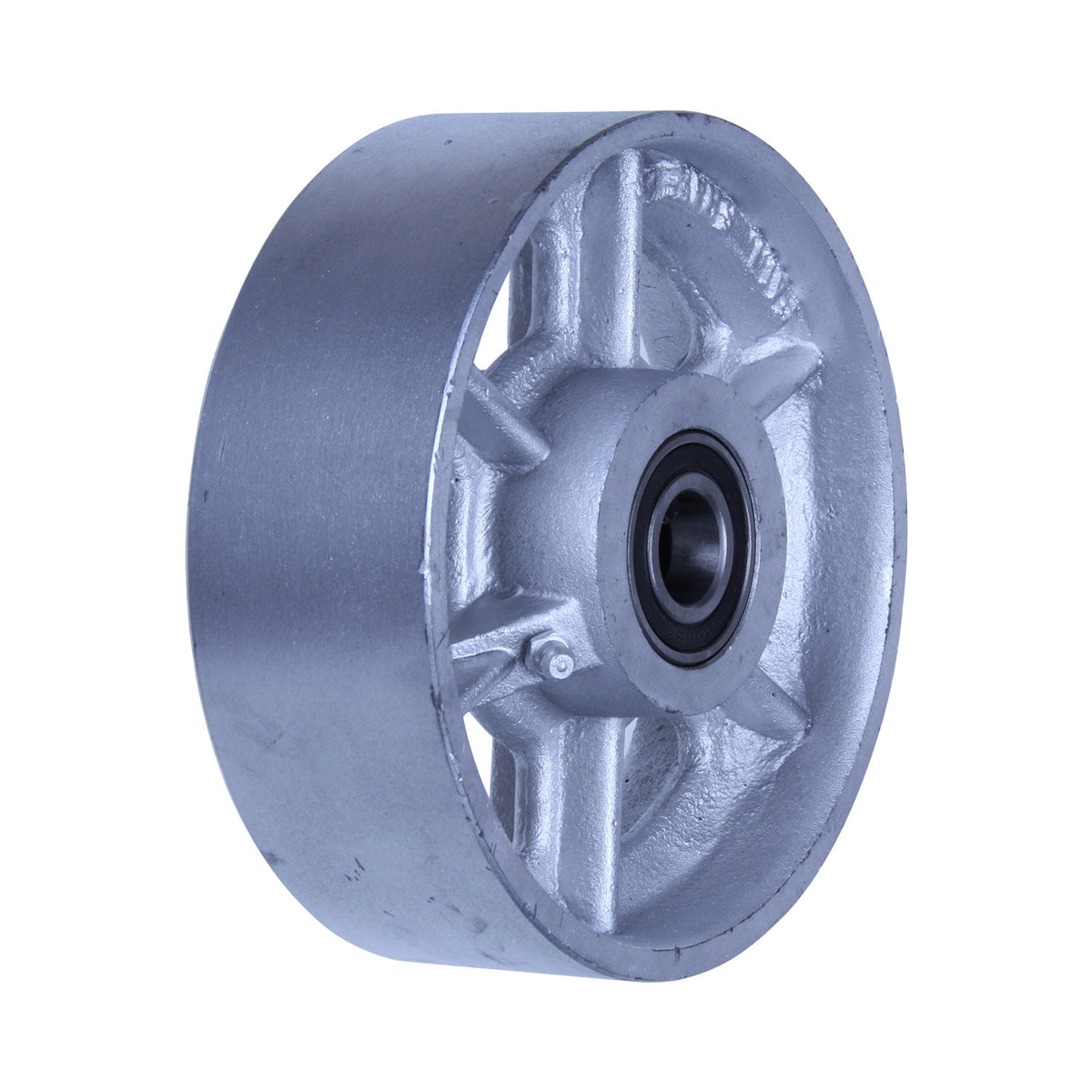

XCQ150 630 Kg Cast Iron Wheel
Related Items
BH-G150K 900 Kg Zinc Castor Fixed Cast Iron 150mm x 50mm
$84.85 (Incl. GST)
Technical Specifications
- -Castor Type- Fixed
- -Load Capacity- 900 Kg
- -Brake Type- N/A
- -Mounting Type- Plate
- -Wheel Material- Cast Iron
- -Wheel Bearing Type- Ball Bearing
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 150mm x 50mm
- -Overall Height- 197mm
- -Axle Type- Bolted
- -Mounting Plate Dimensions- 140mm x 110mm
- -Mounting Plate Hole Centres- 105mm x 75mm-80mm
- -Mounting Plate Hole Diameter- 11mm
- -Swivel Radius (Inc. brake if fitted)- N/A
Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.
-<--- DON'T FORGET YOUR MOUNTING HARDWARE!
Delivery or in-store pickup available.
BH-GTH150K 750 Kg Zinc Castor Fixed P/U on Cast Iron 150mm x 50mm
$105.40 (Incl. GST)
Technical Specifications
- -Castor Type- Fixed
- -Load Capacity- 750 Kg
- -Brake Type- N/A
- -Mounting Type- Plate
- -Wheel Material- P/U on Cast Iron
- -Wheel Bearing Type- Ball Bearing
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 150mm x 50mm
- -Overall Height- 197mm
- -Axle Type- Bolted
- -Mounting Plate Dimensions- 140mm x 110mm
- -Mounting Plate Hole Centres- 105mm x 75mm-80mm
- -Mounting Plate Hole Diameter- 11mm
- -Swivel Radius (inc. brake if fitted)- N/A
Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.
-<--- DON'T FORGET YOUR MOUNTING HARDWARE!
Delivery or in-store pickup available.
BP15050B 250 Kg Blue Rubber Wheel
$30.80 (Incl. GST)
Technical Specifications
- -Load Capacity- 250 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Polypropylene
- -Tyre Material- Blue Rubber
- -Tread Width- 45mm
- -Hub Length (unsleeved)- 56mm
- -Hub Length (sleeved)- 62mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 12.7mm (1/2")
- -Sleeve Type- Top Hat Pair
- -Bearing Type- Ball Bearings
Heavy Industrial blue rubber wheel only (fitted with ball bearings - and supplied with 2 top hat spacers)
Delivery or in-store pickup available.
G150/20K 900 Kg Cast Iron Wheel
$52.95 (Incl. GST)
Technical Specifications
- -Load Capacity- Â 900 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Cast Iron
- -Tyre Material- Cast Iron
- -Tread Width- 50mm
- -Hub Length (unsleeved)- 60mm
- -Hub Length (sleeved)- 65.1mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 12.7mm(1/2")
- -Sleeve Type- Top Hat Pair
- -Bearing Type- Ball Bearings
Heavy Industrial cast iron wheel only - fitted with 20mm ball bearings. Option with top hat reducing pair (reduced to 1/2" ) for mounting into castors.
Delivery or in-store pickup available.
GTH150/20K 750 Kg Polyurethane Wheel
$72.90 (Incl. GST)
Technical Specifications
- -Load Capacity- 750 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Cast Iron
- -Tyre Material- Polyurethane
- -Tread Width- 50mm
- -Hub Length (unsleeved)- 60mm
- -Hub Length (sleeved)- 65.1mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 12.7mm(1/2")
- -Sleeve Type- Top Hat Pair
- -Bearing Type- Ball Bearings
Heavy Industrial polyurethane tyred cast iron wheel only - fitted with ball bearings
Delivery or in-store pickup available.
GTHN150/25H7 150mm x 50mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway
Wheels
GTHN150/25H7 150mm x 50mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway
$132.55 (Incl. GST)
Technical Specifications
- -Load Capacity- Â 650 Kg
- -Wheel Diameter- Â 150mm
- -Wheel Material- Â Cast Iron
- -Tyre Material- Â Polyurethane
- -Tread Width- Â 50mm
- -Hub Length (unsleeved)- Â 60mm
- -Hub Length (sleeved)- N/A
- -Bore Diameter (Unsleeved)- Â 25mm w/ H7 Keyway
- -Sleeved Bore Diameter Options- N/A
- -Sleeve Type- N/A
- -Bearing Type- N/A
Delivery or in-store pickup available.
HBA150 230 Kg Blue Rubber Wheel
$33.70 (Incl. GST)
Technical Specifications
- -Load Capacity- 230 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Black Nylon
- -Tyre Material- Blue Rubber
- -Tread Width- 32mm
- -Hub Length (unsleeved)- 60mm
- -Hub Length (sleeved)- 61.3mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 13mm
- -Sleeve Type- Spacer Tube
- -Bearing Type- Plain
Heavy Industrial blue rubber/nylon wheel - plain bore (supplied with spacer sleeve)
Delivery or in-store pickup available.
HBA150S 230 Kg Blue Rubber Wheel
$39.60 (Incl. GST)
Technical Specifications
- -Load Capacity- 230 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Black Nylon
- -Tyre Material- Blue Rubber
- -Tread Width- 32mm
- -Hub Length (unsleeved)- 60mm
- -Hub Length (sleeved)- 61.3mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 13mm
- -Sleeve Type- S/S Spacer Tube
- -Bearing Type- Plain
Heavy Industrial blue rubber/nylon wheel - plain bore (supplied with S/S spacer sleeve)
Delivery or in-store pickup available.
HBR150 230 Kg Blue Rubber Wheel
$33.70 (Incl. GST)
Technical Specifications
- -Load Capacity- 230 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Black Nylon
- -Tyre Material- Blue Rubber
- -Tread Width- 32mm
- -Hub Length (unsleeved)- 60mm
- -Hub Length (sleeved)- 61.3mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 13mm
- -Sleeve Type- Spacer Tube
- -Bearing Type- Roller Bearings
Heavy Industrial blue rubber/nylon wheel - roller bearing fitted (supplied with spacer sleeve)
Delivery or in-store pickup available.
HBS150 230 Kg Blue Rubber Wheel
$44.70 (Incl. GST)
Technical Specifications
- -Load Capacity- 230 Kg
- -Wheel Diameter- 150mm
- -Wheel Material- Black Nylon
- -Tyre Material- Blue Rubber
- -Tread Width- 32mm
- -Hub Length (unsleeved)- 60mm
- -Hub Length (sleeved)- 61.3mm
- -Bore Diameter (Unsleeved)- 20mm
- -Sleeved Bore Diameter Options- 13mm
- -Sleeve Type- S/S Spacer Tube
- -Bearing Type- S/S Roller
Heavy Industrial blue rubber/nylon wheel - S/S roller bearing fitted (supplied with S/S spacer sleeve)
Delivery or in-store pickup available.
HIN6F-CIPU 400 Kg Zinc Castor Fixed P/U on Cast Iron 150mm x 50mm
$37.95 (Incl. GST)
Technical Specifications
- -Castor Type- Fixed
- -Load Capacity- 400 Kg
- -Brake Type- N/A
- -Mounting Type- Plate
- -Wheel Material- P/U on Cast Iron
- -Wheel Bearing Type- Precision Ball Bearing
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 150mm x 50mm
- -Overall Height- 191mm
- -Axle Type- Bolted
- -Mounting Plate Dimensions- 114mm x 100mm
- -Mounting Plate Hole Centres- 85mm x 72mm
- -Mounting Plate Hole Diameter- 11mm
- -Swivel Radius (inc. brake if fitted)- N/A
Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.
-<--- DON'T FORGET YOUR MOUNTING HARDWARE!
Delivery or in-store pickup available.
HIN6S-CIPU 400 Kg Zinc Castor Swivel P/U on Cast Iron 150mm x 50mm
$40.95 (Incl. GST)
Technical Specifications
- -Castor Type- Swivel
- -Load Capacity- 400 Kg
- -Brake Type- N/A
- -Mounting Type- Plate
- -Wheel Material- P/U on Cast Iron
- -Wheel Bearing Type- Precision Ball Bearing
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 150mm x 50mm
- -Overall Height- 191mm
- -Axle Type- Bolted
- -Mounting Plate Dimensions- 114mm x 100mm
- -Mounting Plate Hole Centres- 85mm x 72mm
- -Mounting Plate Hole Diameter- 11mm
- -Swivel Radius (inc. brake if fitted)- 115mm
Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.
-<--- DON'T FORGET YOUR MOUNTING HARDWARE!
Delivery or in-store pickup available.
