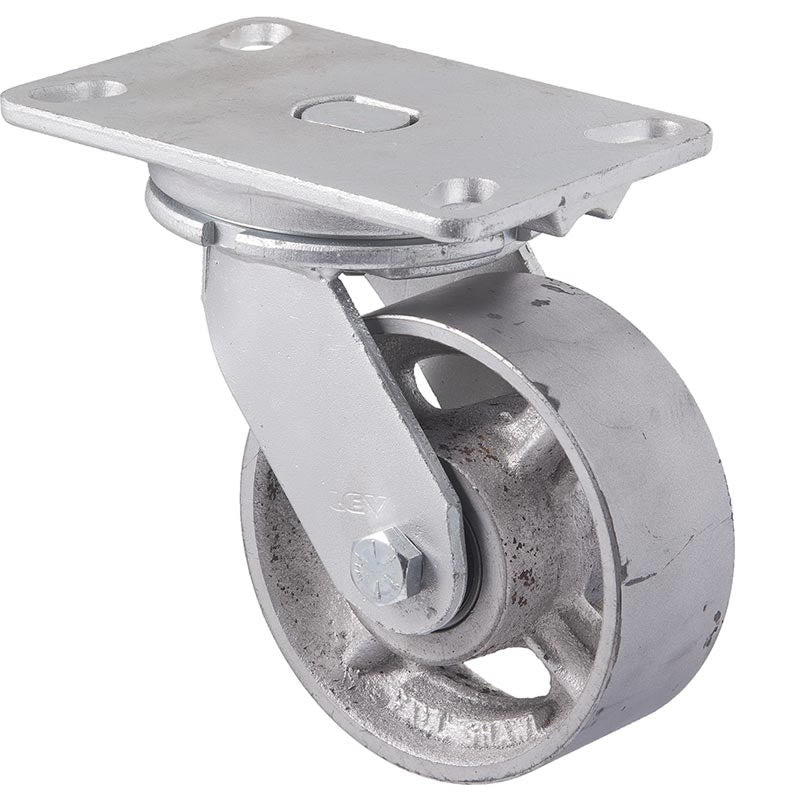

XCQ125/XZP 590kg Zinc Castor Swivel N/A Cast Iron 125mm x 50mm

Description

Technical Specifications:

  • Castor Type: Swivel
  • Load Capacity: 590kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Ball Bearing
  • Threadguard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 125mm x 50mm
  • Overall Height: 167mm
  • Axle Type: Bolted

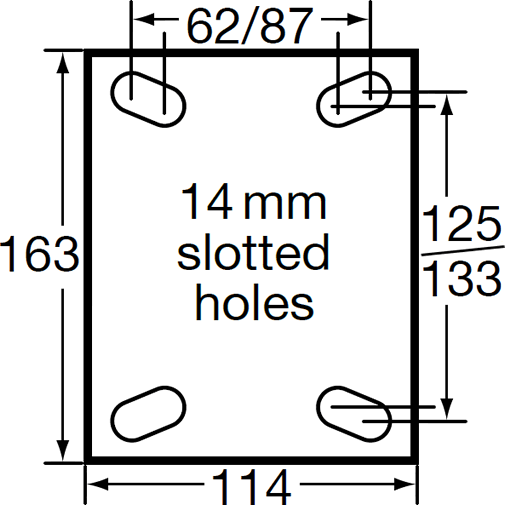

  • Mounting Plate Dimensions: 163mm x 114mm
  • Mounting Plate Hole Centres: 125/133mm x 62/87mm
  • Mounting Plate Hole Diameter: 14.3mm Slotted
  • Swivel Radius (inc. brake if fitted): 108mm

Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

Download Specifications PDF

Delivery or in-store pickup available.

$152.30 (Incl. GST)
