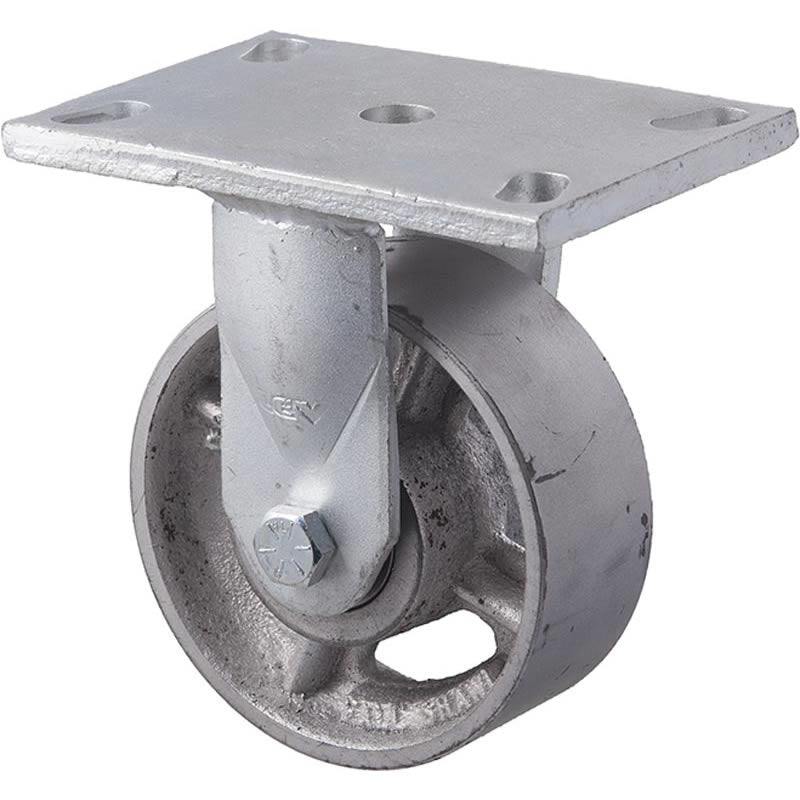

XCQ125/XZF 590 Kg Zinc Castor Fixed Cast Iron 125mm x 50mm

Description

Technical Specifications

  • -Castor Type- Fixed
  • -Load Capacity- 590 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 125mm x 50mm
  • -Overall Height- 167mm
  • -Axle Type- Bolted

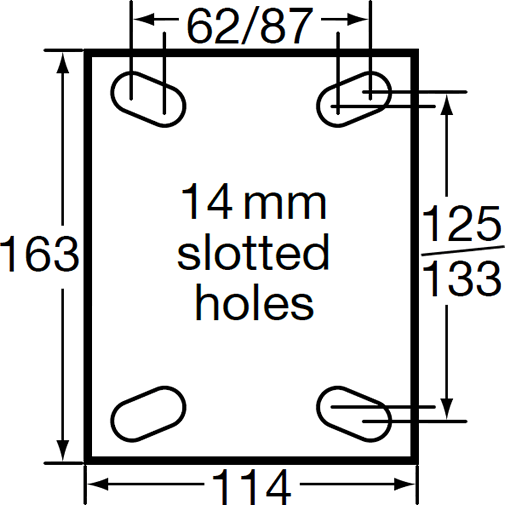

  • -Mounting Plate Dimensions- 163mm x 114mm
  • -Mounting Plate Hole Centres- 125/133mm x 62/87mm
  • -Mounting Plate Hole Diameter- 14.3mm Slotted
  • -Swivel Radius (inc. brake if fitted)- N/A

Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

Delivery or in-store pickup available.

$85.50 (Incl. GST)
