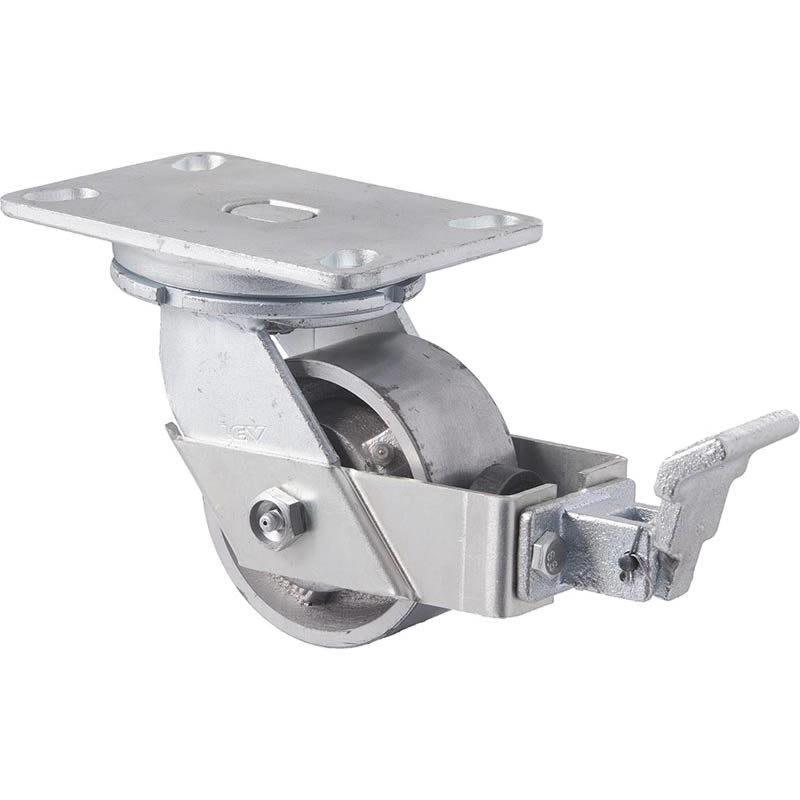

XCQ100/XZPBR - 450 Kg Swivel Plate 100mm Brake Cast Iron

$199.58
GST included
Data sheet Data Sheet PDF Mounting solutions Mounting Solutions

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 450 Kg
  • Brake Type: Wheel Brake

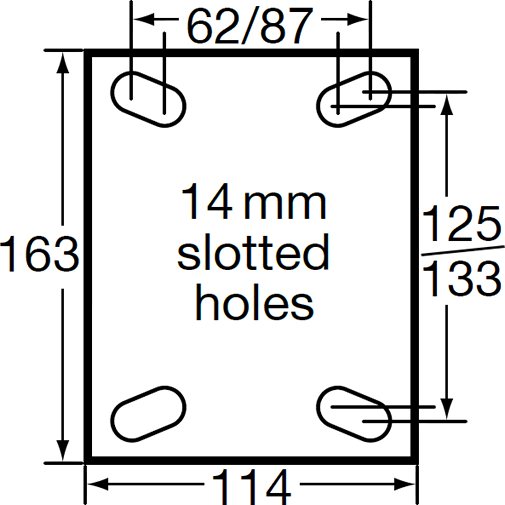

  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 50mm
  • Overall Height: 143mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 219mm

Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

Related Options..

  • Wheel Diameter
    100 mm
  • Tread Width
    50 mm
  • Load Capacity
    450 kg
  • Mounting Type
    Plate
  • Wheel Material
    Cast Iron
  • Quality
    Premium (Best Performance)
