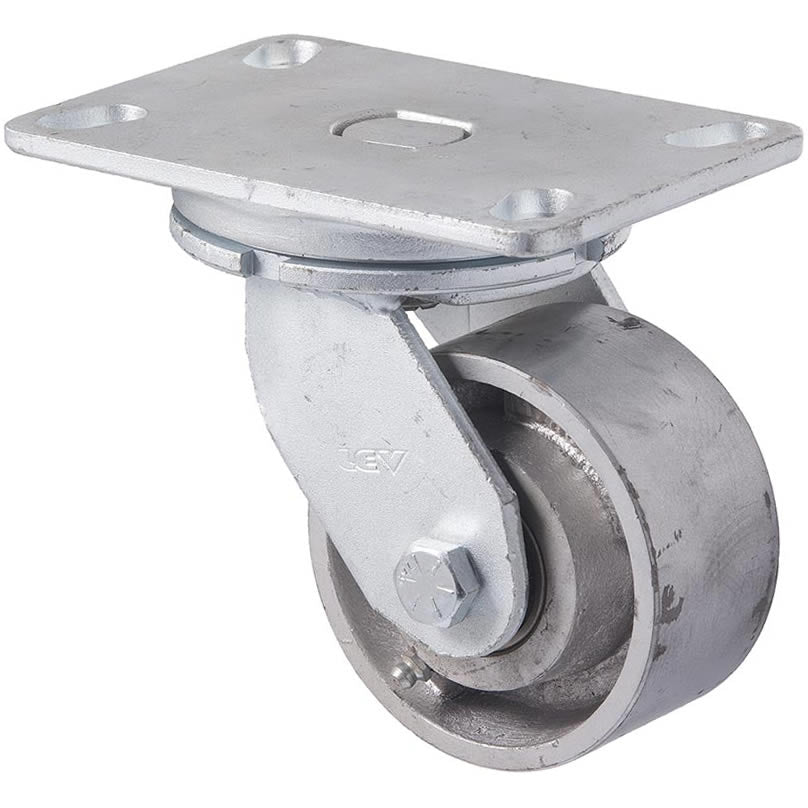

XCQ100/XZP 450 Kg Zinc Castor Swivel Cast Iron 100mm x 50mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 450 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 50mm
  • -Overall Height- 143mm
  • -Axle Type- Bolted

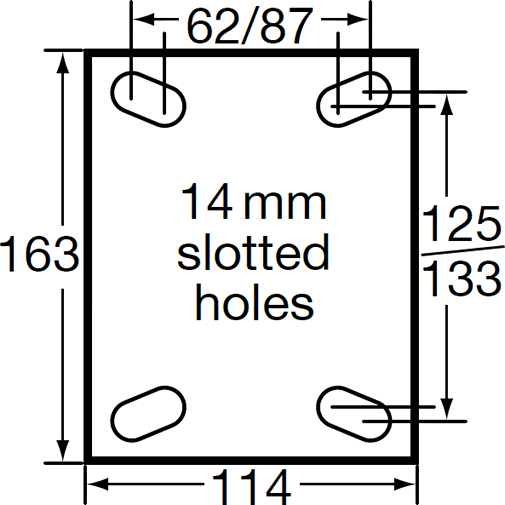

  • -Mounting Plate Dimensions- 163mm x 114mm
  • -Mounting Plate Hole Centres- 125/133mm x 62/87mm
  • -Mounting Plate Hole Diameter- 14.3mm Slotted
  • -Swivel Radius (inc. brake if fitted)- 95mm

Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

$114.85 (Incl. GST)
