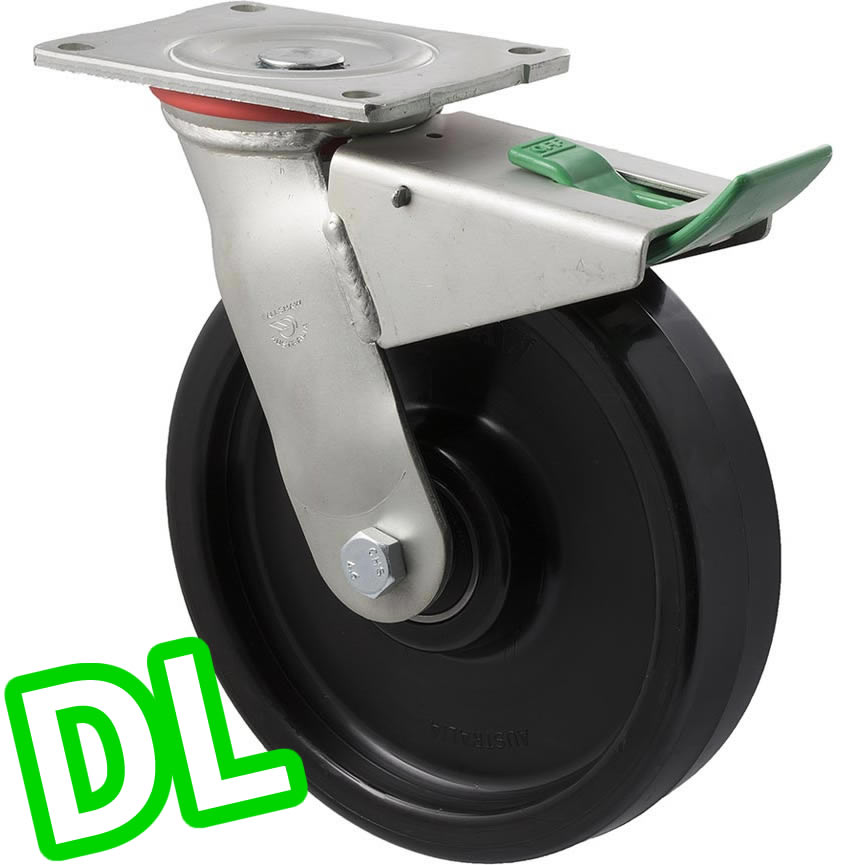

WNQ200/HZPDL - H SERIES 600 kg Swivel Plate Direction Lock Only 200mm Black Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
WNQ200/HZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
WNQ200/HZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
WNQ200/HZPDL - H SERIES 600 kg Swivel Plate Direction Lock Only 200mm Black Nylon
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU WNQ200/HZPDL
-
Castor TypeSwivel
-
Capacity600 kg
-
Overall HeightKey specification differs from other available variants 238 mm
- Wheel
-
Wheel DiameterØ200 mm
-
Tread Width45 mm
-
Tread MaterialBlack Nylon
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 600 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: Black Nylon
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 45mm
- Overall Height: 238mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 165mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Heavy (fabricated) industrial black nylon castor. General use including heavy trolleys, engineering, transport and factories.

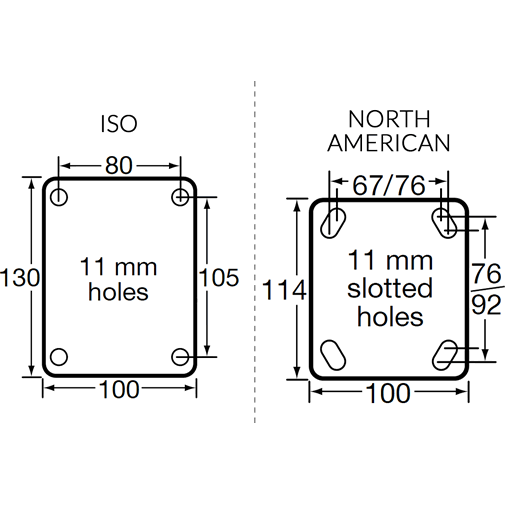

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
