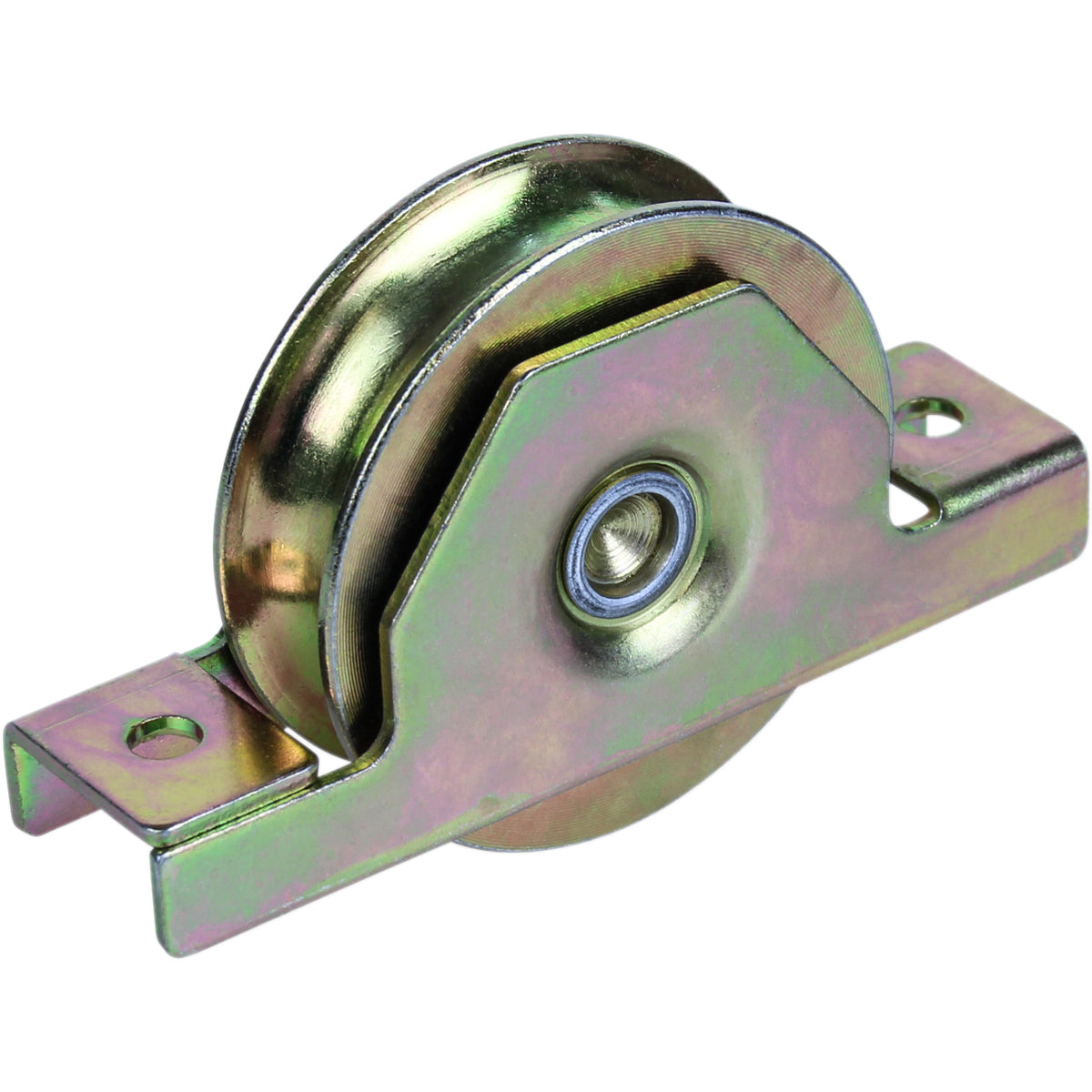

W90B 180 Kg 90mm 20mm Round Groove


Technical Specifications.

  • -Groove Type- 20mm Round Groove
  • -Load Capacity- 180 Kg
  • -Wheel Diameter- 90mm
  • -Wheel Material- Steel
  • -Finish- Zinc Plated
  • -Tyre Material- Steel
  • -Tread Width- 26mm
  • -Groove Width- 20mm
  • -Groove Depth- 9mm
  • -Bearing Type- Ball Bearing
  • -Bracket Width- 39mm
  • -Bracket Length- 145mm
  • -Mounting hole Centres- 120mm
  • -Mounting hole size- 9mm
  • -Overall Height- 90mm

Machined steel "O" groove wheel fitted to recessed mount bracket . Suitable for use with sliding gate floor track or 20mm bar.

$25.30 (Incl. GST)
