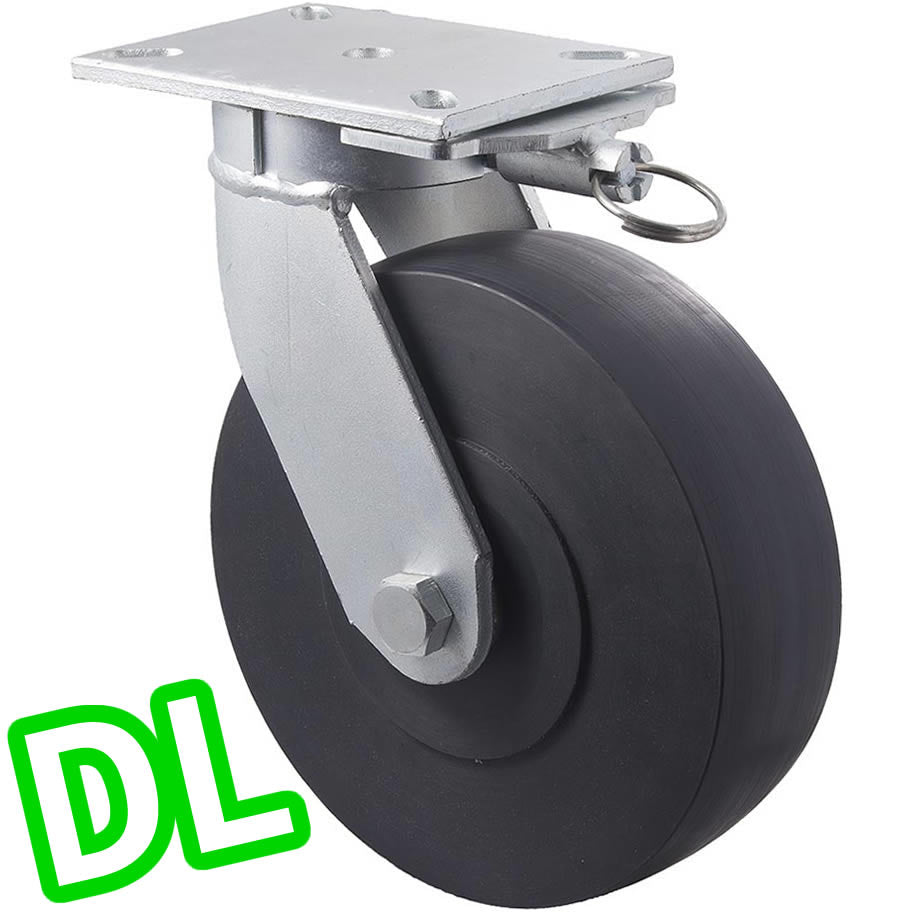

VXQ250/VZPDL 2450 Kg Zinc Castor Swivel Direction Lock Only High Impact Polymer 250mm x 75mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 2450 Kg
  • -Brake Type- Direction Only
  • -Mounting Type- Plate
  • -Wheel Material- High Impact Polymer
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 250mm x 75mm
  • -Overall Height- 318mm
  • -Axle Type- Bolted

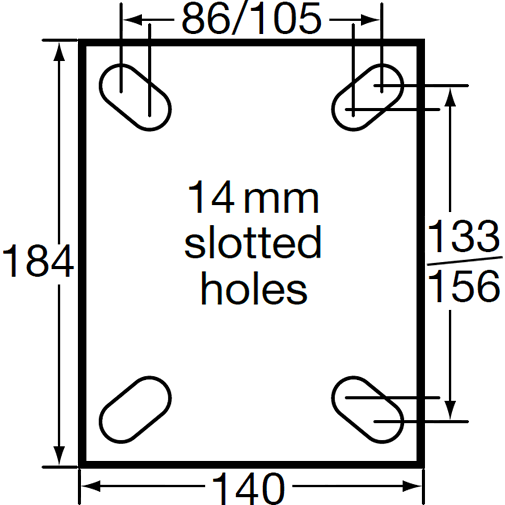

  • -Mounting Plate Dimensions- 184mm x 140mm
  • -Mounting Plate Hole Centres- 133/156mm x 86/105mm
  • -Mounting Plate Hole Diameter- 14mm Slotted
  • -Swivel Radius (inc. brake if fitted)- 190mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Ultra heavy duty industrial HIP (high impact polymer) castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

$751.75 (Incl. GST)
