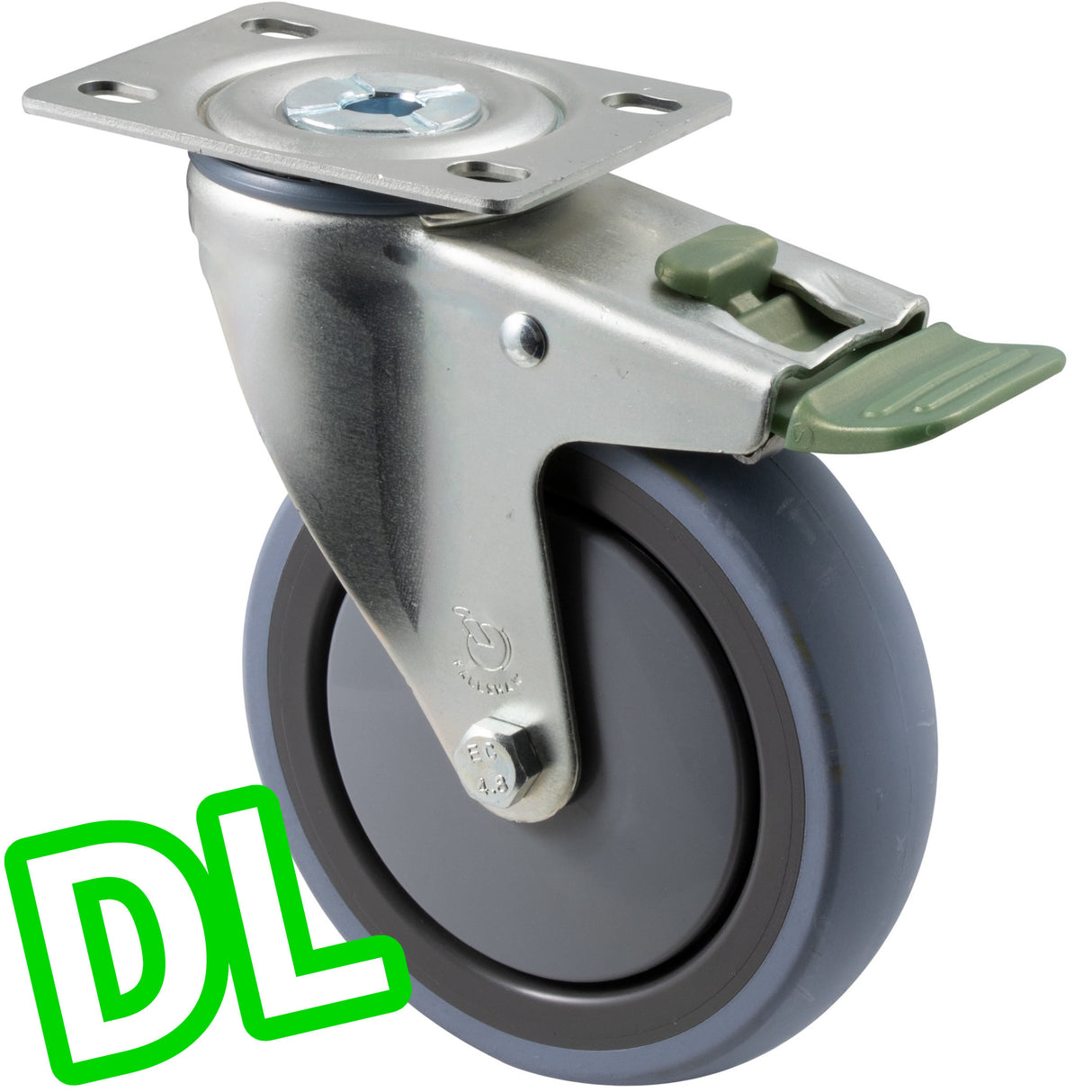

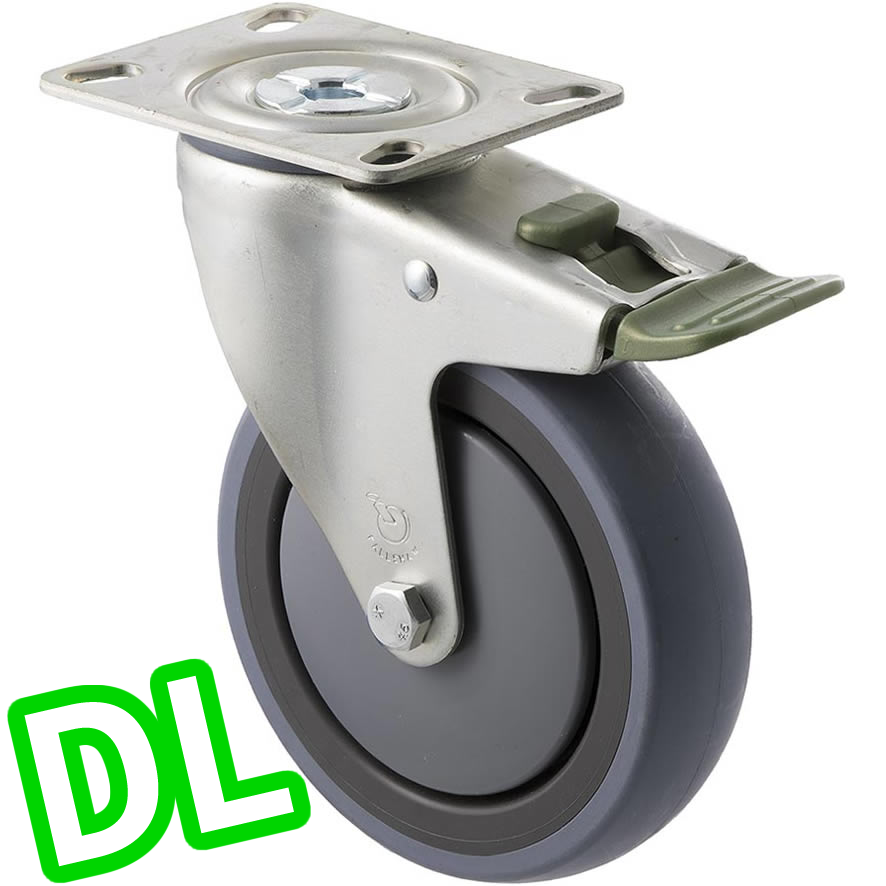

STQ125G/MZPDL 100 Kg Zinc Castor Swivel Direction Lock Only Grey Rubber 125mm x 30mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- Direction Only
  • -Mounting Type- Plate
  • -Wheel Material- Grey Rubber
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- Yes
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 125mm x 30mm
  • -Overall Height- 161mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial grey rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

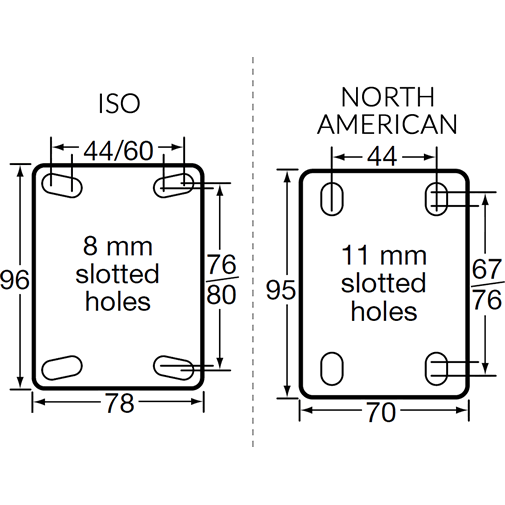

Top Plate Option
$40.65 (Incl. GST)
