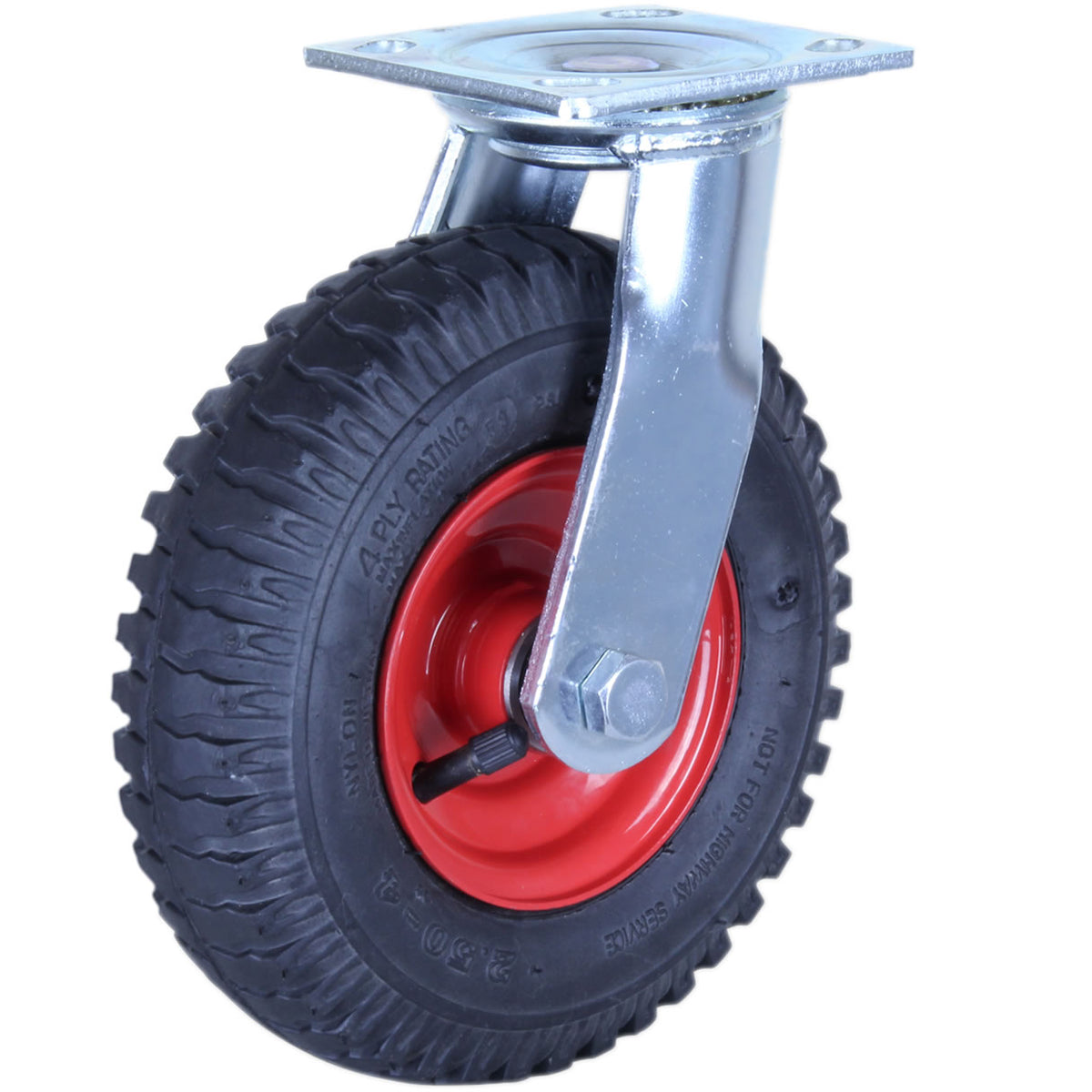

PZN250X4-PS - 120 kg Swivel Plate 220mm Black Rubber Pneumatic
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
PZN250X4-PS is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
PZN250X4-PS is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU PZN250X4-PS
-
Castor TypeSwivel
-
Capacity120 kg
-
Overall Height257 mm
- Wheel
-
Wheel DiameterØ265 mm
-
Tread Width60 mm
-
Wheel MaterialRed Steel
-
Tread MaterialBlack Rubber Pneumatic Tyre
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 120 kg
- Brake Type: N/A

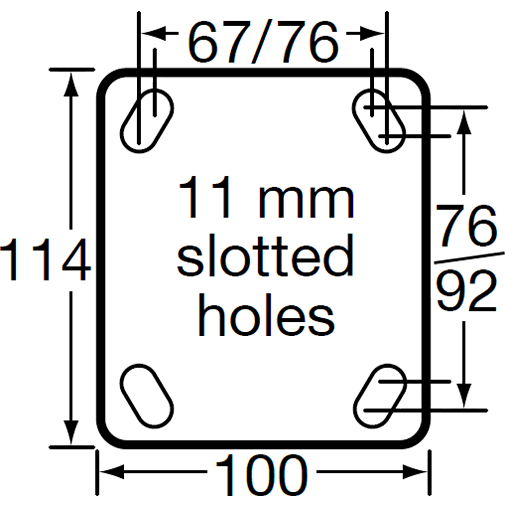

- Mounting Type: Plate
- Wheel Material: Black Rubber Pneumatic
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 220mm x 60mm
- Overall Height: 257mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 157mm

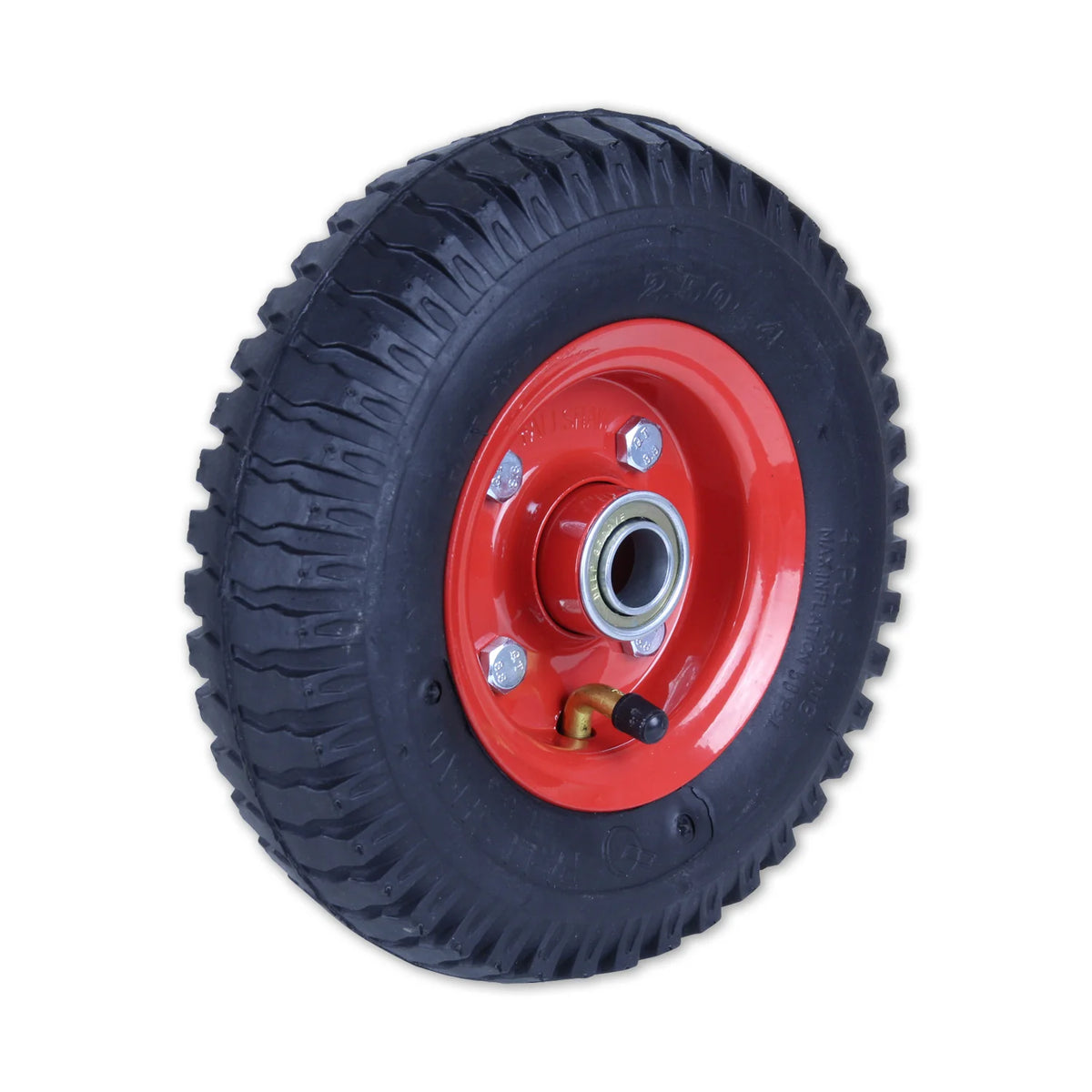

The PZN250X4-PS is a tough, high-quality castor built to last. It features a split-rim wheel for simple tube and tyre changes and a solid axle with spacers for strength and smooth rolling under load.
A solid upgrade for a wide range of material handling equipment, including trolleys like Rubbermaid. It’s well suited to warehousing, logistics, retail, hospitality, healthcare, manufacturing, agricultural, horticultural, and sporting applications — ideal for feed carts, seed trolleys, plant and nursery trolleys, and turf or oval equipment used by sporting clubs, schools, and councils.
Tyre Options: The PZN250X4-PS comes with pneumatic tyres as standard. Grey non-marking tyres and solid-fill options are also available—please contact the office for these alternatives.
Built strong, easy to service, and made for real-world conditions — the PZN250X4-PS keeps your gear rolling smoothly in the warehouse, workshop, nursery, or out on the oval.
