250X4LUG-SB - 120 kg 220 mm Steel Split Rim Ball Bearing Pneumatic Wheel
Shipping calculated at checkout.
Data Sheet PDF
250X4LUG-SB20 is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
250X4LUG-SB20 is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
250X4LUG-SB - 120 kg 220 mm Steel Split Rim Ball Bearing Pneumatic Wheel
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Underlined specification values indicate differences between product options.
Please confirm all specifications before ordering.
- SKU 250X4LUG-SB20
-
Capacity120 kg
- Wheel
-
Wheel DiameterØ220 mm
-
Tread Width45 mm
-
Wheel MaterialPowdercoated Steel
-
Rim Diameter4"
-
Tyre Width45 mm
-
Ply Count4 Ply
-
Tread ProfileLug
-
Valve TypeBent (TR87)
- Bearing & Bore
-
TypeFlanged Ball Bearing
-
Seal TypeShielded
-
Bore DiameterØ35 mm
-
Bore ToleranceUnground
-
Reduced DiameterØ20 mm
-
Flange Diameter38 mm
-
Flange Thickness1.8 mm
- Hub
-
Hub Width10 mm
-
Hub Width w/Reducer13.4 mm
-
Hub OffsetCentral

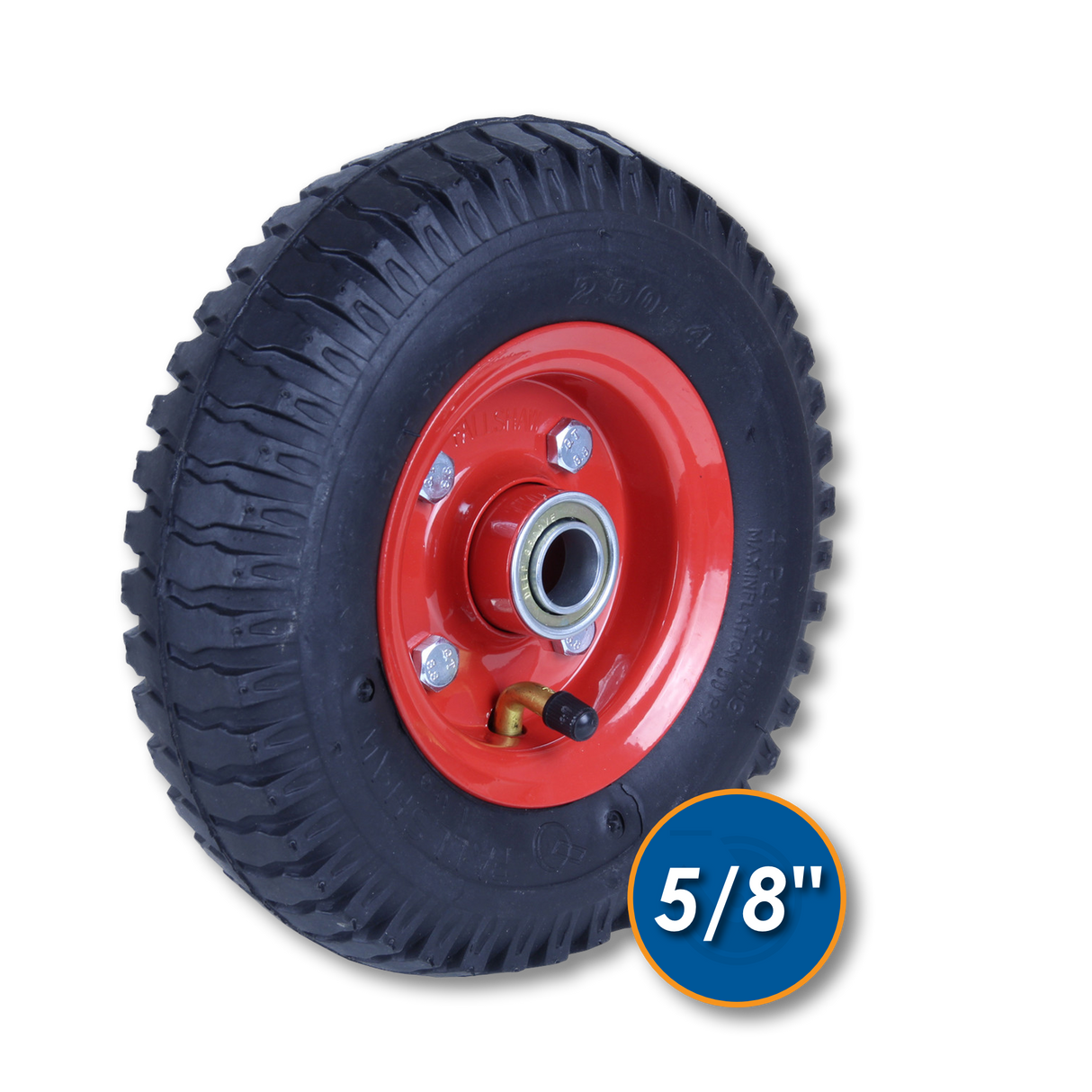

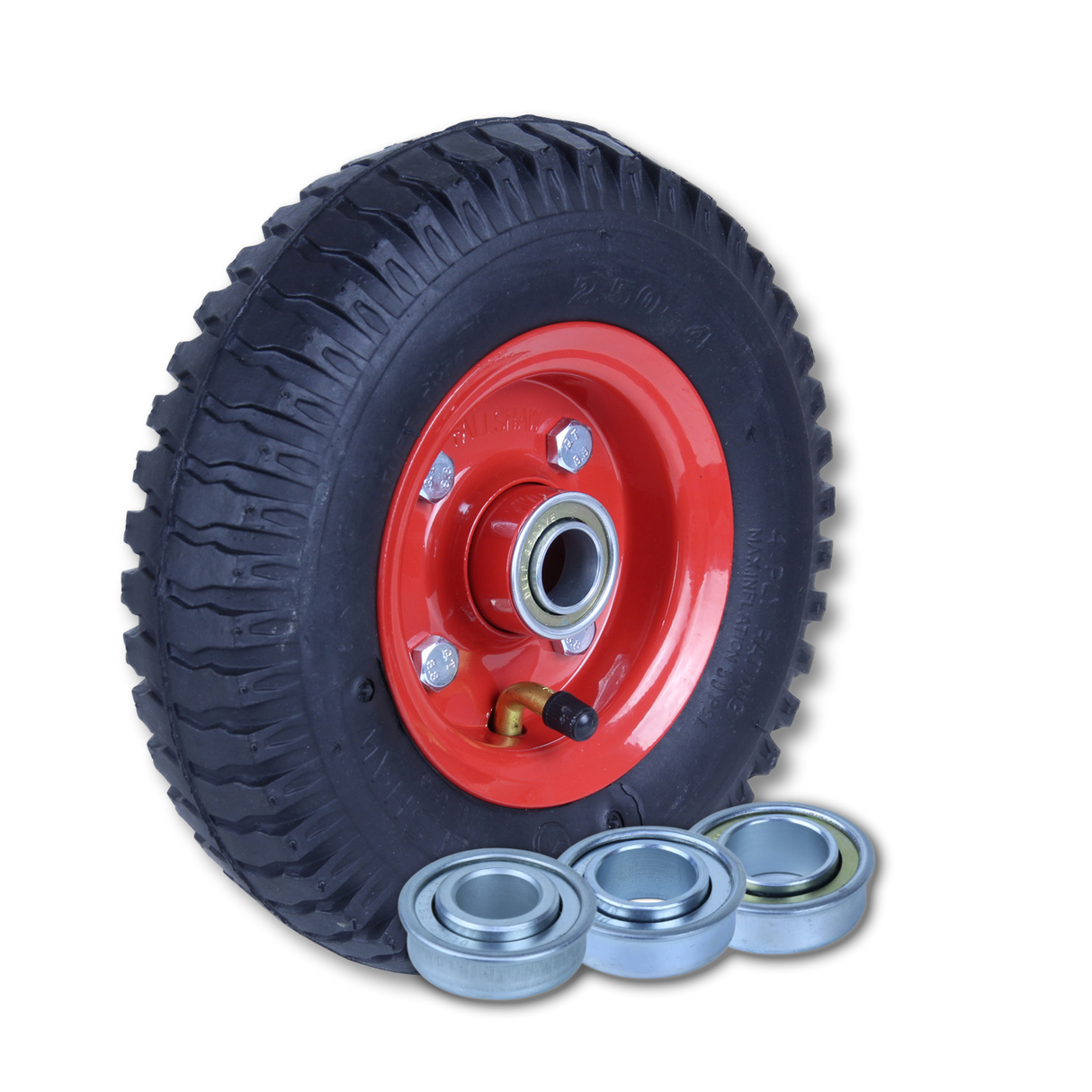

Heavy-duty 2.50-4 tubed pneumatic wheel with a black 4-ply lug tread tyre, unground ball bearings and red steel centre.
Rated to 120 kg, with a 220 mm wheel diameter, 45 mm tread width, 4" rim diameter and central 60 mm hub width.
Available with 20 mm, 3/4" and 5/8" bore diameters.
The two-piece split rim allows easier tyre and tube replacement.
Suitable for trolleys, carts, equipment and general materials handling applications.
Please confirm the bore diameter before purchasing.
