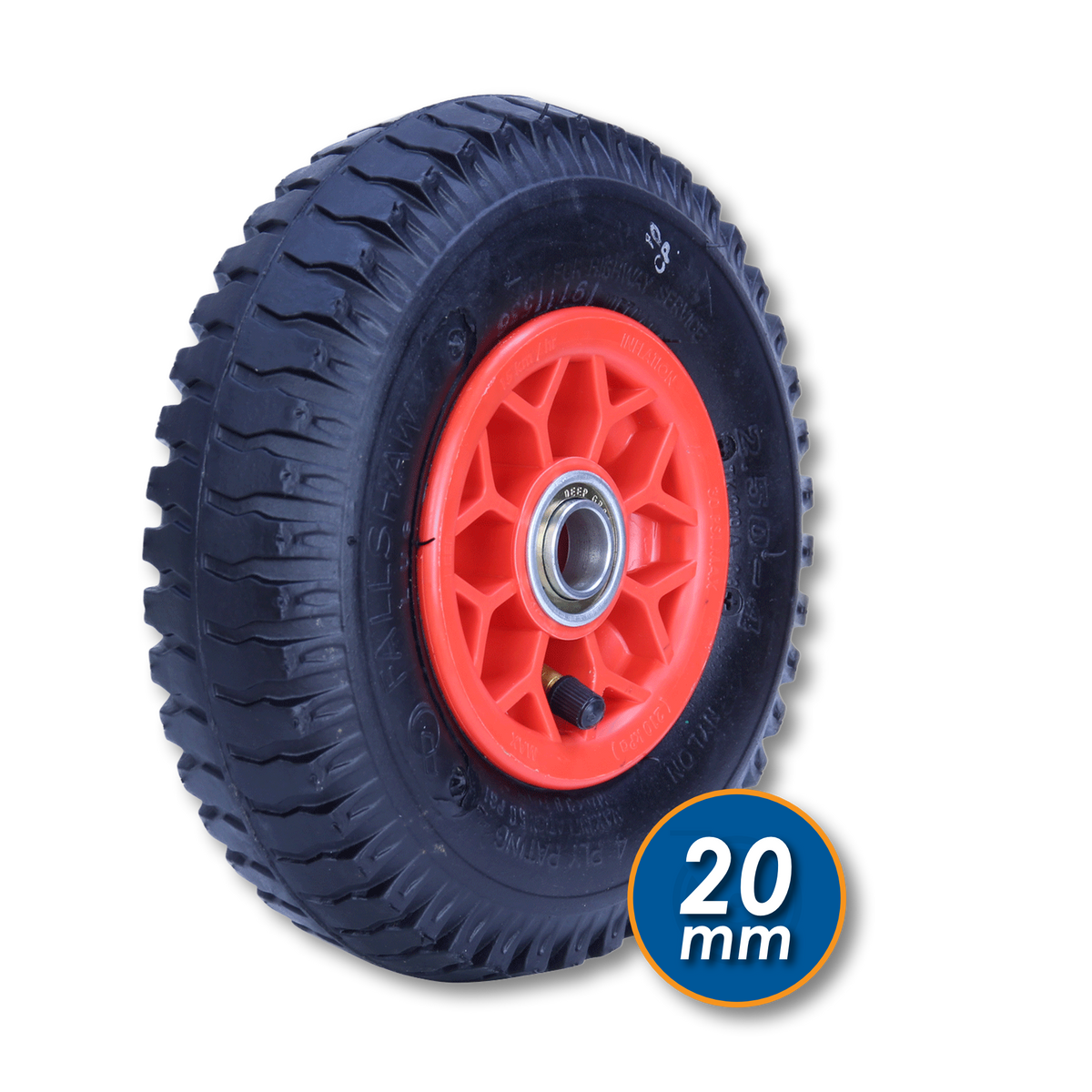

250X4LUG-PWB - 100 kg 220 mm Plastic Centre Ball Bearing Pneumatic Wheel
Shipping calculated at checkout.
250X4LUG-PWB - 100 kg 220 mm Plastic Centre Ball Bearing Pneumatic Wheel - 20mm Bearing is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
250X4LUG-PWB - 100 kg 220 mm Plastic Centre Ball Bearing Pneumatic Wheel - 20mm Bearing is backordered and will ship as soon as it is back in stock.
Product Description
Heavy-duty 2.50-4 tubed pneumatic wheel with a black 4-ply lug tread tyre, unground ball bearings and UV-stabilised red plastic centre.
Rated to 100 kg, with a 220 mm wheel diameter, 45 mm tread width, 4" rim diameter and central 60 mm hub width.

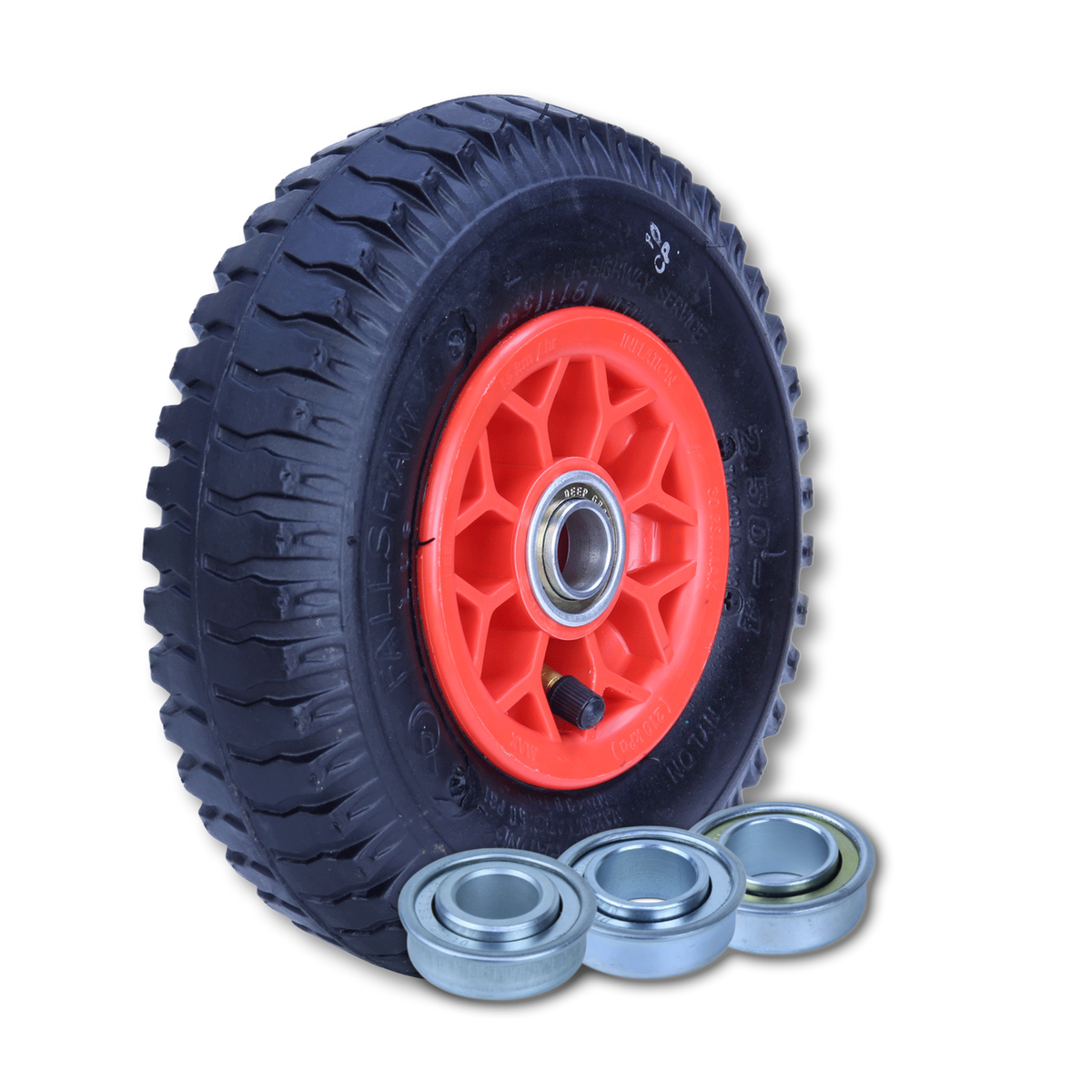

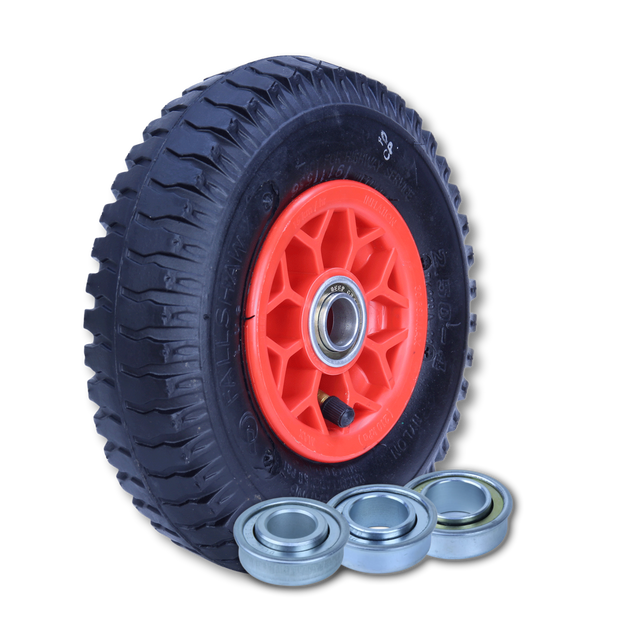

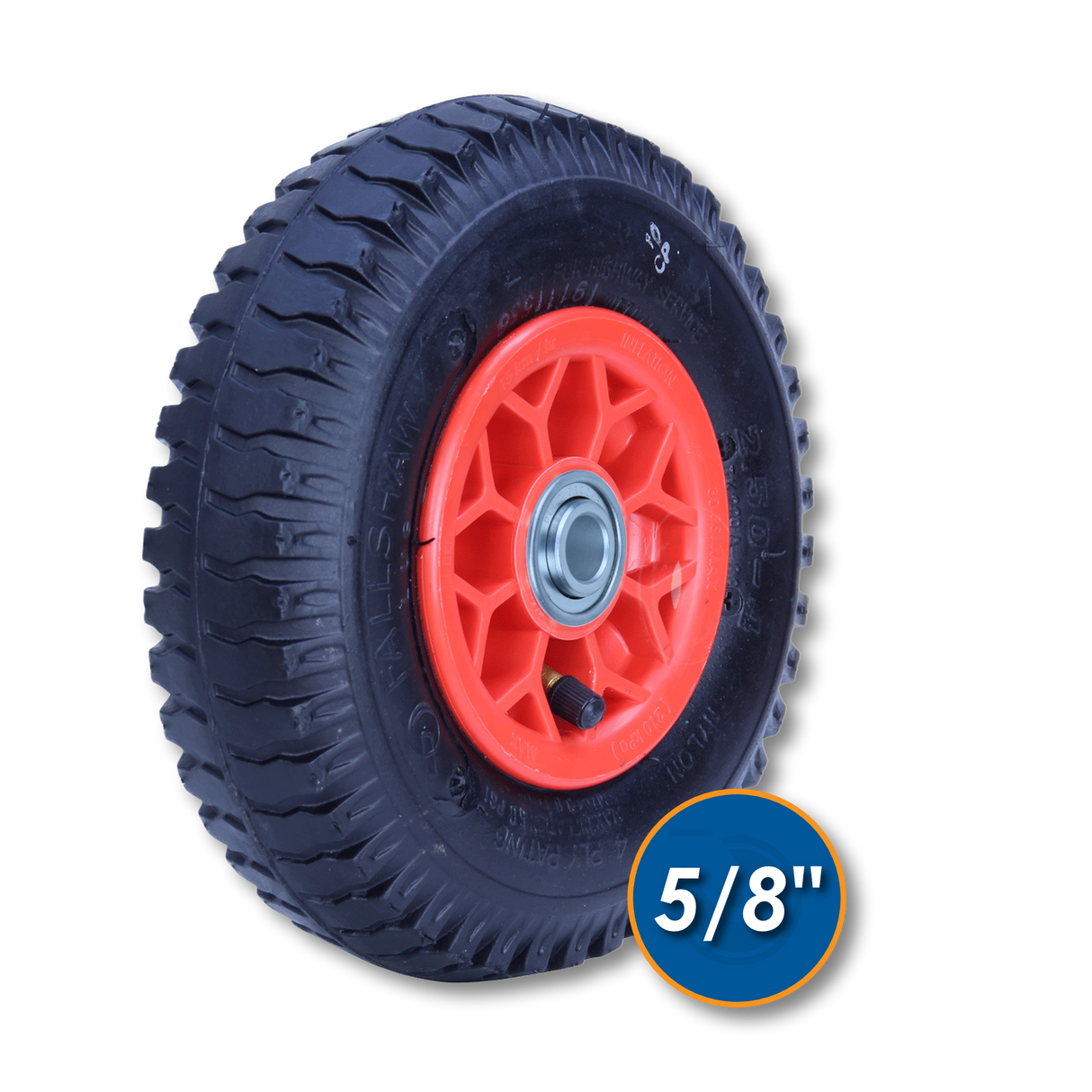

Available with 20 mm, 3/4" and 5/8" bore diameters.
Suitable for trolleys, carts, equipment and general materials handling applications where smoother rolling is preferred.
Please confirm the bore diameter before purchasing.
-
Maximum Capacity100 kg
-
Wheel Diameter220 mm
-
Tread Width45 mm
-
Tyre Width45 mm
-
Rim Diameter4"
-
Tread ProfileLug
-
Ply Count4 Ply
-
Wheel MaterialUV-Stabilised Plastic
-
Bore DiameterKey specification differs from other available variants 20 mm
-
Bearing TypeFlanged Ball Bearing
-
Bearing PrecisionUnground
-
Bearing SealShielded
-
Mount Diameter35 mm
-
Flange Diameter38 mm
-
Mount Thickness10 mm
-
Flange Thickness1.8 mm
-
Overall Thickness13.4 mm
-
Hub Width60 mm
-
Hub OffsetCentral
-
Bearing TypeUnground Ball Bearing




Data Sheet PDF
