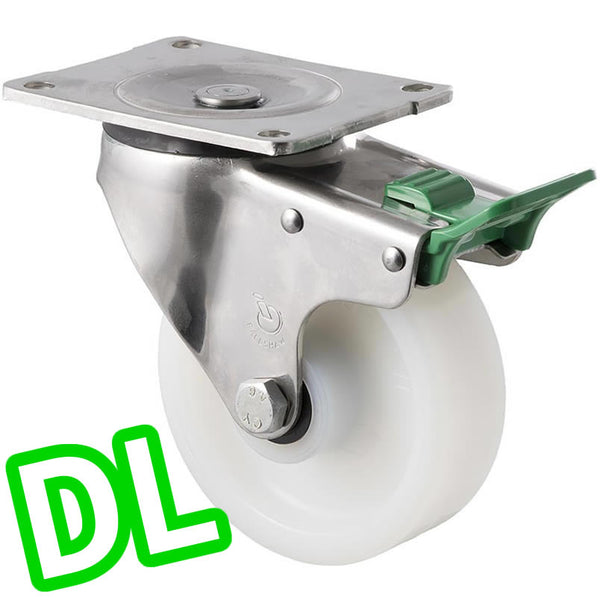

ONS125W/OSPDL 380 Kg Stainless Steel Swivel Plate Direction Lock Only 125mm White Nylon

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 380 Kg
  • -Brake Type- Direction Only

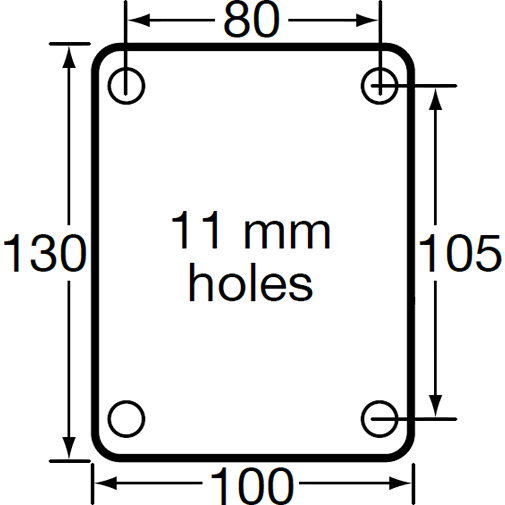

  • -Mounting Type- Plate
  • -Wheel Material- White Nylon
  • -Wheel Bearing Type- S/S Roller Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Stainless Steel
  • -Wheel Diameter X Tread Width- 125mm x 40mm
  • -Overall Height- 162mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 140mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavier industrial stainless steel white nylon castor. General use including food trolleys, wet areas, pharmaceutical and corrosive environments.

Related Options..

$130.50 (Incl. GST)

Make an enquiry about this product: ONS125W/OSPDL 380 Kg Stainless Steel Swivel Plate Direction Lock Only 125mm White Nylon
