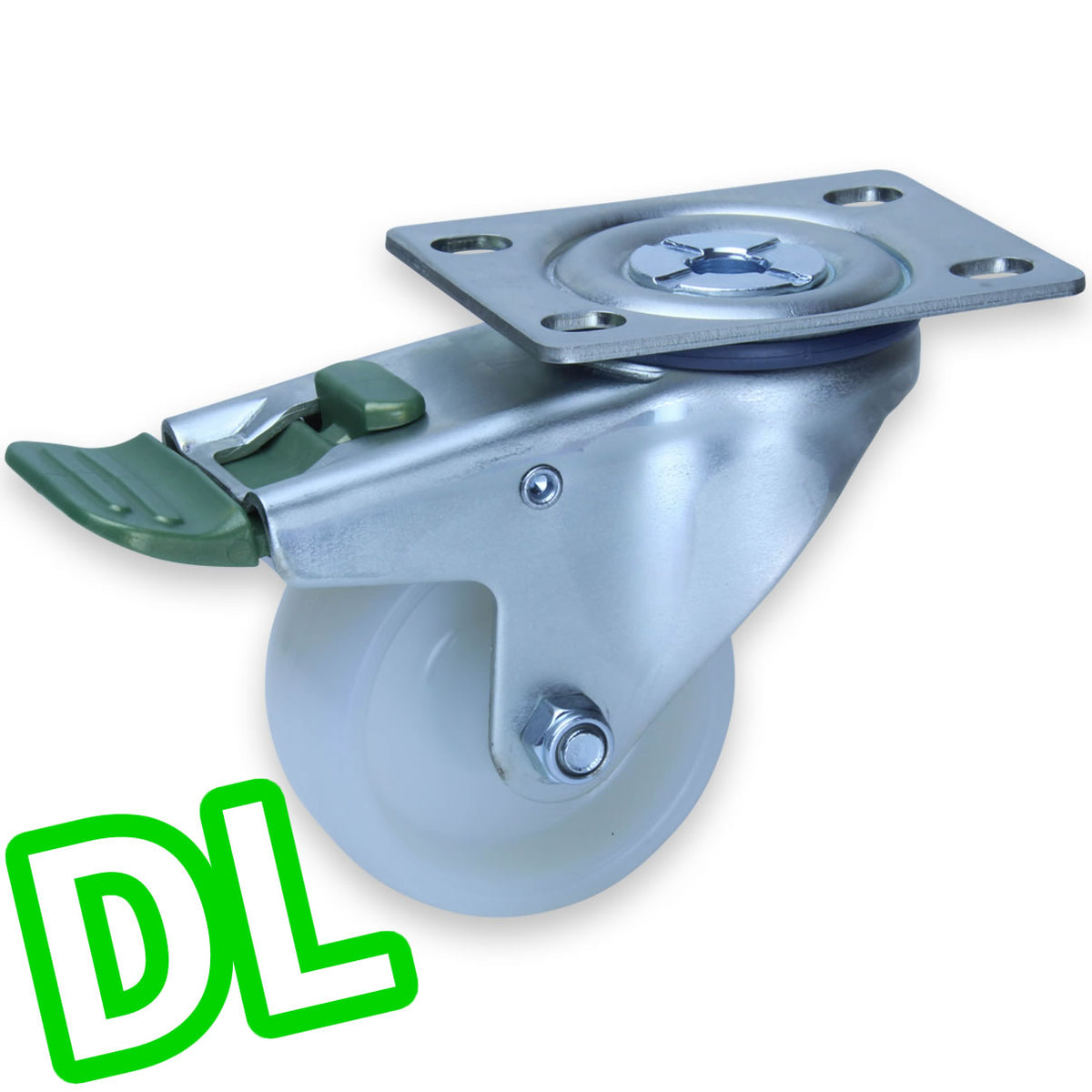

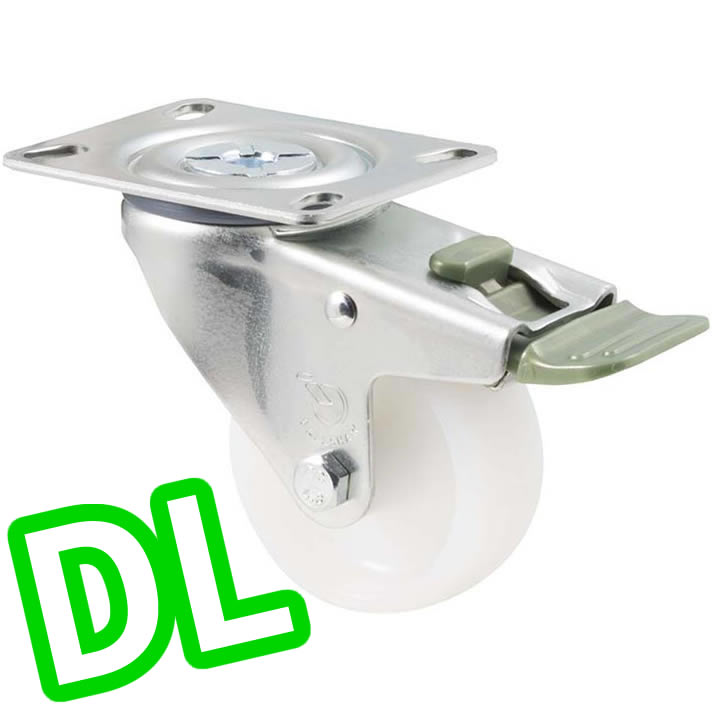

MNN75W/MZPDL - 150 kg Swivel Plate Direction Lock Only 75mm White Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MNN75W/MZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
MNN75W/MZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
MNN75W/MZPDL - 150 kg Swivel Plate Direction Lock Only 75mm White Nylon
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU MNN75W/MZPDL
-
Castor TypeSwivel
-
Capacity150 kg
-
Overall HeightKey specification differs from other available variants 106 mm
- Wheel
-
Wheel DiameterØ75 mm
-
Tread Width32 mm
-
Tread MaterialWhite Nylon
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypePlain
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 150 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: White Nylon
- Wheel Bearing Type: Plain
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 75mm x 32mm
- Overall Height: 106mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.
MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
