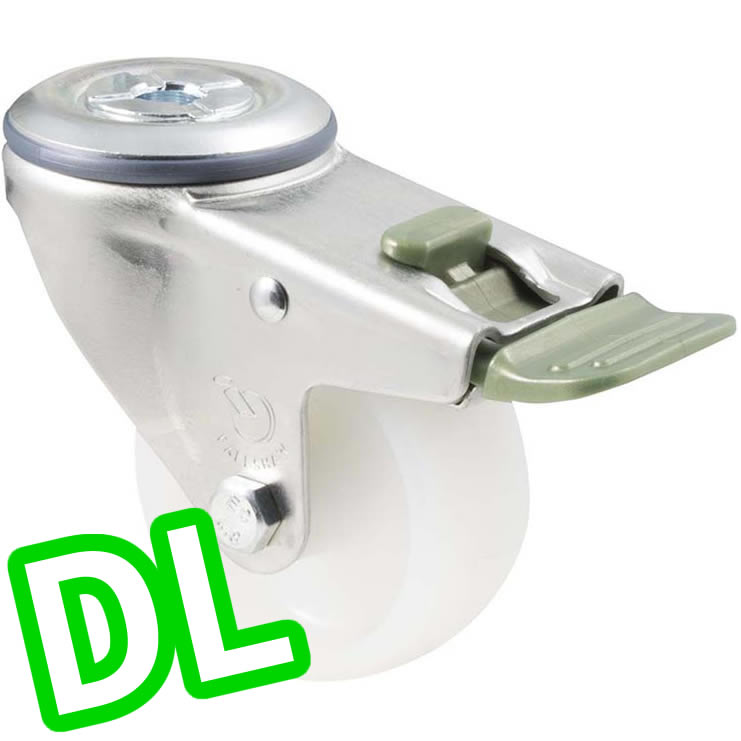

MNN75W/MZHDL - 150 kg Bolt-Hole Direction Lock Only 75mm White Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MNN75W/MZHDL - 150 kg Bolt-Hole Direction Lock Only 75mm White Nylon is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
MNN75W/MZHDL - 150 kg Bolt-Hole Direction Lock Only 75mm White Nylon is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Castor Type: Bolt-Hole
- Load Capacity: 150 kg
- Brake Type:Direction Only

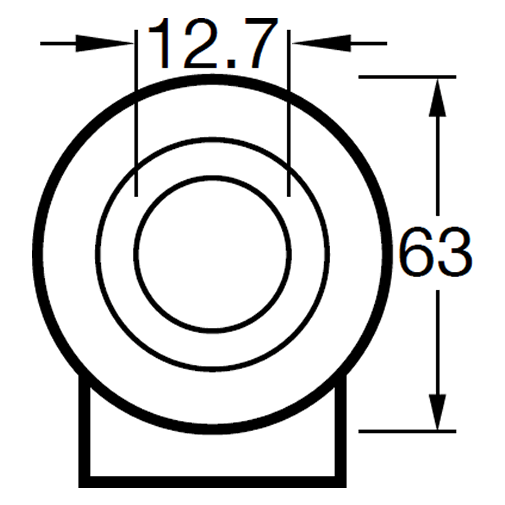

- Mounting Type: 12.7mm Bolt-Hole
- Wheel Material: White Nylon
- Wheel Bearing Type: Plain
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 75mm x 32mm
- Overall Height: 106mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial white nylon castor. General use including warehouse trolleys, engineering and furniture.
