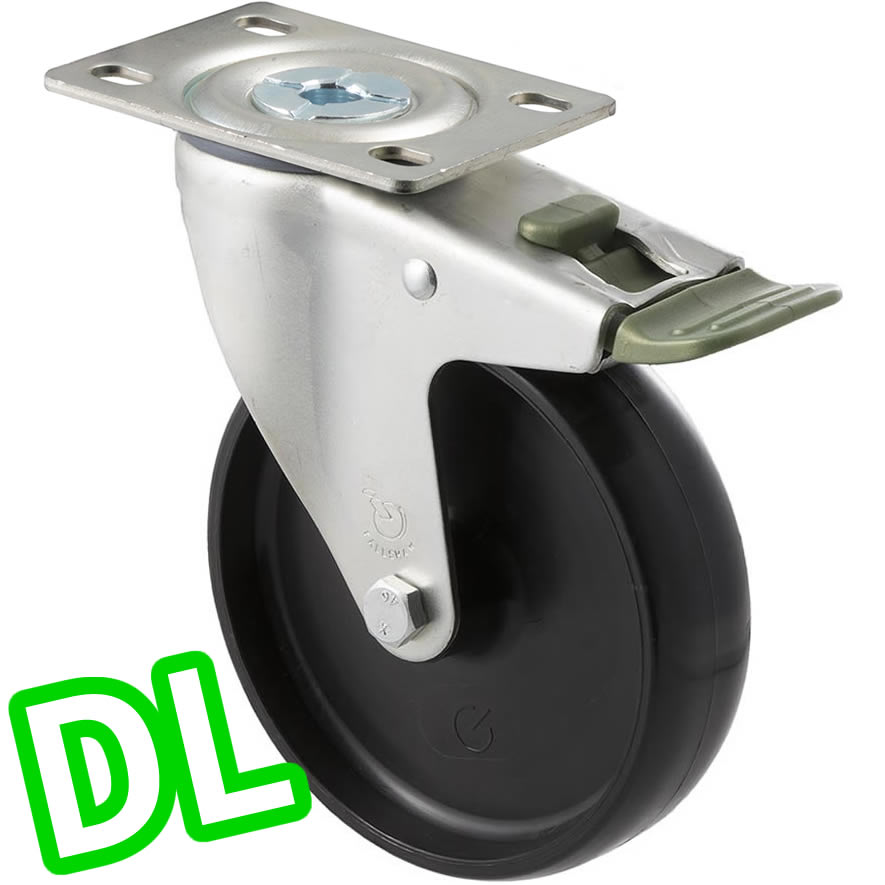

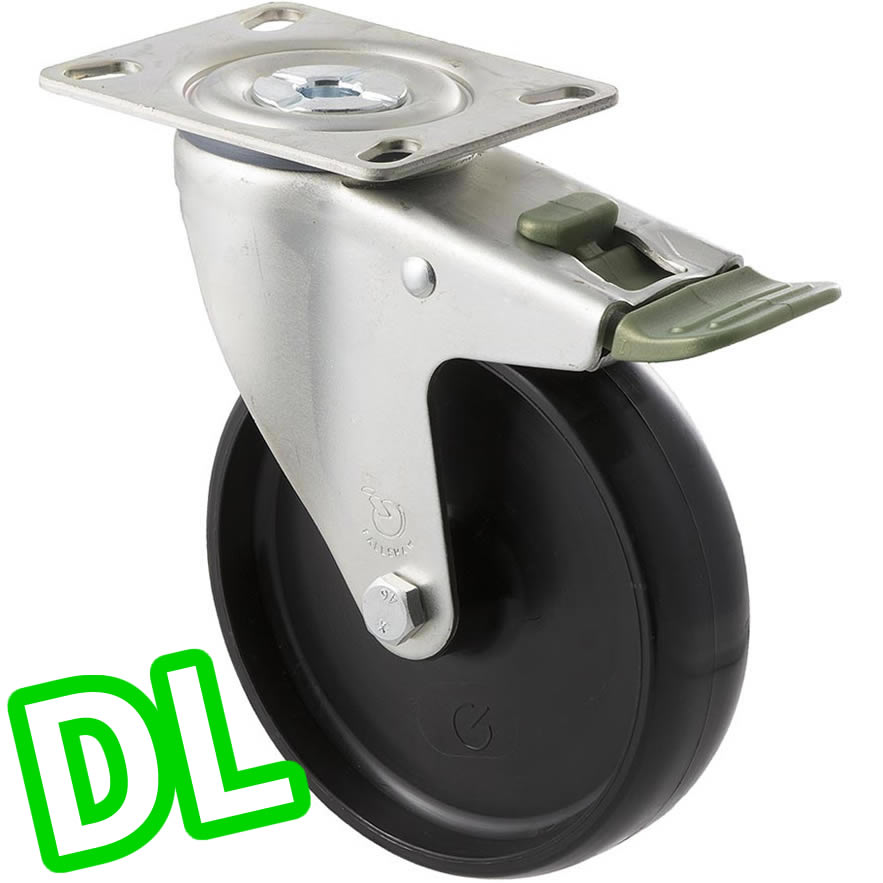

MNN125/MZPDL - 150 kg Swivel Plate Direction Lock Only 125mm Black Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MNN125/MZPDL - 150 kg Swivel Plate Direction Lock Only 125mm Black Nylon - ISO is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
MNN125/MZPDL - 150 kg Swivel Plate Direction Lock Only 125mm Black Nylon - ISO is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 150 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: Black Nylon
- Wheel Bearing Type: Plain
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 32mm
- Overall Height: 161mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.
Related Options..

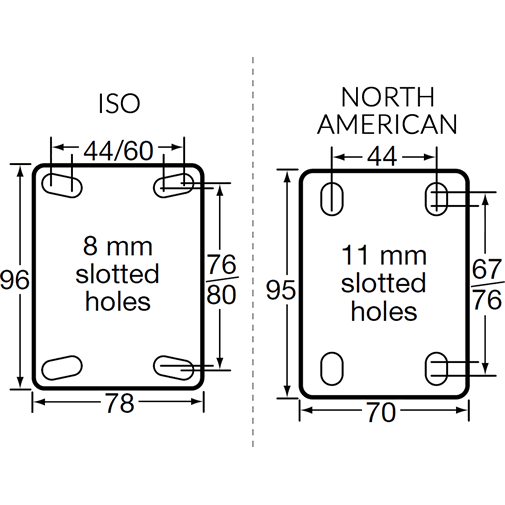

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
-
Castor Type
-
Frame Finish
-
Maximum Capacitykg
-
Wheel Diametermm
-
Tread Material
-
Tread Widthmm
-
Overall Heightmm
-
Mounting Type
-
Bearing Type
-
Axle Type
