Technical Specifications
- -Castor Type- Bolt-Hole
- -Load Capacity- 150 Kg
- -Brake Type- Direction Only

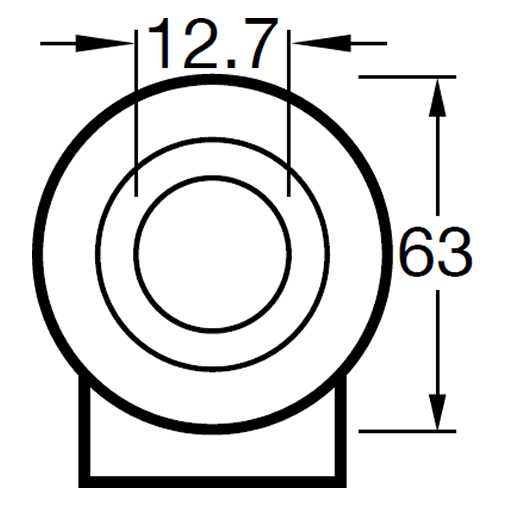

- -Mounting Type- 12.7mm Bolt-Hole
- -Wheel Material- Black Nylon
- -Wheel Bearing Type- Plain
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 100mm x 32mm
- -Overall Height- 135mm
- -Axle Type- Bolted
- -Swivel Radius (inc. brake if fitted)- 128mm

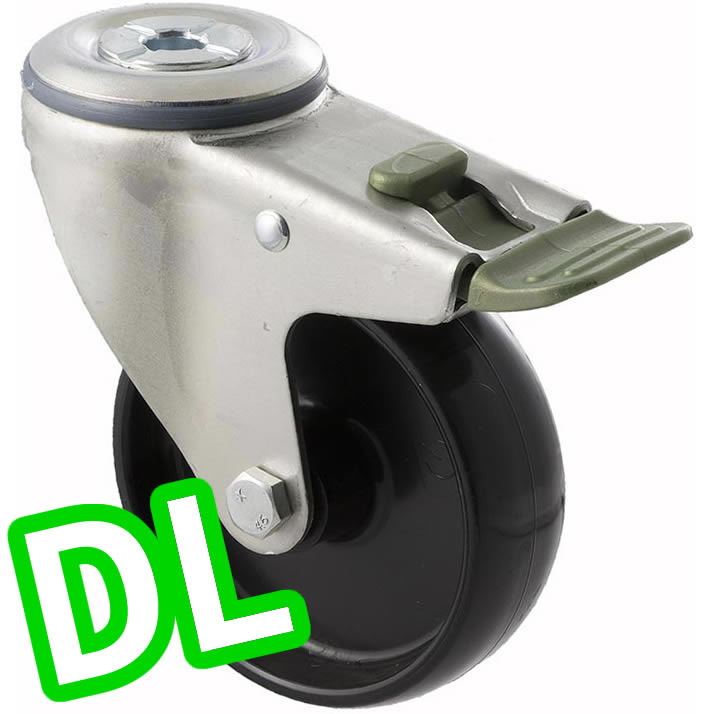

***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial black nylon castor. General use including warehouse trolleys, engineering and furniture.
