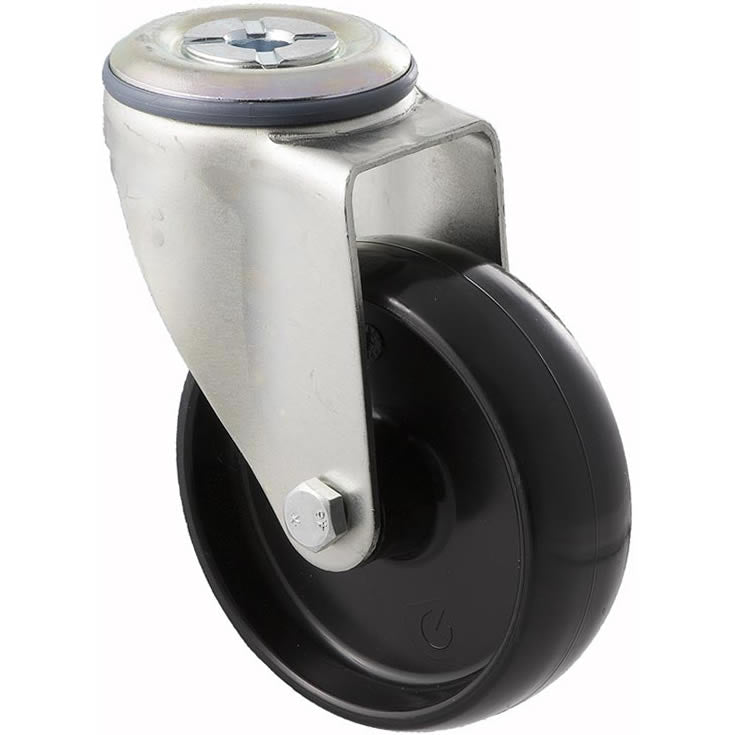

MNN100/MZH 150 Kg Zinc Castor Bolt-Hole Black Nylon 100mm x 32mm

1013 100 Kg 6mm Round Groove Wheel

$37.40 (Incl. GST)

Technical Specifications

• -Groove Type- 6mm Round Groove
• -Load Capacity- 100 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 13mm
• -Groove Width- 6mm
• -Groove Depth- 7mm
• -Hub Length (unsleeved)- 12mm
• -Hub Length (sleeved)- 17mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 12mm
• -Sleeve Type- Top Hat Pair (Included)
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? No

Machined steel rope groove pulley, suits 6mm wire rope.

Delivery or in-store pickup available.

1030O 300 Kg 20mm Round Groove Wheel

$71.95 (Incl. GST)

Technical Specifications

• -Groove Type- 20mm Round Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 21mm
• -Groove Depth- 9mm
• -Hub Length (unsleeved)- 22mm
• -Hub Length (sleeved)- 44mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 14mm
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? M14 x 70mm & Nut

Machined steel "O" round groove wheels, for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.

1030PCO 300 Kg 20mm Round Groove Sliding Gate Wheel

$80.95 (Incl. GST)

Technical Specifications

• -Groove Type- 20mm Round Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 22mm
• -Groove Depth- 9mm
• -Bearing Type- Ball Bearing
• -Bracket Width- 38mm
• -Bracket Length- 140mm
• -Mounting hole Centres- 108mm
• -Mounting hole size- 9mm
• -Overall Height- 106mm

Machined steel "O" groove wheel fitted to surface mount bracket . Suitable for use with sliding gate floor track or 20mm bar.

Delivery or in-store pickup available.

1030PCV 300 Kg V Groove Sliding Gate Wheel

$80.95 (Incl. GST)

Technical Specifications

• -Groove Type- V Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 22mm
• -Groove Depth- 9mm
• -Bearing Type- Ball Bearing
• -Bracket Width- 38mm
• -Bracket Length- 140mm
• -Mounting hole Centres- 108mm
• -Mounting hole size- 9mm
• -Overall Height- 106mm

Machined steel "V" groove wheel fitted to bracket. Suitable for running on folded angle tracks.

Delivery or in-store pickup available.

1030V 300 Kg V Groove Wheel

$71.95 (Incl. GST)

Technical Specifications

• -Groove Type- V Groove
• -Load Capacity- 300 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Steel
• -Finish- Zinc Plated
• -Tyre Material- Steel
• -Tread Width- 30mm
• -Groove Width- 21mm
• -Groove Depth- 9mm
• -Hub Length (unsleeved)- 24mm
• -Hub Length (sleeved)- 44mm
• -Bore Diameter (unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 14mm
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearing
• -Axle Bolt/Nut Supplied? M14 x 70mm & Nut

Machined steel "V" groove wheel, for use with folded angle tracks.

Delivery or in-store pickup available.

B-PATH100K-FK 200 Kg Zinc Castor Fixed P/U on Nylon 100mm x 32mm

$22.90 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 200 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 32mm
• -Overall Height- 125mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- N/A

Medium industrial polyurethane on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

B-POEV101K-SB-FK 150 Kg Zinc Castor Fixed Blue Rubber on Nylon 100mm x 35mm

$23.45 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 150 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Blue Rubber on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 100mm x 35mm
• -Overall Height- 126mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 100mm x 85mm
• -Mounting Plate Hole Centres- 80mm x 60mm
• -Mounting Plate Hole Diameter- 9mm
• -Swivel Radius (inc. brake if fitted)- N/A

Light industrial blue rubber on nylon castor. General use including warehouse trolleys, engineering, transport and staging.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BP10050B 150 Kg Blue Rubber Wheel

$23.25 (Incl. GST)

Technical Specifications

• -Load Capacity- 150 Kg
• -Wheel Diameter- 100mm
• -Wheel Material- Polypropylene
• -Tyre Material- Blue Rubber
• -Tread Width- 35mm
• -Hub Length (unsleeved)- 56mm
• -Hub Length (sleeved)- 62mm
• -Bore Diameter (Unsleeved)- 17mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Spacer Tube
• -Bearing Type- Ball Bearings

Heavy Industrial blue rubber wheel only (fitted with ball bearings - and supplied with 2 top hat spacers)

Delivery or in-store pickup available.

BPUQ100BH 130 Kg Black Series Castor Swivel Bolt Hole P/U on Nylon 100mm x 30mm

$19.50 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- N/A
• -Mounting Type- 13mm Bolt Hole
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- 13mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100BHTB 130 Kg Black Series Castor Swivel Bolt Hole Total Brake P/U on Nylon 100mm x 30mm

$21.80 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- Total Brake
• -Mounting Type- 13mm Bolt Hole
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- N/A
• -Mounting Plate Hole Centres- N/A
• -Mounting Plate Hole Diameter- 13mm
• -Swivel Radius (inc. brake if fitted)- 111mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100F 130 Kg Black Series Castor Fixed Plate P/U on Nylon 100mm x 30mm

$15.60 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BPUQ100S 130 Kg Black Series Castor Swivel Plate P/U on Nylon 100mm x 30mm

$19.50 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 130 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Nylon
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- Yes
• -Frame Finish- Black Powder Coat
• -Wheel Diameter X Tread Width- 100mm x 30mm
• -Overall Height- 130mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 95mm x 65mm
• -Mounting Plate Hole Centres- 45mm x 75/78mm
• -Mounting Plate Hole Diameter- 8.5mm
• -Swivel Radius (inc. brake if fitted)- 87mm

Light industrial decorative castor with a black powder coated finish, wheel is non scratching black polyurethane. Suitable applications include furniture, displays, shop fittings etc.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.
