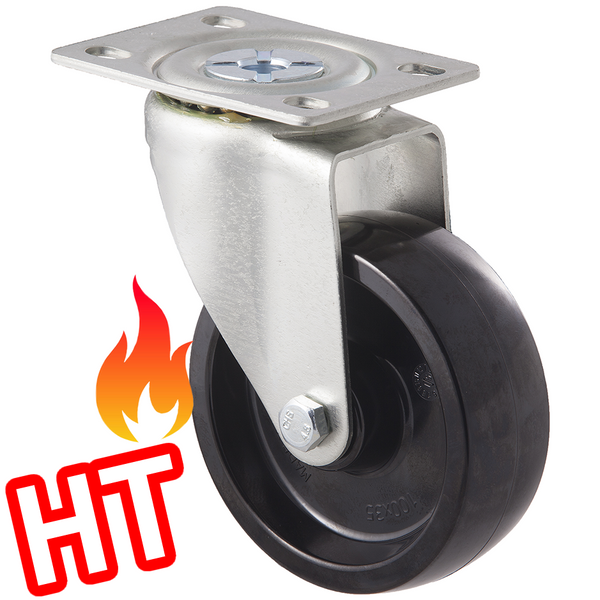

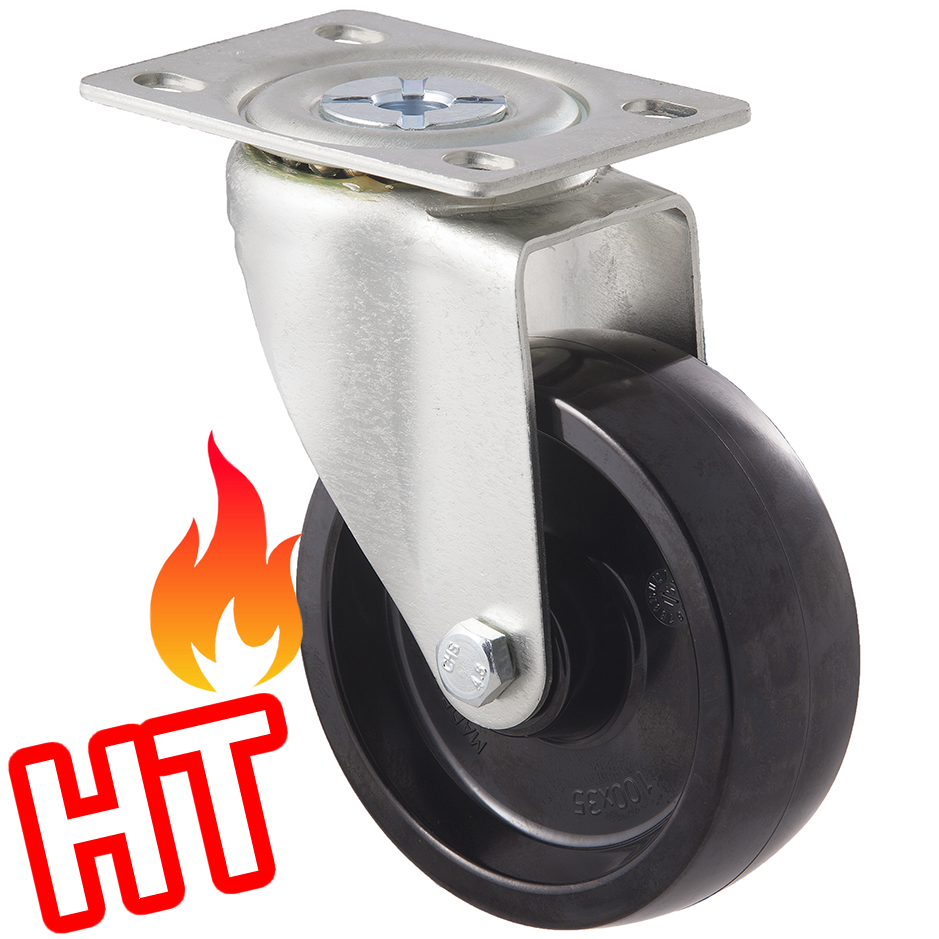

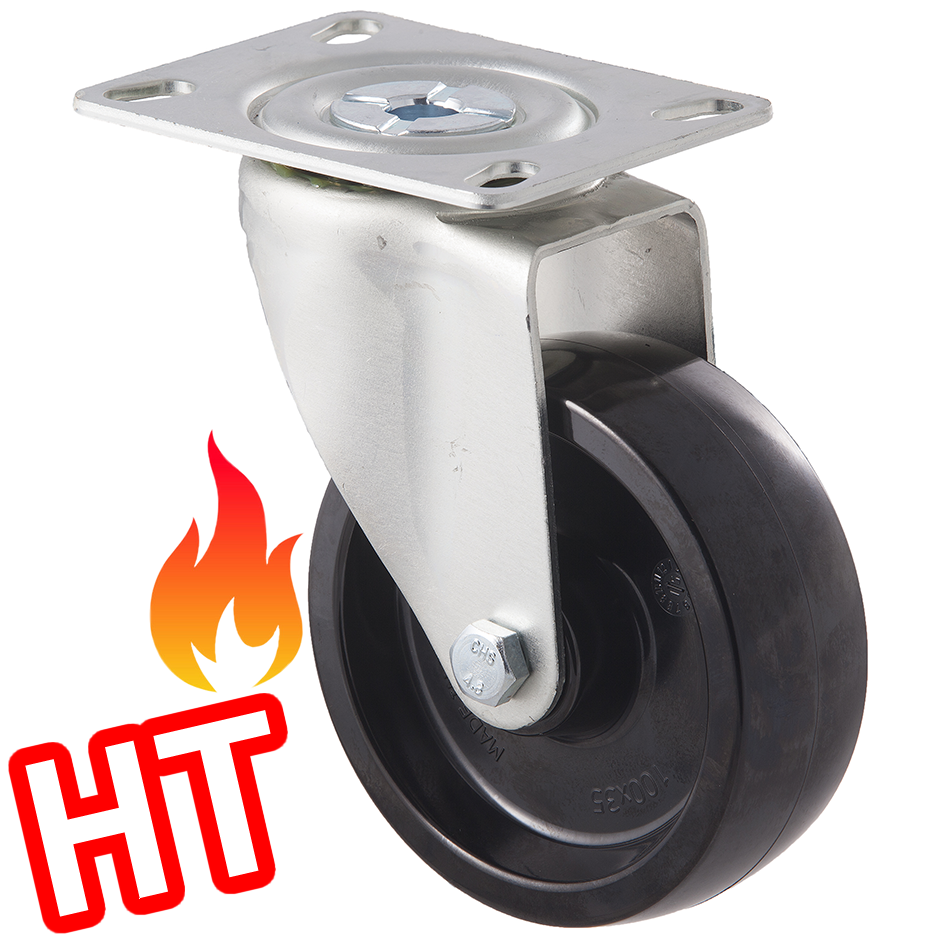

MKT100/MZPHT 125 Kg HIGH TEMP Swivel Plate 100mm Pehnolic Resin

Description

Technical Specifications - HIGH TEMP!

  • -Castor Type- Swivel
  • -Load Capacity-
    • 125 Kg @ 100°C
    • 100 Kg @ 250°C
    • 40 Kg @ 300°C
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Phenolic
  • -Wheel Bearing Type- Teflon Bush
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 35mm
  • -Overall Height- 135mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial high/low temp castor. General use including oven racks, powder coating trolleys and freezer trolleys.

Related Options..

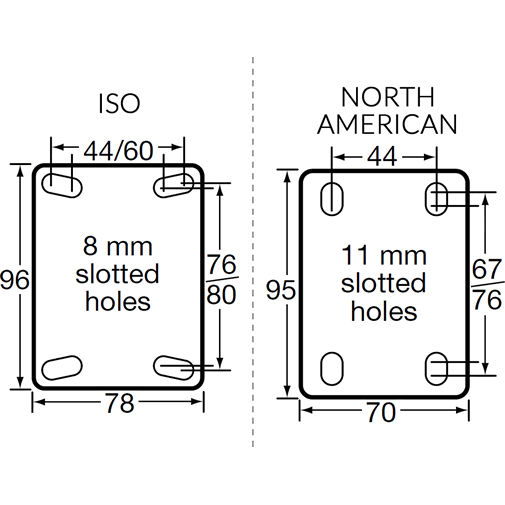

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option
$48.35 (Incl. GST)
